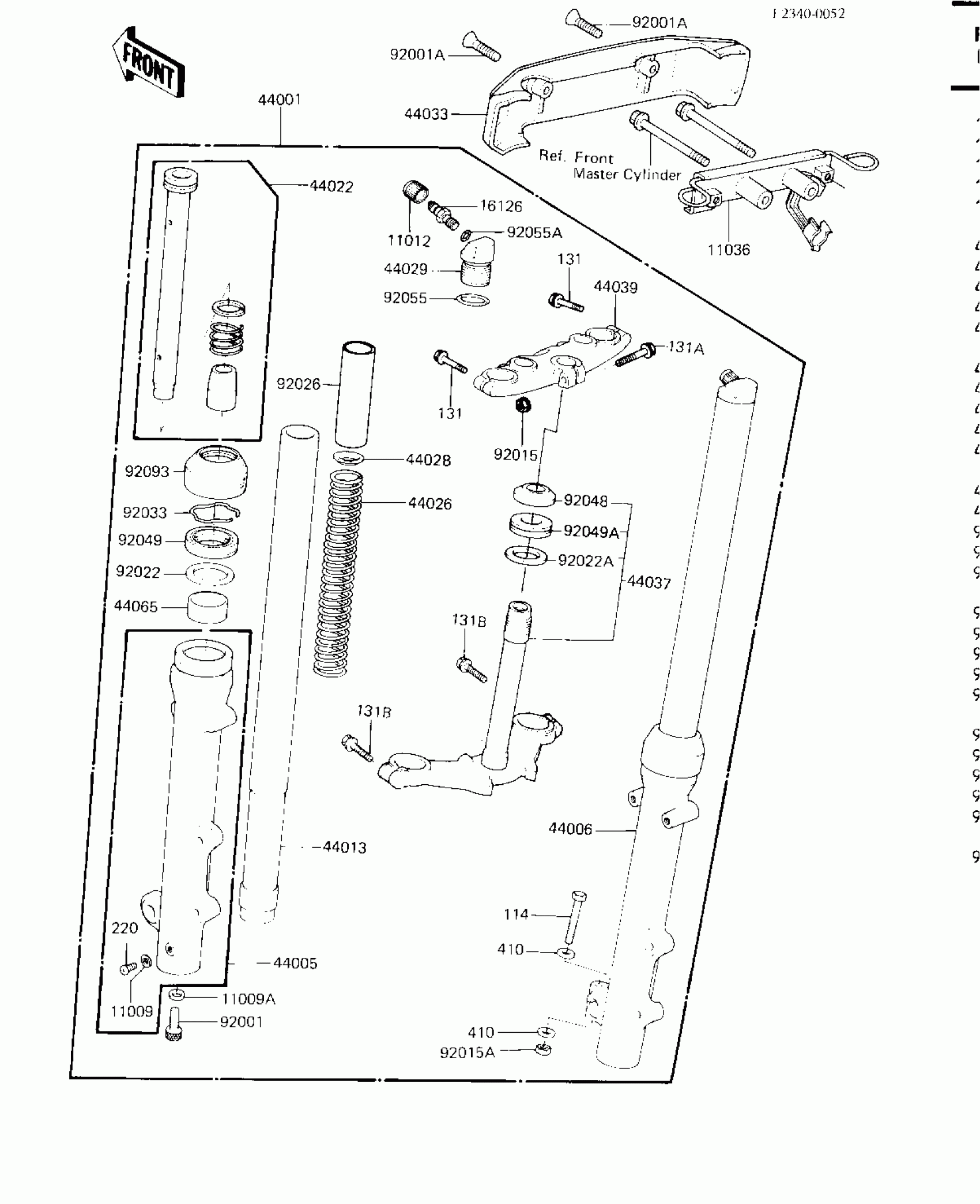

Kawasaki CSR Twin FRONT FORK Diagram
#
11009
GASKET,FORK DRAIN PLUG
44045-002
$5.18
11009A
GASKET
44045-057
$4.86
11012
CAP,AIR VALVE
11012-1241
$18.24
11036
BRACKET-A
11036-1253
Unavailable
16126
VALVE,AIR
16126-1052
$35.06
44001
FORK-FRONT
44001-1286
$1,013.23
44005
TUBE,LH,FORK OUTER
44005-1078
$286.56
44006
TUBE,RH,FORK OUTER
44006-1078
$226.45
44013
PIPE-FORK INNER
44013-1072
$281.84
44022
CYLINDER-FORK
44022-1066
$91.78
44026
SPRING-FRONT FORK
44026-1122
$44.65
44028
GUIDE,FORK SPRING
44028-033
Unavailable
44029
SEAT-FORK SPRING
44029-1029
$57.05
44033
COVER,FORK
44033-1054
$73.87
44037
STEM,STEERING
44037-1050
$412.16
44039
HOLDER-FORK UPPER
44039-1047
$178.48
44065
BUSHING-FRONT FORK
44065-1016
$26.16
92001
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
92001A
SCREW-CSK-RD-CROS
222C0518
$4.67
92015
NUT,FLANGED,8MM
92015-1022
$0.48
92015A
NUT,LOCK,8MM
92015-1124
$5.42
92022
WASHER,FRONT FORK
92022-1275
$7.34
92022A
WASHER,30.5X50X0.6
92022-231
$4.69
92026
SPACER,FORK SPRING
92026-1012
Unavailable
92033
RING-SNAP,FORK OIL
92033-1100
$14.94
92048
RACE,STEERING STEM BEARING
92047-012
$14.60
92049
SEAL-OIL,FRONT FORK
92049-1101
$28.82
92049A
SEAL-OIL,STEERING STEM
92056-003
$8.86
92055
RING-O,FORK TOP
92055-1012
$8.50
92055A
"0" RING,AIR VALVE
92055-1094
$1.28
92093
DUST SHIELD,FORK
92093-1037
$25.31
114
BOLT,HEX HEAD,8X55
114G0855
Unavailable
131
BOLT-FLANGED,8X45
131G0845
$1.58
131A
BOLT-FLANGED,8X55
130G0855
Unavailable
131B
BOLT-FLANGED,10X40
131G1040
$9.04
220
SCREW PAN HEAD 4X8
220B0408
$0.67
410
WASHER PLAIN 8MM
410B0800
$0.93
