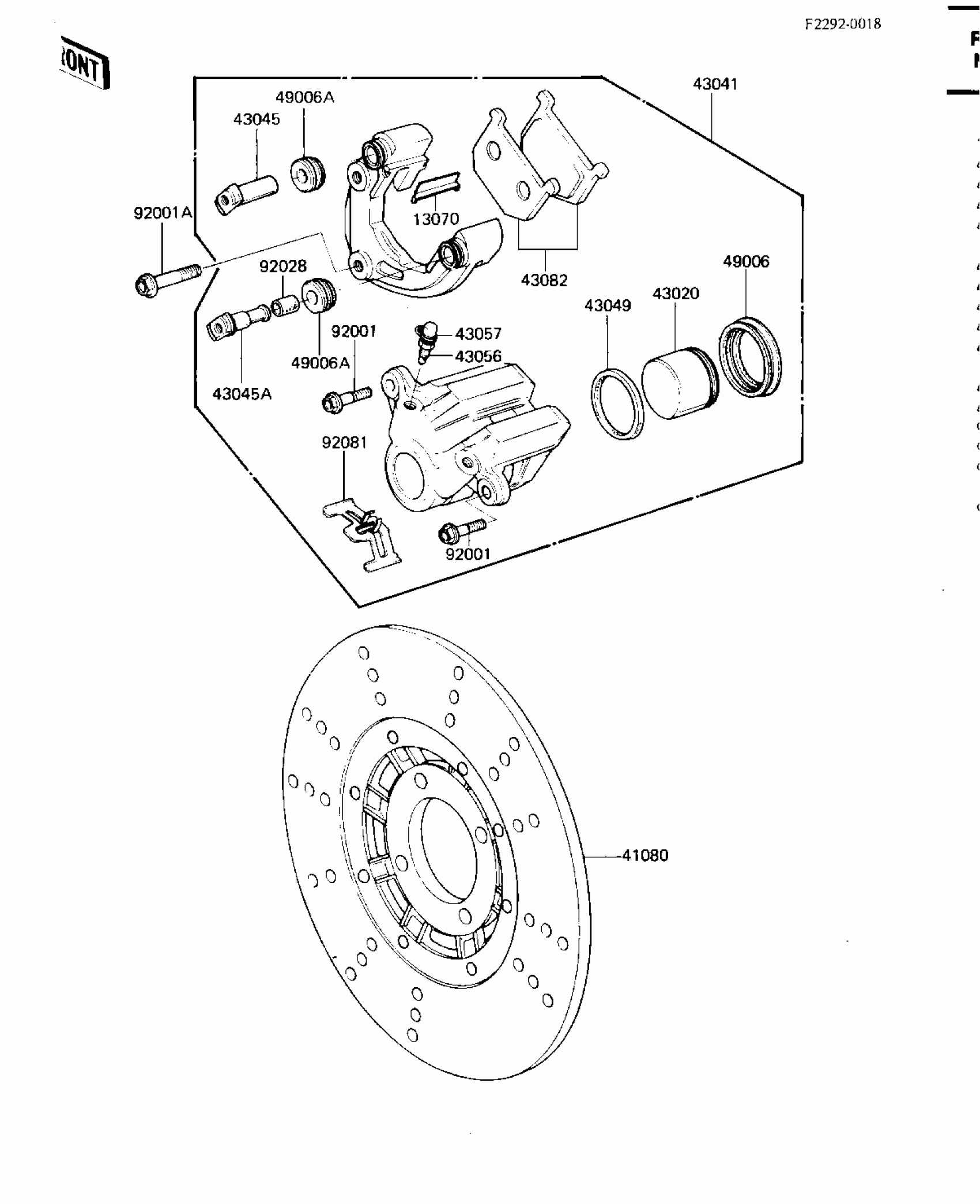

Kawasaki CSR Twin FRONT BRAKE Diagram

Description

Price

13070

GUIDE,PAD

13070-1026

$10.11

41080

DISK

41080-1042

$365.02

43020

PISTON-COMP-BRAKE

43020-1096

Unavailable

43041

CALIPER-ASSY

43041-1059

$324.80

43045

SHAFT-CALIPER

43045-1007

$23.19

43045A

SHAFT-CALIPER

43045-1008

$23.19

43049

PACKING,PISTON SEAL

43049-002

$13.90

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1022

$75.05

49006

BOOT,PISTON

49006-1043

$13.85

49006A

BOOT,SHAFT

49006-1044

$8.68

92001

BOLT,FLANGED,8X25,BLACK

92001-1510

$8.76

92001A

BOLT,FLANGED,10X47

92001-1354

Unavailable

92028

BUSHING,7.8X11X15.7

92028-1090

$8.05

92081

SPRING,PAD

92081-1229

$20.97
