Description

Price

11012

CAP,FOOTRESTBAR

92102-010

$8.49

34003

HOLDER,REAR FOOTREST

34003-1025

$34.78

34003A

HOLDER-STEP

34003-1120

$50.65

34003B

HOLDER-STEP

34003-1121

$57.52

34028

STEP,RR FOOTREST,L.H

34028-1024

$90.66

34028A

STEP,RR FOOTREST,R.H

34028-1025

$90.66

34028B

STEP-ASSY,FR,LH

34027-1106

Unavailable

34028C

STEP-ASSY,FR,RH

34027-1107

Unavailable

92001

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

92004

STUD

92004-067

Unavailable

92015

NUT,CAP,LOCK,8MM

92015-1133

$8.84

92015A

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,22.5X30X2.6

92022-181

Unavailable

92022A

WASHER,25X36X2.3

92022-250

$5.00

92043

PIN,6X28

92043-1464

$8.10

92043A

PIN,8X35.5

92043-115

$9.51

92075

DAMPER RUBBER,FOOTRST

92075-140

$11.03

315

NUT-HEX-FINE,10MM

315B1000

$0.58

550

PIN-COTTER,2.0X12

550D2012

$1.11

550A

PIN-COTTER,2.5X15

550D2515

$0.47

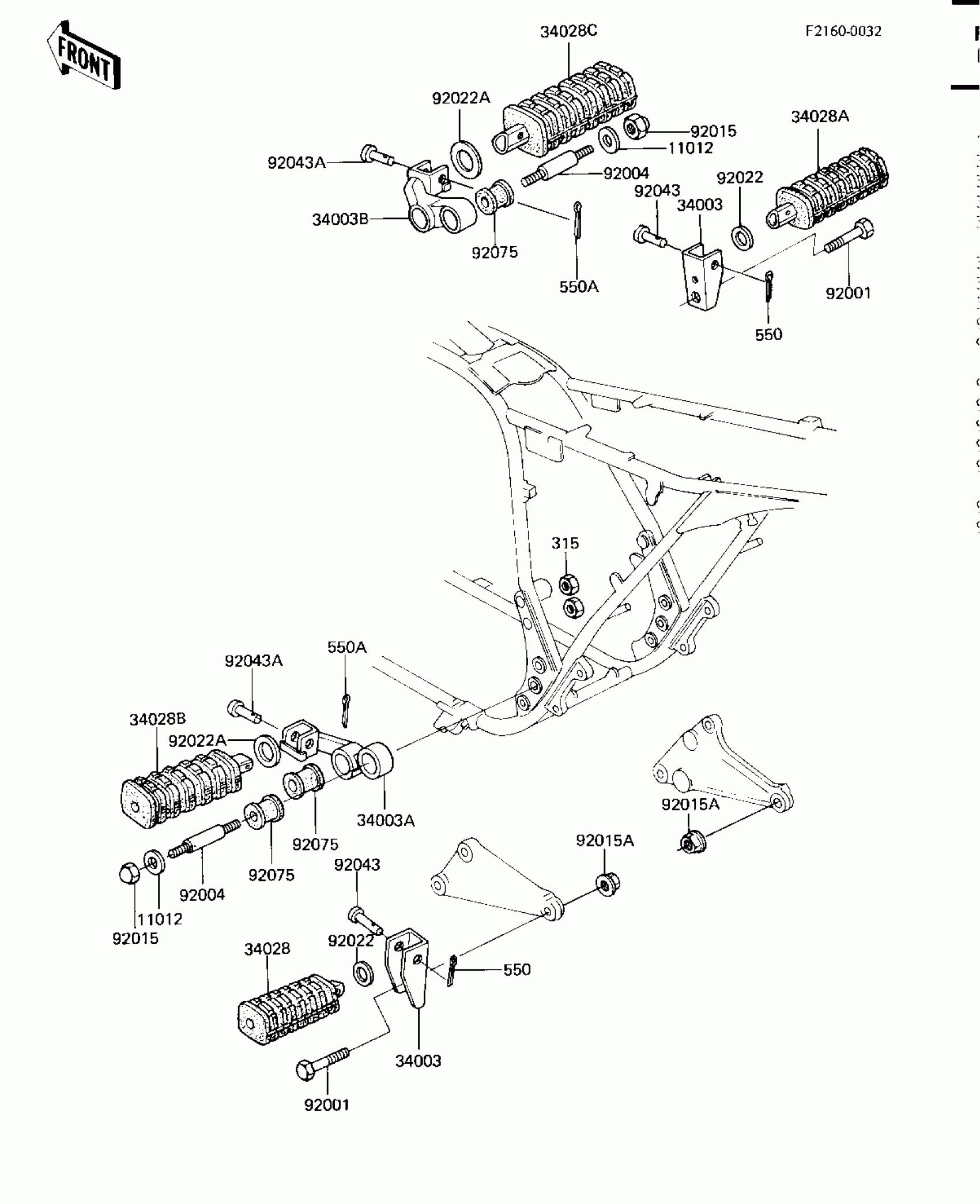

Kawasaki CSR Twin FOOTRESTS Diagram

CAP,FOOTRESTBAR

HOLDER,REAR FOOTREST

HOLDER-STEP

HOLDER-STEP

STEP,RR FOOTREST,L.H

STEP,RR FOOTREST,R.H

STEP-ASSY,FR,LH

STEP-ASSY,FR,RH

BOLT,HEX HEAD 10X35

STUD

NUT,CAP,LOCK,8MM

NUT,FLANGED,10MM

WASHER,22.5X30X2.6

WASHER,25X36X2.3

PIN,6X28

PIN,8X35.5

DAMPER RUBBER,FOOTRST

NUT-HEX-FINE,10MM

PIN-COTTER,2.0X12

PIN-COTTER,2.5X15
