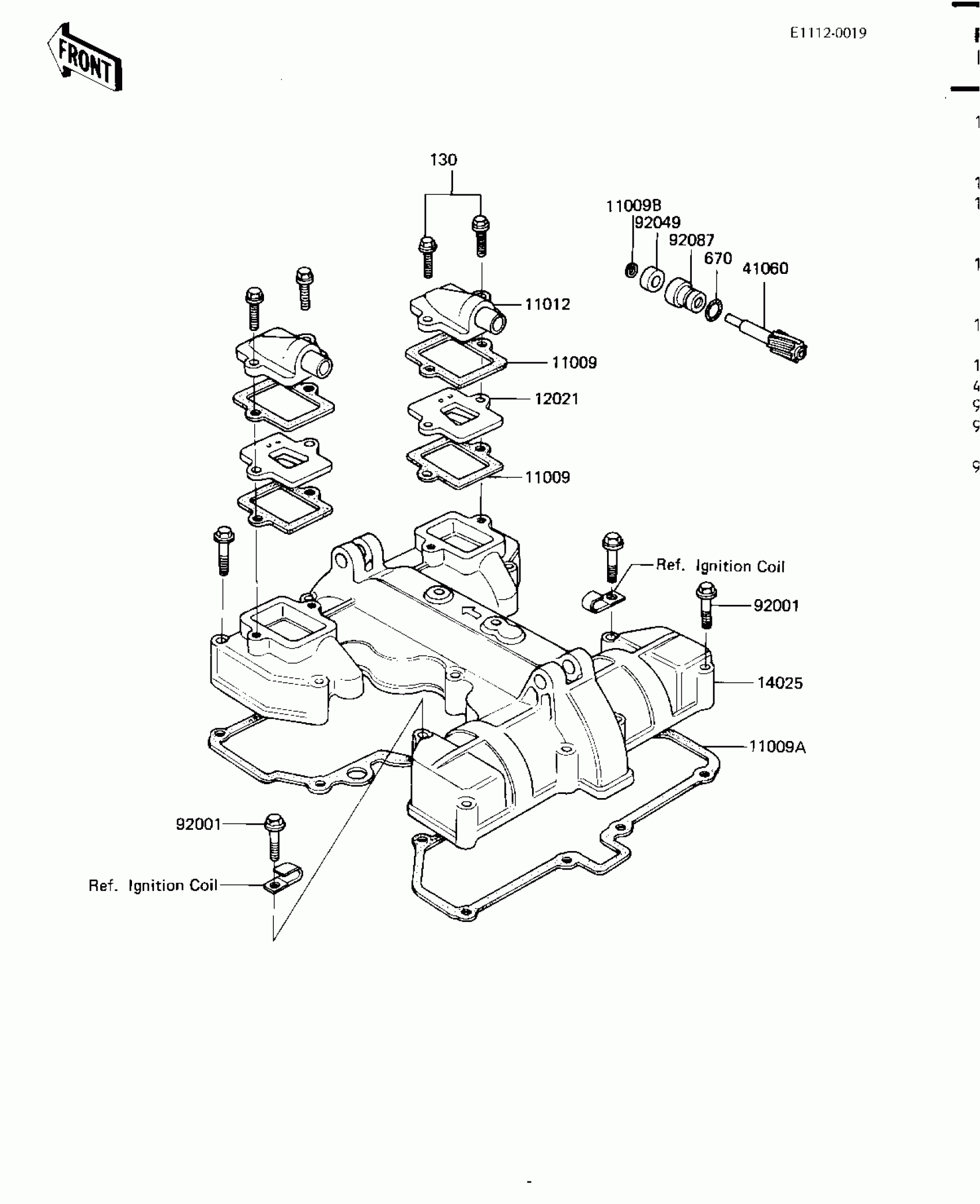

Kawasaki CSR Twin CYLINDER HEAD COVER Diagram

Description

Price

11009

GASKET,REED VALVE

11009-1879

$6.89

11009A

GASKET,CYLINDER HEAD

11009-1247

Unavailable

11009B

GASKET,TACHOMETER GEAR

92065-103

$4.07

11012

CAP,REED VALVE

11012-5003

Unavailable

12021

VALVE-ASSY-REED

12021-1011

$71.48

14025

COVER

14025-1333

Unavailable

41060

GEAR,TACHOMETER

13223-013

Unavailable

92001

BOLT,FLANGED,6X45

92003-092

$7.58

92049

SEAL-OIL

92050-075

$11.39

92087

GUIDE,TACHOMETER GEAR

92087-009

Unavailable

130

BOLT-FLANGED,6X20

130G0620

$1.69

670

O RING,9.8X1.9

670B1510

$4.31
