1982 Kawasaki CSR Twin Carburetor Assy Diagram

← All diagrams

Find the part on the Carburetor Assy diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

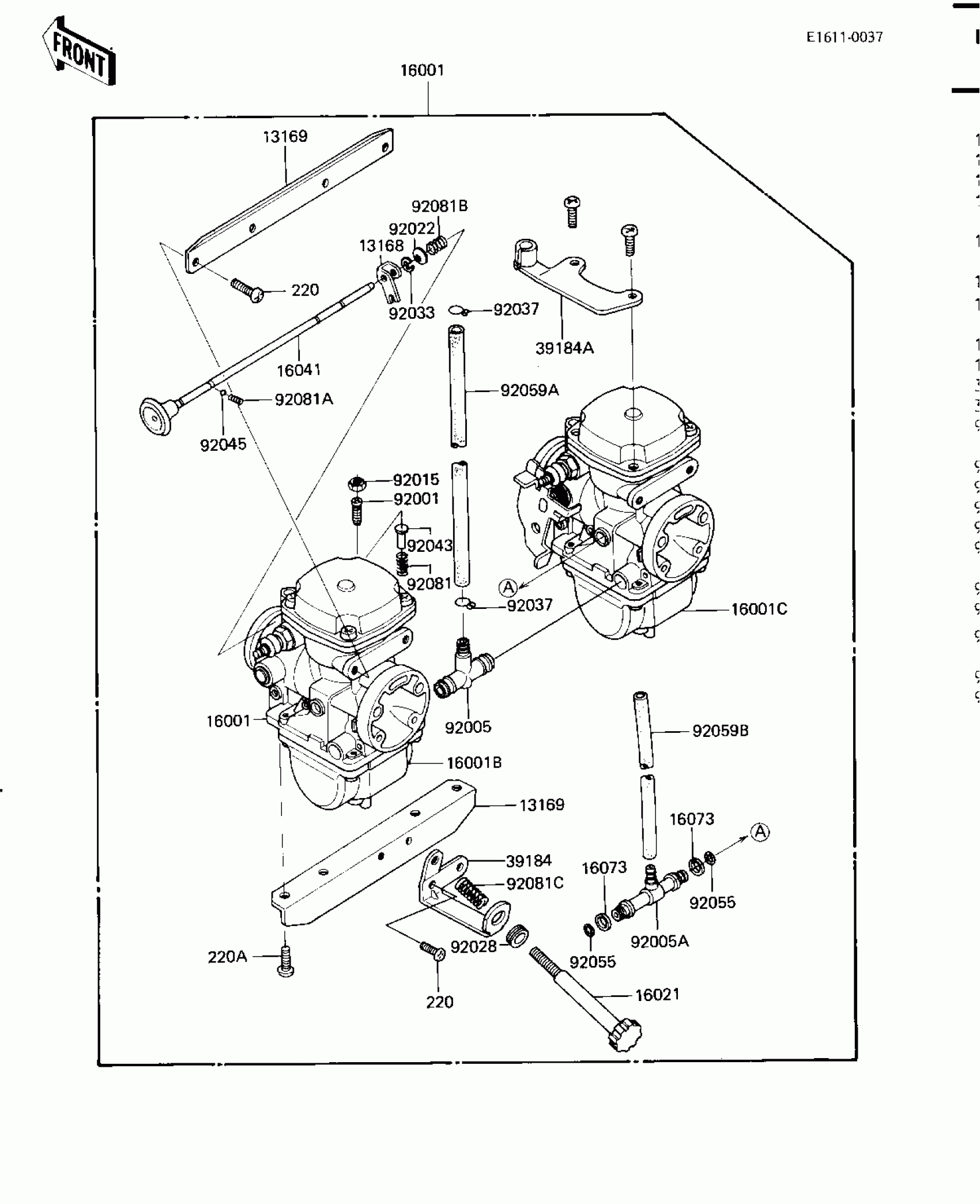

1982 Kawasaki CSR Twin Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,CHOKE

13168-1091

1
Out of stock

13169

PLATE

13169-1466

1
Out of stock

13169A

PLATE

13169-1467

1
Out of stock

16001

CARBURETOR

16001-1471

1
Out of stock

16001B

CARBURETOR,L.H

16001-1473

1
Out of stock

16001C

CARBURETOR,R.H

16001-1474

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1035

1
Out of stock

16041

SHAFT-CARBURETOR

16041-1025

1
Out of stock

16073

INSULATOR

16073-1013

1
Out of stock

39184

1

$37.90

In stock

39184A

BRACKET-ASSY

39184-1010

1
Out of stock

92001

BOLT,ADJUSTING

92001-1447

1
Out of stock

92005

FITTING

92005-1046

1
Out of stock

92005A

FITTING

92005-1047

1
Out of stock

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

1
Out of stock

92022

WASHER,SPRING

92022-1255

1
Out of stock

92028

BUSHING

92028-1071

1
Out of stock

92033

RING-SNAP,E-TYPE

92033-1066

1
Out of stock

92037

CLAMP,TUBE

92037-1184

1
Out of stock

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

1
Out of stock

92045

BALL,STEEL,1/8"

600A0400

1
Out of stock

92055

"0" RING

92055-510

1
Out of stock

92059A

TUBE,7.5X12.5X250

92059-1187

1
Out of stock

92059B

TUBE

92059-1206

1
Out of stock

92081

SPRING,THROTTLE VALVE ADJUST

92081-1259

1
Out of stock

92081A

SPRING,SHAFT STOP

92081-1260

1
Out of stock

92081B

SPRING,CHOKE SHAFT

92081-1364

1
Out of stock

92081C

SPRING

92081-1417

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

220A

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock
