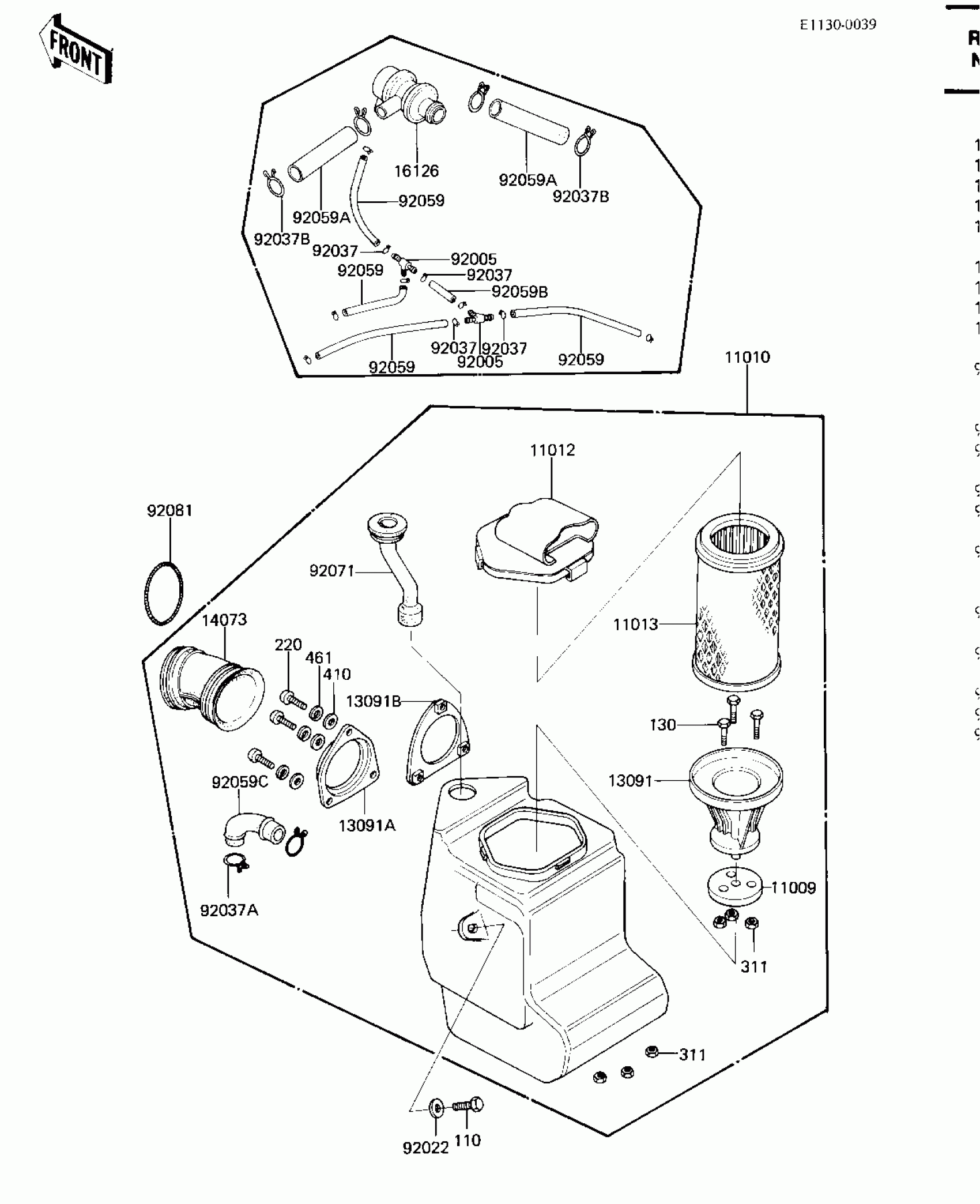

Kawasaki CSR Twin AIR CLEANER Diagram

#

Description
Price

11009

GASKET

11039-001

Unavailable

11010

FILTER-ASSY-AIR

11010-1158

Unavailable

11012

CAP

11012-1189

Unavailable

11013

ELEMENT,AIR CLNR

11013-1045

Unavailable

13091

HOLDER

11033-004

Unavailable

13091A

PLATE,INLET PIPE

11040-004

Unavailable

13091B

PLATE,INLET PIPE

11040-005

Unavailable

14073

DUCT

14073-1061

Unavailable

16126

VALVE,AIR SWITCH

16126-1005

$191.61

92005

FITTING,TUBE,T-TYPE

92005-1017

$10.29

92022

WASHER,6.5X20X1.6

92022-125

$1.02

92037

CLAMP,TUBE

92037-072

$7.22

92037A

CLAMP,BREATHER TUBE

92037-192

$6.52

92037B

CLAMP,TUBE

92037-213

$4.31

92059

TUBE,4X9X100

92059-1058

$14.74

92059A

TUBE

92059-1192

$13.85

92059B

TUBE,4X9X50

92059-1193

$14.74

92059C

TUBE

92059-121

Unavailable

92071

GROMMET

92071-1033

$9.36

92081

SPRING,COIL

92081-1177

$9.95

110

BOLT-UPSET,6X16

112G0616

Unavailable

130

BOLT,FLANGED,6X25

130G0625

Unavailable

220

SCREW PAN HEAD 4X16

220B0416

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER PLAIN 4MM

410B0400

Unavailable

461

WASHER SPRING 4MM

461F0400

Unavailable
