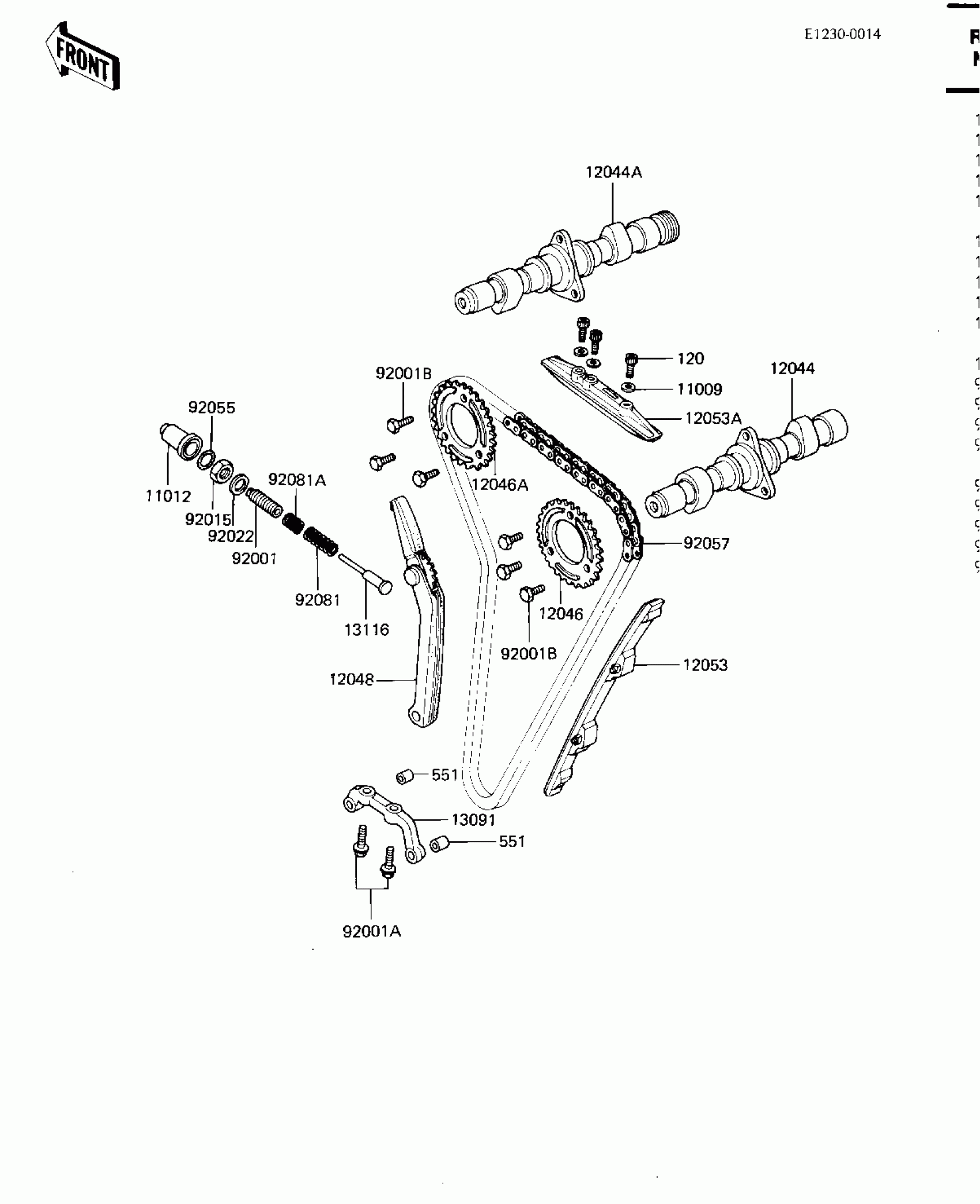

Kawasaki CSR Twin CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

11009

GASKET

92065-096

$4.65

11012

CAP,CHN TENSIONER

12064-003

Unavailable

12044

CAM SHAFT,INLET

12044-010

Unavailable

12044A

CAMSHAFT,EXHAUST

12044-020

Unavailable

12046

SPROCKET,CAM SFT,IN

12046-006

Unavailable

12046A

SPROCKET,CAM SFT,EXH

12046-007

Unavailable

12048

TENSIONER ASSY,CAM

12048-005

Unavailable

12053

SLIPPER,CAM CHAIN

12053-015

Unavailable

12053A

GUIDE-CHAIN

12053-1065

Unavailable

13091

HOLDER

14018-006

Unavailable

13116

ROD,PUSH

13116-1001

Unavailable

92001

BOLT,PUSH ROD

92001-1009

$19.33

92001A

BOLT,FLANGED,6X28

92003-202

Unavailable

92001B

BOLT,FLANGED,6X11

92003-208

$4.31

92015

NUT,18MM

92015-019

$7.22

92022

WASHER,PLAIN

92022-320

$2.03

92055

"O" RING

92055-095

Unavailable

92057

CHAIN,CAM

21070-011

Unavailable

92081

SPRING,PUSH ROD

92081-1007

$6.41

92081A

SPRING

92081-1008

$4.06

120

BOLT-SOCKET,6X14

120P0614

$3.82

551

PIN,DOWEL,10X32

551A1032

$3.28
