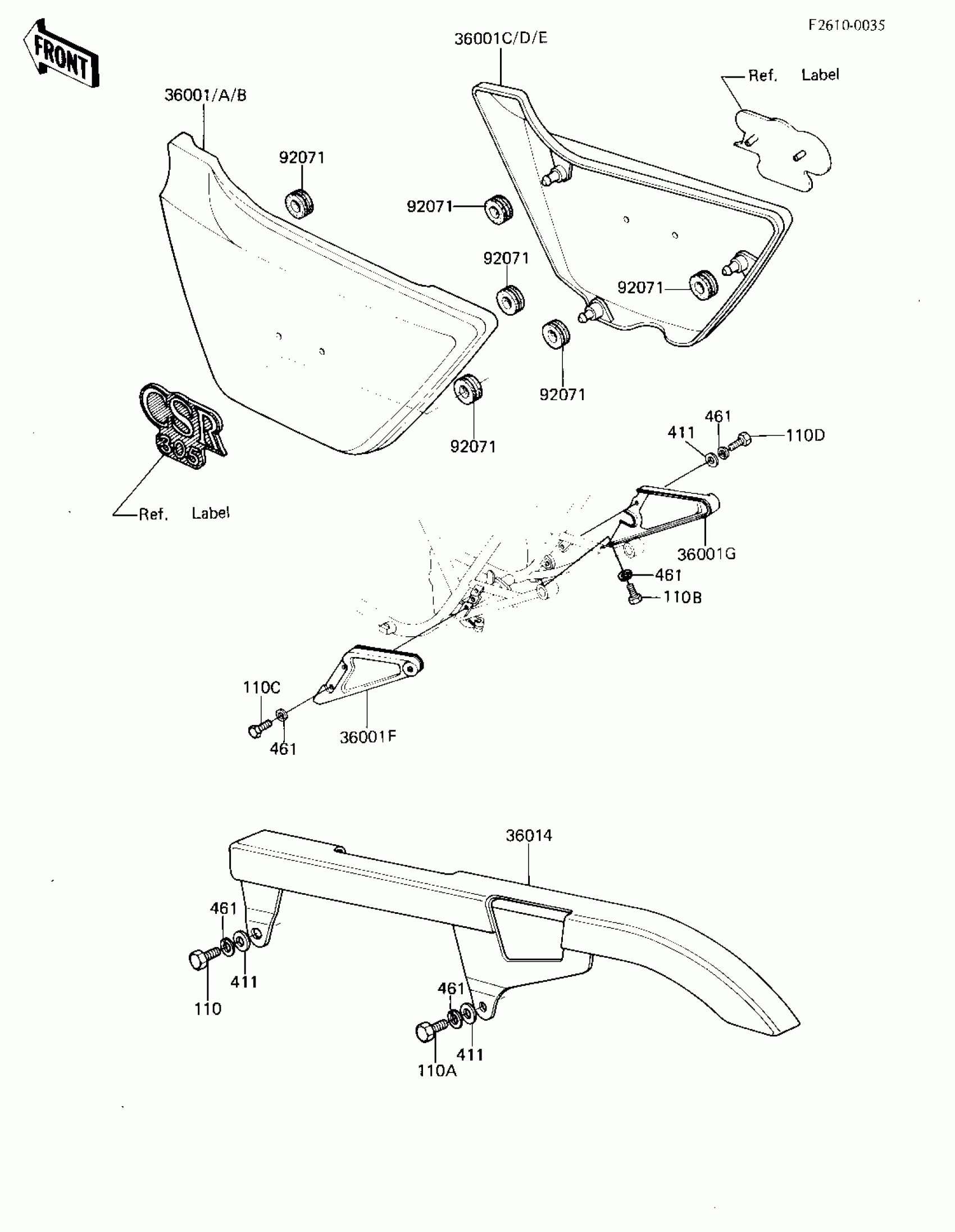

Kawasaki CSR SIDE COVERS/CHAIN COVER Diagram

Description

Price

36001A

COVER-SIDE,LH,L.M.RED

36001-1125-E2

$92.74

36001B

COVER-SIDE,LH,EBONY

36001-1125-8G

$92.74

36001D

COVER-SIDE,RH,L.M.RED

36001-1126-E2

$107.55

36001E

COVER-SIDE,RH,EBONY

36001-1126-8G

$95.41

36001F

COVER,MUFFLER STAY,LH

36001-1129

$19.38

36001G

COVER,MUFFLER STAY,RH

36001-1130

$19.38

36014

CASE-CHAIN,CR-PLATED

36014-1038

Unavailable

92071

GROMMET

92071-056

$4.26

110

BOLT-UPSET,6X12

112G0612

$1.45

110A

BOLT-UPSET 6X14

112B0614

Unavailable

110B

BOLT,6X8

110N0608

$2.98

110C

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

110D

BOLT-UPSET

112G0614

$1.96

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
