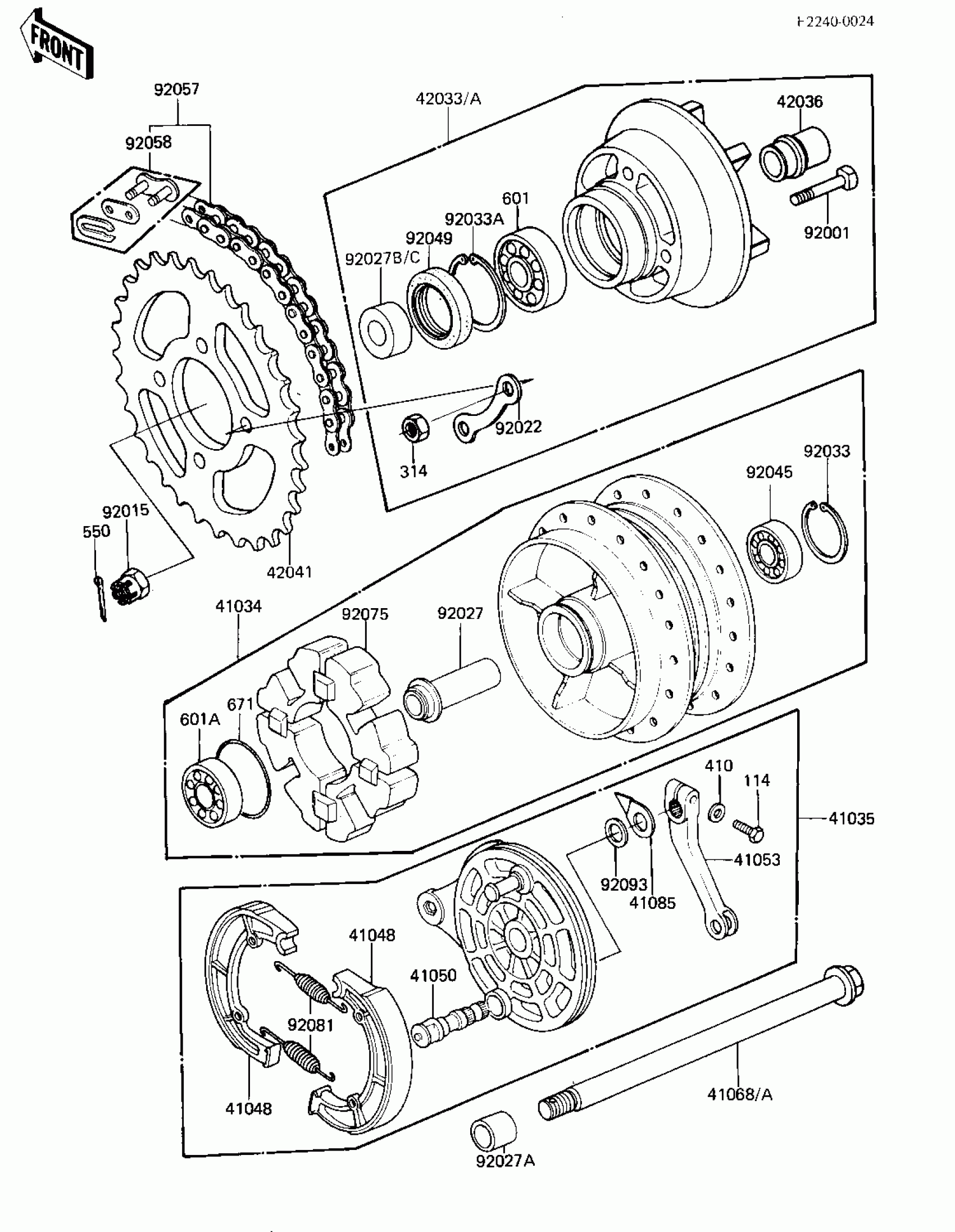

Kawasaki CSR REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
41034
DRUM-ASSY,RR BRK
41034-1005
$287.90
41035
PANEL-ASSY-BRAKE,RR
41035-1089
$361.26
41048
SHOE-BRAKE
41048-1069
$27.31
41050
CAM-BRAKE
41050-1001
$35.31
41053
LEVER-BRAKE CAM
41053-1001
$35.97
41068A
AXLE,RR
41068-1067
$51.38
41085
INDICATOR,BRAKE SHOE
41085-004
Unavailable
42033A
COUPLING-ASSY,REAR HUB
42033-1044
$129.78
42036
SLEEVE,RR HUB COUPLING
42036-1002
Unavailable
42041
SPROCKET-HUB,RR,33T
42041-1064
$120.06
92001
BOLT,HUB SPROCKET,10X55
92003-156
Unavailable
92015
NUT,16MM
92015-055
$11.50
92022
WASHER,SPROCKET LOCK
92088-005
$6.24
92027
COLLAR,REAR HUB BRG.
92027-1013
$15.77
92027A
COLLAR,RR AXLE,RH
92027-1256
$11.56
92027C
COLLAR,REAR AXLE,LH,L=23.5
92027-1368
$32.96
92033
RING-SNAP,47MM
92033-1042
$4.22
92033A
RING-SNAP,52MM
92033-1043
$8.05
92045
BEARING-BALL
601B6303U
$26.36
92049
SEAL-OIL,TWC35527
92052-006
Unavailable
92057
DR CHAIN 530X98
92057-014
$217.04
92058
CHAIN JOINT 530
92058-008
Unavailable
92075
DAMPER,SHOCK,RR HUB
92075-1008
Unavailable
92081
SPRING,BRAKE SHOE
42020-004
$8.51
92093
SEAL,BRAKE CAM
41051-003
$4.26
114
BOLT HEX HEAD 8X28
114G0828
$3.71
314
NUT-HEX-FINE,10MM
314B1000
$0.67
410
WASHER PLAIN 8MM
410B0800
$0.93
550
PIN-COTTER,4.0X35
550D4035
$2.17
601
BEARING-BALL,#6205C3
601B6205
$19.57
601A
BEARING-BALL,#6303C3
601B6303
$8.29
671
O RING,60MM
671B2560
$6.91
