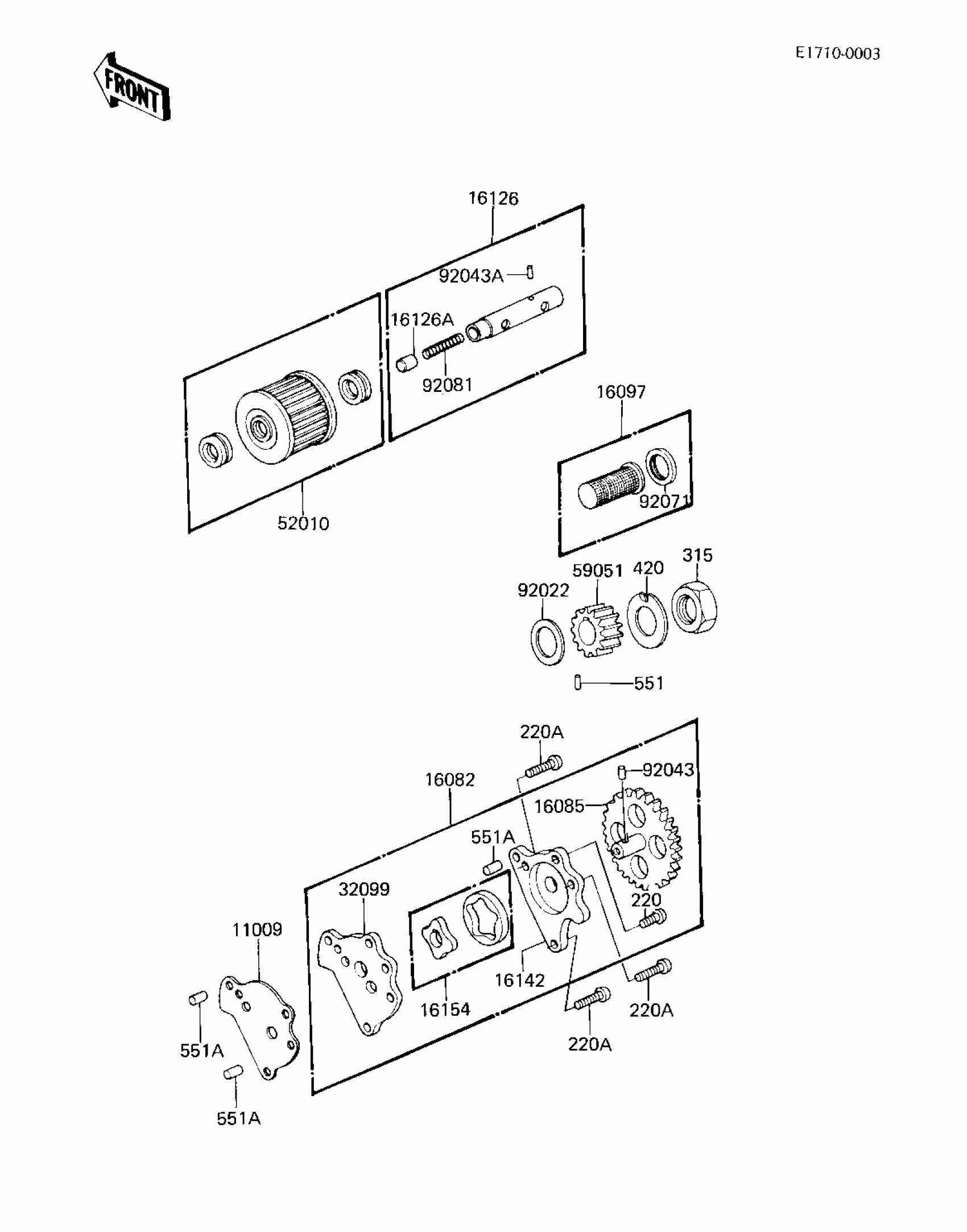

Kawasaki CSR OIL PUMP/OIL FILTER ('81 D2) Diagram

Description

Price

11009

GASKET,OIL PUMP

11060-1115

$4.58

16082

OIL PUMP ASSY

16082-066

$343.23

16085

GEAR,OIL PUMP

16085-026

Unavailable

16097

FILTER-ASSY-OIL

16097-1001

$9.69

16126

PISTON-ASSY,VALVE,BY-PASS

16156-002

$21.56

16126A

VALVE

92136-002

$4.14

16142

COVER,OIL PUMP

16142-006

$30.20

16154

ROTOR,OIL PUMP

16154-5001

Unavailable

32099

BODY,OIL PUMP

16141-006

$23.03

52010

ELEMENT-OIL FILTER

16099-004

$7.36

59051

GEAR,OIL PUMP

16084-018

$10.93

92022

WASHER,THRUST,16.5X28X1

92022-170

$9.02

92043

PIN,DOWEL,4X12.8

92042-041

$5.71

92043A

PIN,SPRING,2.2X13.5

92043-123

$4.17

92071

GROMMET,OIL STRAINER

92071-100

$4.34

92081

SPRING,PISTON

92081-043

$4.34

220

SCREW-PAN-CROS,6X14

220B0614

$1.32

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

315

NUT-HEX-FINE,16MM

315B1600

Unavailable

420

WASHER-CLAW,16MM

420B1611

Unavailable

551

PIN DOWEL 3X12

551A0312

Unavailable

551A

PIN-DOWEL,6X8

551A0608

$3.53
