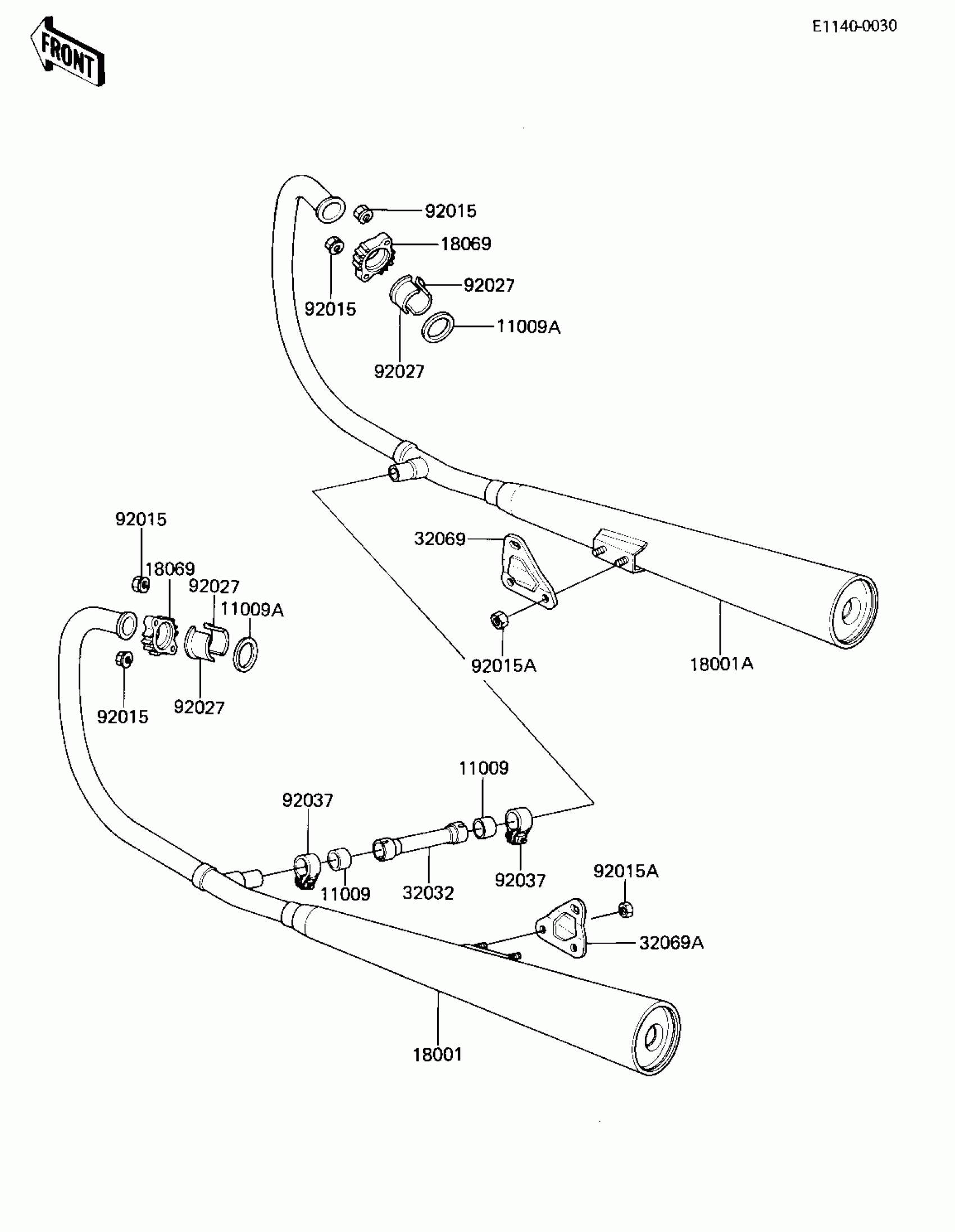

Kawasaki CSR MUFFLERS Diagram

Description

Price

11009

GASKET,MUFFLER CONNEC

11060-1051

$23.41

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

18001

MUFFLER,LH

18001-1296

$501.00

18001A

MUFFLER,RH

18001-1297

$501.00

18069

HOLDER,EXHAUST PIPE

18069-1006

$27.28

32032

PIPE,MUFFLER CONNECTING

32032-1669

Unavailable

32069

BRACKET,MUFFLER,R.H.

32069-1065

$41.79

32069A

BRACKET,MUFFLER,LH

32069-1076

$16.50

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,8MM

92017-013

$10.35

92027

COLLAR,EXHAUST PIPE

92027-264

$4.73

92037

CLAMP,MUFFLER,37MM

92037-1243

Unavailable
