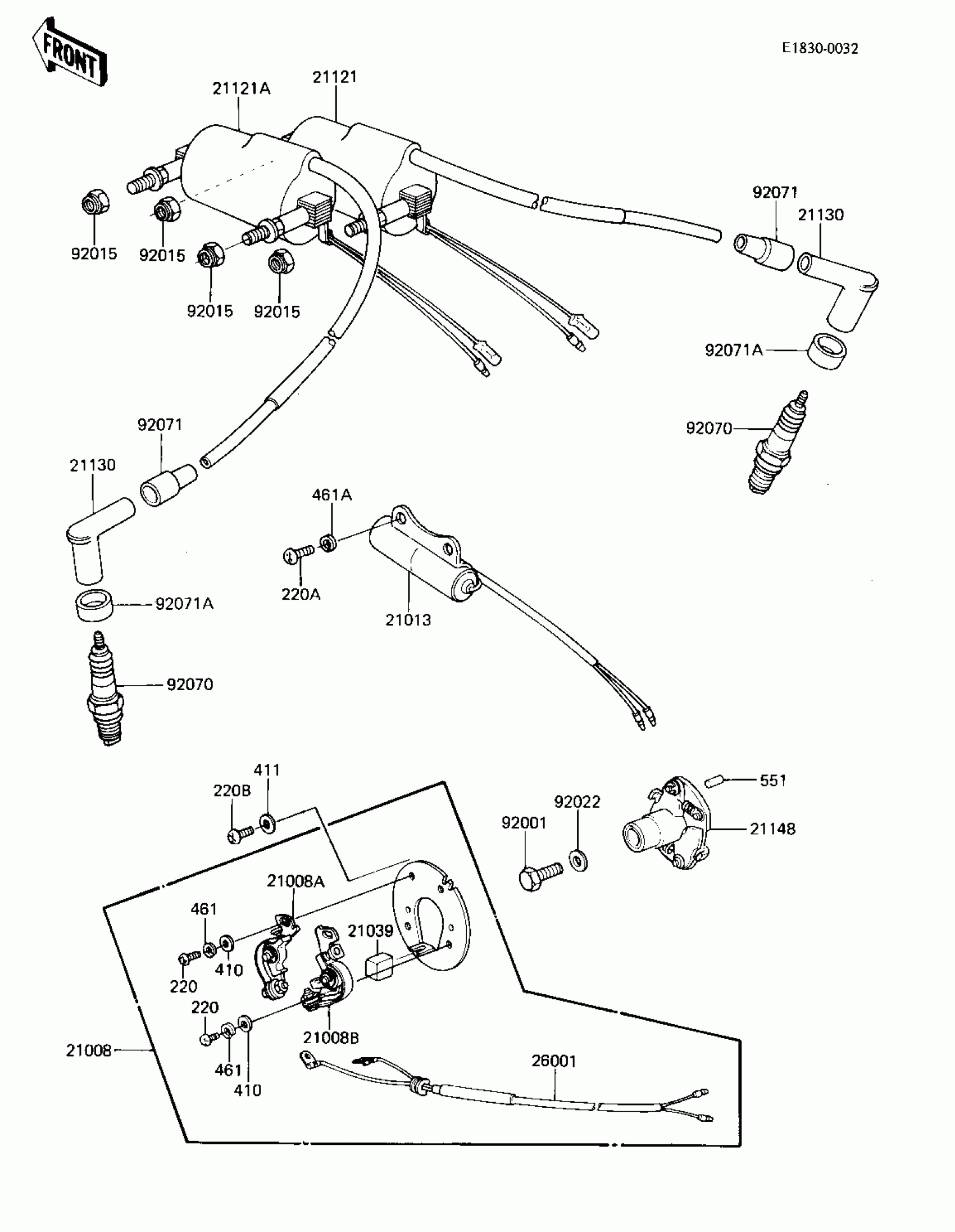

Kawasaki CSR IGNITION Diagram

#

Description
Price

21008

BREAKER,CONTACT

21008-1005

$81.25

21008A

BREAKER,CONTACT,LH

21008-1009

$45.73

21008B

BREAKER,CONTACT,RH

21008-1010

$45.73

21013

CONDENSER

21013-1003

Unavailable

21039

BRUSH,OIL

21019-005

$5.39

21121

COIL,IGNITION

21121-093

$261.14

21121A

COIL-IGNITION

21121-1009

Unavailable

21130

CAP-SPARK PLUG

21130-1003

$29.52

21148

GOVERNOR-BREAKER

21148-1023

Unavailable

26001

HARNESS,BREAKER

26001-1085

$45.04

92001

BOLT,6X14

92003-221

Unavailable

92015

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,PLAIN

92022-323

Unavailable

92070

PLUG-SPARK,D9EA(NGK)

92070-1034

$3.62

92071

GROMMET,HIGH TENSION

21132-005

$4.26

92071A

GROMMET,SPARK PLUG CAP

92071-1015

$4.26

220

SCREW PAN HEAD 4X6

220B0406

$1.67

220A

SCREW-PAN-CROS

220B0512

$0.47

220B

SCREW PAN HEAD 6X10

220B0610

$3.14

410

WASHER PLAIN 4MM

410B0400

$0.48

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 4MM

461F0400

Unavailable

461A

WASHER SPRING 5MM

461F0500

$0.69

551

PIN DOWEL 3X8

551A0308

$0.56
