Description

Price

11034

BRACKET,FRONT FENDER

11034-1573

Unavailable

14008

LINER,PISTON

14008-1007

Unavailable

27010

SWITCH,BRAKE

27010-1028

$33.48

43015

CYLINDER-ASSY-MASTER

43015-1044

Unavailable

43020

PISTON-COMP-BRAKE

43020-1026

$95.03

43022

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

43026

CAP-BRAKE

43026-1006

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

43059

HOSE-BRAKE

43059-1207

$136.66

46092

LEVER-GRIP,FRONT BRAKE

46092-1009

$36.84

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

92001

BOLT,6X25,W/WASHER

43033-003

Unavailable

92001A

BOLT,OIL,L=23

92002-1888

$5.48

92001B

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

92001C

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

92015

NUT 6MM

312B0600

$0.72

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

GROMMET,HOSE CLAMP

43064-006

$4.31

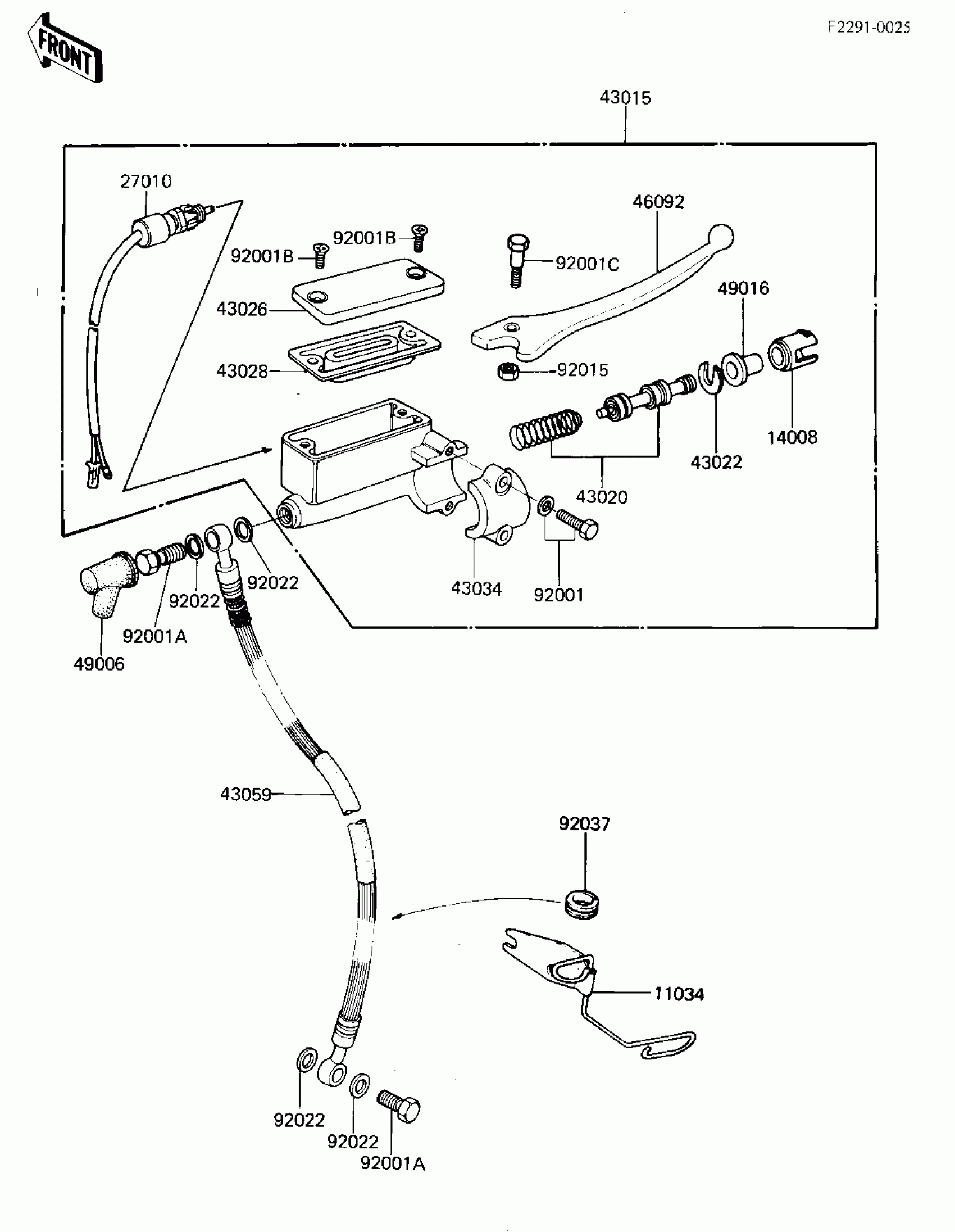

Kawasaki CSR FRONT MASTER CYLINDER Diagram

BRACKET,FRONT FENDER

LINER,PISTON

SWITCH,BRAKE

CYLINDER-ASSY-MASTER

PISTON-COMP-BRAKE

STOPPER-BRAKE,PISTON

CAP-BRAKE

DIAPHRAGM,MASTER CYLINDER

HOLDER-BRAKE,MASTER CYLINDER

HOSE-BRAKE

LEVER-GRIP,FRONT BRAKE

BOOT,DUST

COVER-SEAL,BRAKE PISTON

BOLT,6X25,W/WASHER

BOLT,OIL,L=23

SCREW-CSK-CROS,5X12,BLACK

BOLT,FR BRAKE LEVER

NUT 6MM

WASHER,10.5X15X1.5

GROMMET,HOSE CLAMP
