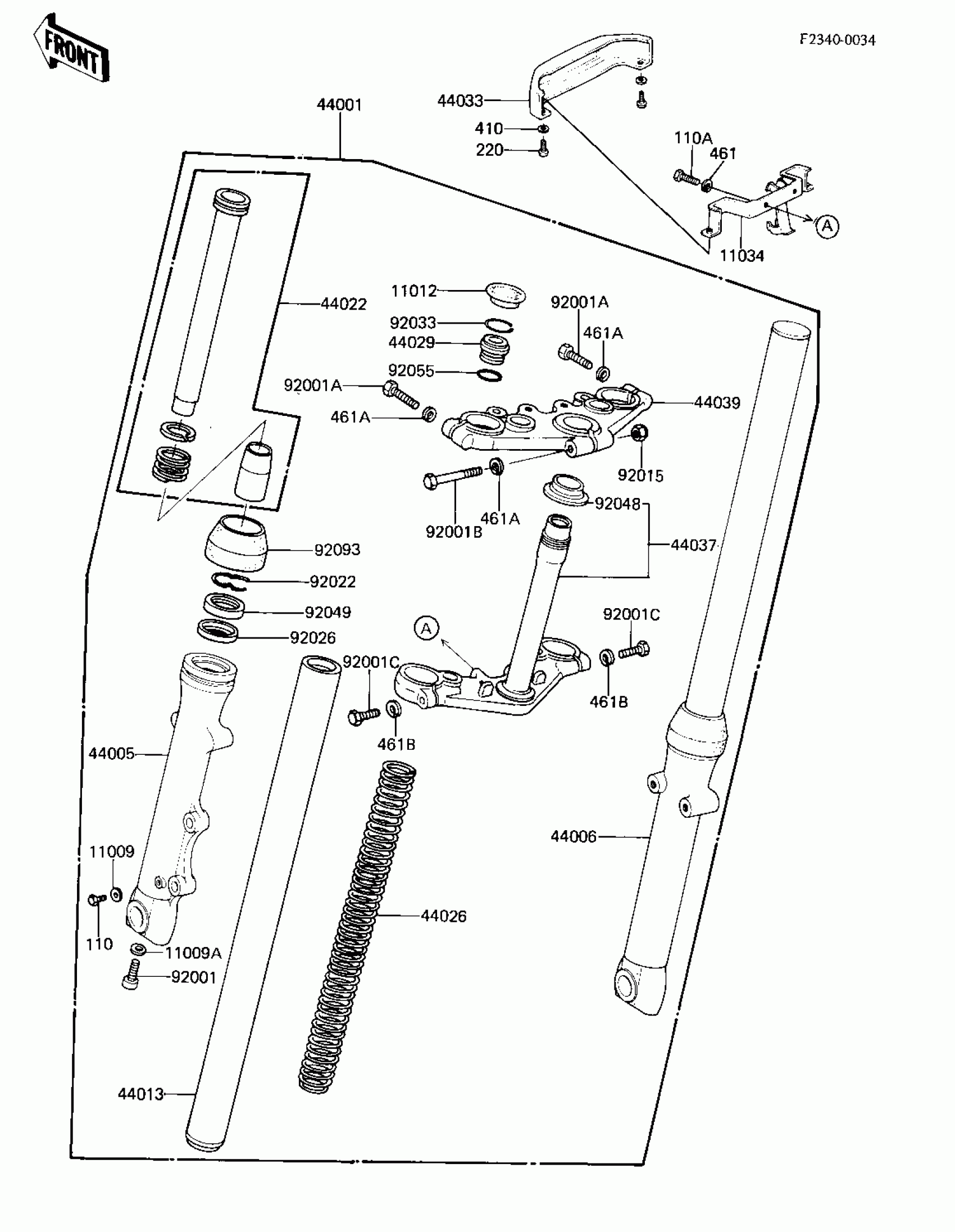

Kawasaki CSR FRONT FORK Diagram
#
Description
Price
11009
GASKET,DRAIN PLUG
44045-047
$9.34
11009A
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
11012
CAP,RUBBER,FORK TOP
11012-1021
Unavailable
11034
BRACKET,FORK COVER
11034-1758
Unavailable
44001
FORK-FRONT
44001-1196
$1,013.53
44005
TUBE,LH,FORK OUTER
44005-1053
$227.49
44006
TUBE,RH,FORK OUTER
44006-1053
$227.49
44013
PIPE-FORK INNER
44013-1025
$312.80
44022
CYLINDER-FORK
44022-1048
$92.95
44026
SPRING-FRONT FORK
44026-1102
$64.42
44029
SEAT-FORK SPRING
44029-022
$11.61
44033
COVER-FORK
44033-1062
Unavailable
44037
HOLDER-FORK UNDER
44037-1014
$349.92
44039
HOLDER-FORK UPPER
44039-1012
$242.30
92001
BOLT,FORK CYLINDER
44041-078
$9.89
92001A
BOLT,8X40
92001-1063
$9.63
92001B
BOLT,HEX HEAD,8X55
92001-1064
Unavailable
92001C
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
92015
NUT,LOCK,8MM
92015-1124
$5.42
92022
RING,OIL SEAL STOPPER
44043-057
$6.52
92026
SPACER,FORK
92026-1005
Unavailable
92033
RING-SNAP
44044-023
$5.46
92048
RACE,STEERING STEM BEARING
92047-006
$12.67
92049
SEAL-OIL,FORK
92049-1077
$20.75
92055
RING-O
44046-025
$6.57
92093
SEAL,FORK
92093-1063
$34.25
110
BOLT HEX HEAD 6X8
110B0608
$0.18
110A
BOLT-UPSET,6X12
112G0612
$1.45
220
SCREW PAN HEAD 4X10
220B0410
$2.30
410
WASHER PLAIN 4MM
410B0400
$0.48
461
WASHER SPRING 6MM
461F0600
$0.69
461A
WASHER SPRING 8MM
461F0800
$0.40
461B
WASHER SPRING 10MM
461F1000
$0.67
