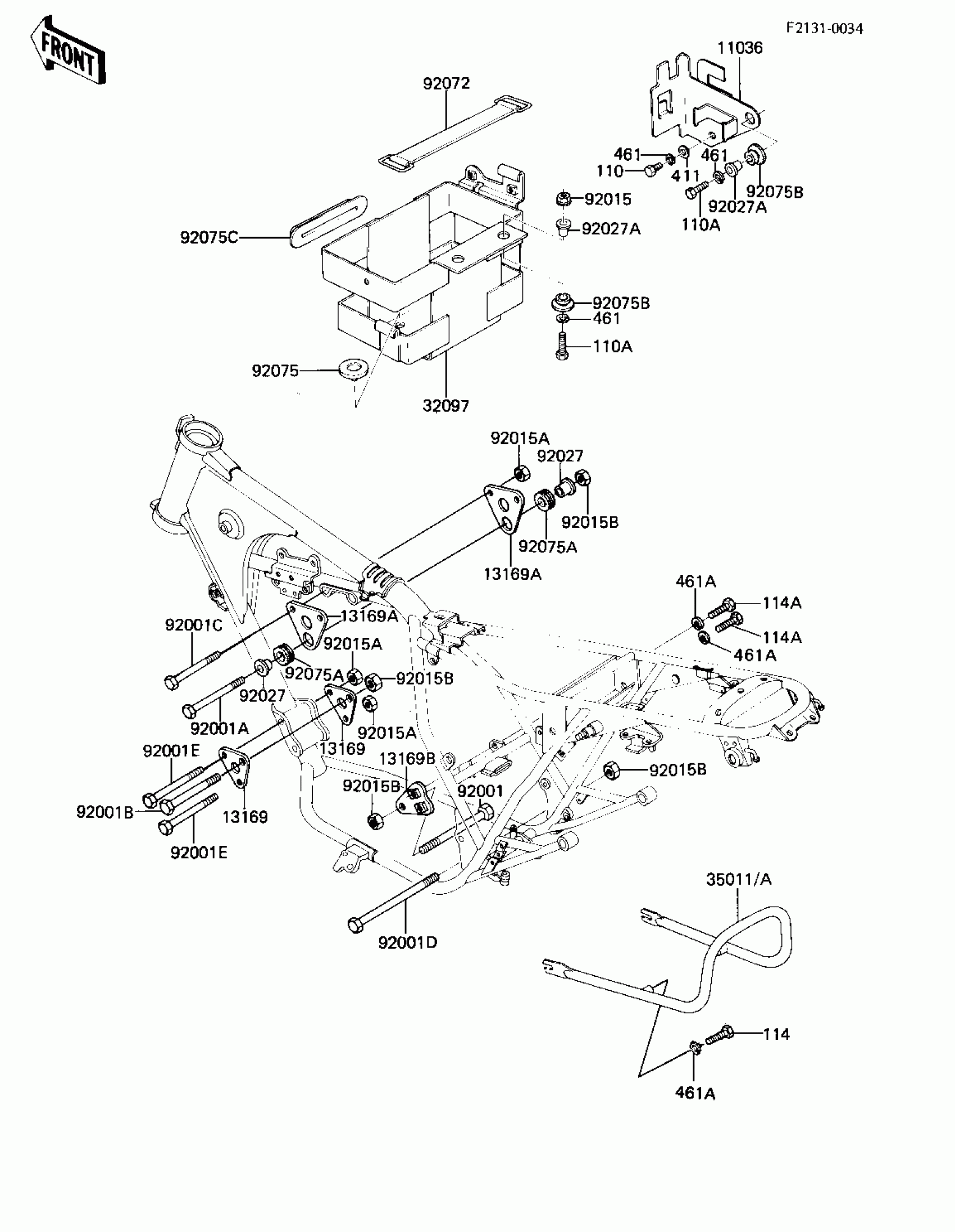

Kawasaki CSR FRAME FITTINGS/BATTERY CASE Diagram

#

Description
Price

11036

BRACKET-A,ELECTRO BASE

11036-1050

Unavailable

13169

PLATE,ENGINE,FRONT

13169-1111

Unavailable

13169A

PLATE,ENGINE,HEAD

13169-1112

Unavailable

13169B

PLATE,ENGINE,REAR-UPP

13169-1113

Unavailable

32097

CASE-BATTERY

32097-1053

$82.75

35011A

STAY,RR

35011-1107

$107.76

92001

BOLT,HEX HEAD,10X130

92001-1249

$7.24

92001A

BOLT,FLANGED,10X70

92001-1618

$10.37

92001B

BOLT,FLANGED,10X110

92001-1602

$11.07

92001C

BOLT,10X45

92001-1182

$10.86

92001D

BOLT,FLANGED,10X145

92001-1605

$13.78

92001E

BOLT,FLANGED,8X110

92001-1597

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,8MM

92015-1124

$5.42

92015B

NUT,10MM

92015-1429

$6.88

92027

COLLAR,L=16.3

92027-1116

Unavailable

92027A

COLLAR

92027-194

$5.52

92072

BAND,L=142.1

92072-006

$12.76

92075

DAMPER,RUBBER

92075-078

$4.39

92075A

DAMPER

92075-1086

Unavailable

92075B

DAMPER

92075-277

$2.84

92075C

DAMPER

92075-280

Unavailable

110

BOLT-UPSET,6X12

112G0612

$1.45

110A

BOLT 6X22

112B0622

$3.48

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

114A

BOLT,8X20

115G0820

$5.14

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40
