Description

Price

11009

GASKET,GENERATOR COVE

11060-1060

$9.66

11009A

GASKET,CLUTCH COVER

11060-1061

$38.05

11009B

GASKET,BREATHER BODY

11009-1239

Unavailable

12053

GUIDE-CHAIN

12053-1023

Unavailable

14026

COVER-CHAIN

14026-1039

Unavailable

14031

COVER-GENERATOR,CAP

14031-1018

Unavailable

14031A

COVER-GENERATOR

14031-1063

Unavailable

14032

COVER-CLUTCH

14032-1064

Unavailable

14070

BODY-BREATHER

14070-1002

$37.24

16115

CAP-OIL FILLER

16115-013

$19.96

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92009

SCREW OVL CNTSK 6X25

222E0625

Unavailable

92049

SEAL-OIL,CLUTCH RELEASE

92049-1003

$10.89

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

"O" RING,DYNAMO COVER

92055-108

$14.93

92055B

RING-O,5.28X1.78

92055-109

$4.39

92066

PLUG,30X8

92067-024

$11.29

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

220A

SCREW PAN HEAD 6X25

220B0625

$2.60

220B

SCREW PAN HEAD 6X30

220B0630

$3.41

220C

SCREW PAN HEAD 6X35

220B0635

$1.63

220D

SCREW PAN HEAD 6X40

220B0640

Unavailable

220E

SCREW PAN HEAD 6X45

220B0645

$1.71

220F

SCREW PAN HEAD 6X55

220B0655

$4.12

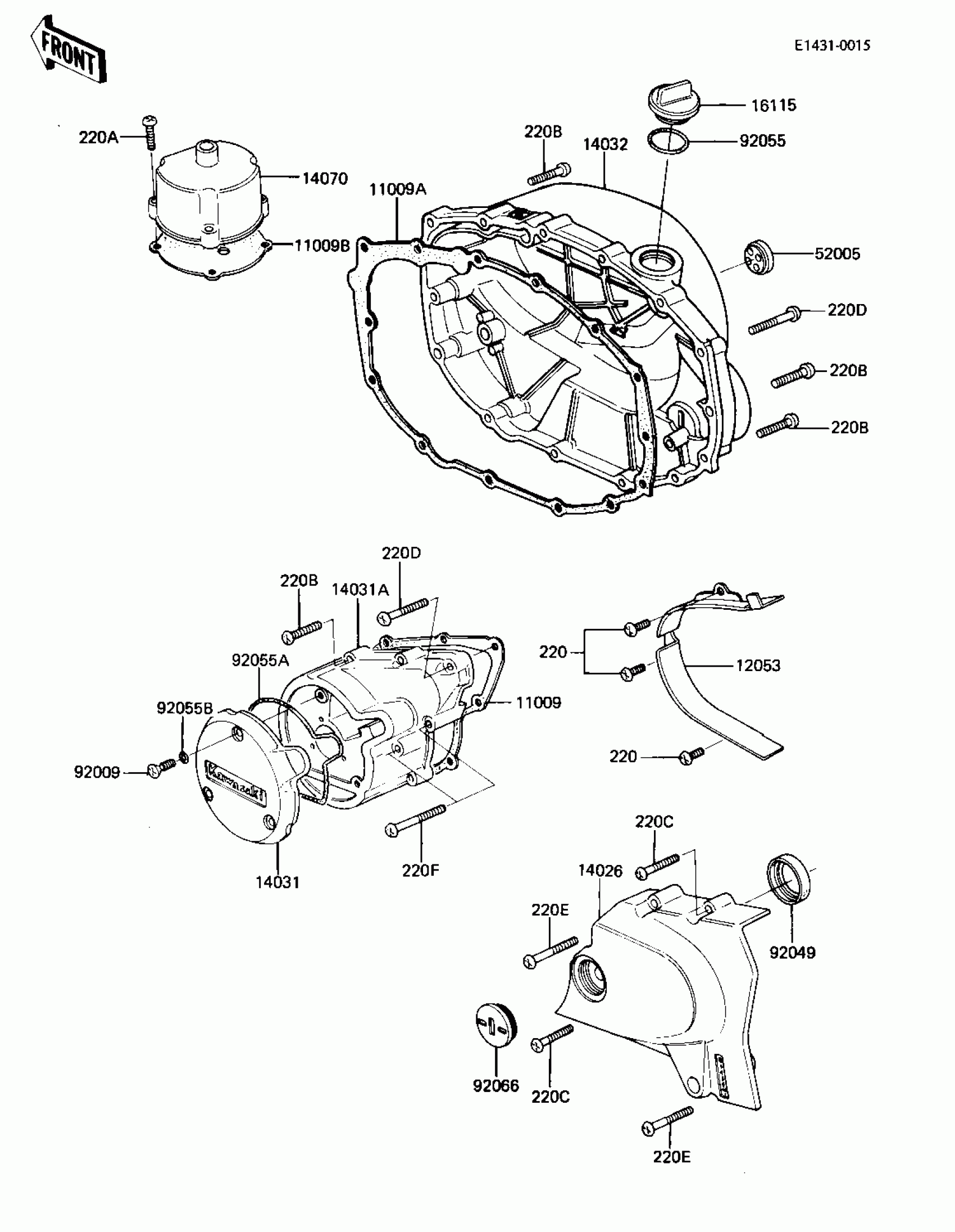

Kawasaki CSR ENGINE COVERS (KZ305-A1) Diagram

GASKET,GENERATOR COVE

GASKET,CLUTCH COVER

GASKET,BREATHER BODY

GUIDE-CHAIN

COVER-CHAIN

COVER-GENERATOR,CAP

COVER-GENERATOR

COVER-CLUTCH

BODY-BREATHER

CAP-OIL FILLER

GAUGE,OIL LEVEL

SCREW OVL CNTSK 6X25

SEAL-OIL,CLUTCH RELEASE

RING-O,31.5X2.6

"O" RING,DYNAMO COVER

RING-O,5.28X1.78

PLUG,30X8

SCREW-PAN-CROS,6X14

SCREW PAN HEAD 6X25

SCREW PAN HEAD 6X30

SCREW PAN HEAD 6X35

SCREW PAN HEAD 6X40

SCREW PAN HEAD 6X45

SCREW PAN HEAD 6X55
