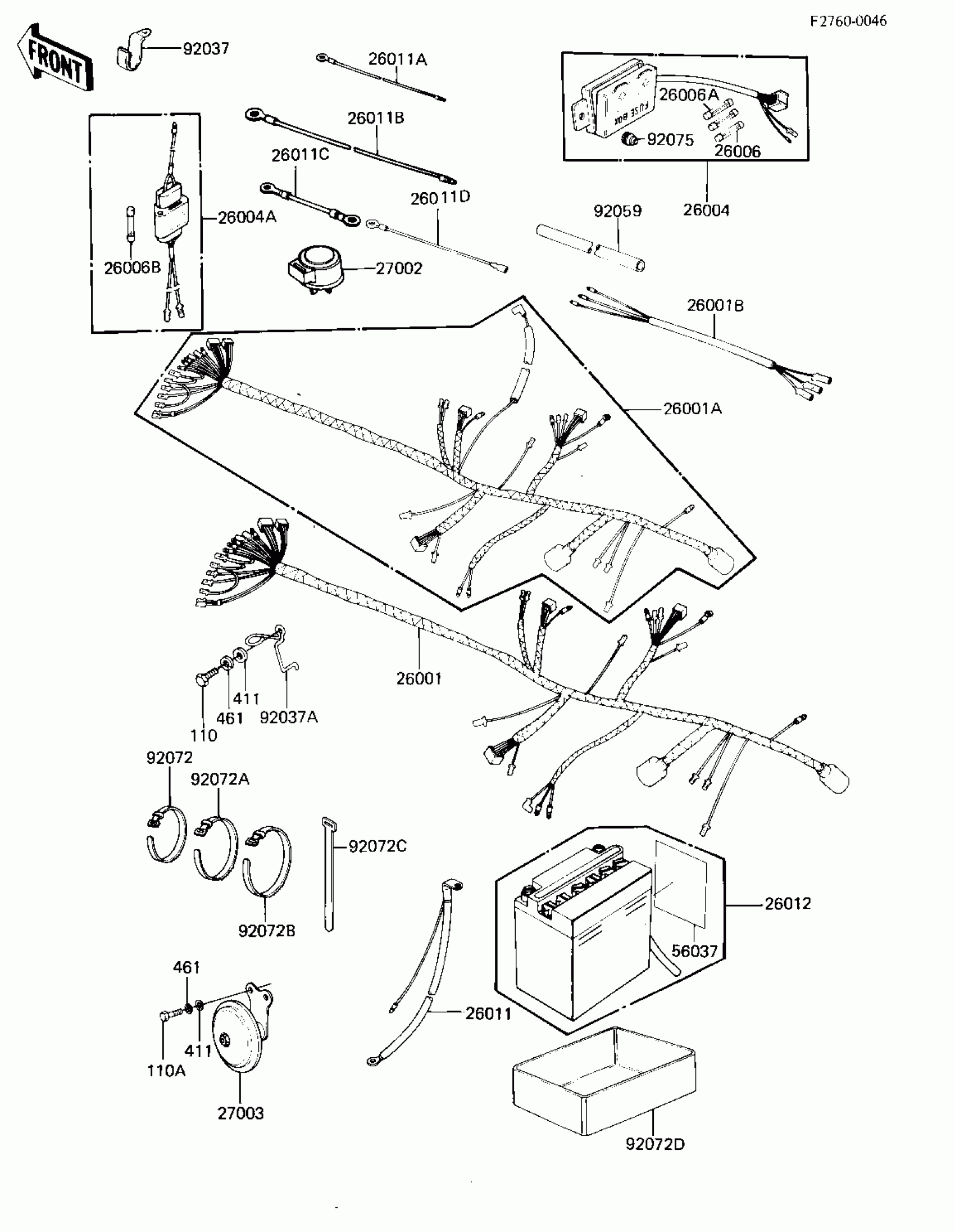

Kawasaki CSR CHASSIS ELECTRICAL/EQUIPMENT Diagram

#

Description
Price

26001A

HARNESS,MAIN

26001-1406

$150.77

26001B

WIRING HARNESS,REAR

26002-041

$16.06

26004

FUSE-ASSY

26004-035

Unavailable

26004A

FUSE-ASSY,ACCESSORY

26004-1014

$70.27

26006

FUSE,10A,L=25

26006-003

$4.72

26006A

FUSE,20A,L=25

26006-005

$5.06

26006B

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.96

26011

WIRE-LEAD,BATTERY GROUND

26010-052

$21.47

26011A

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

26011B

WIRE-LEAD,L=285

26011-095

$11.60

26011C

WIRE-LEAD,CRANKCASE GROUND

26011-1034

$8.17

26011D

WIRE-LEAD,ACCESSORY FUSE,L=100

26011-1110

$12.51

26012

BATTERY 12V11AH W/LA

26012-1010

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

27003

HORN

27003-1348

$66.17

56037

LABEL-WARNING,BATTERY

56040-1036

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP

92037-202

$8.72

92059

TUBE,8X9X200

92059-1150

$7.82

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=218

92072-032

$5.00

92072C

BAND,L=95

92072-067

Unavailable

92072D

BAND,BATTERY

92072-1020

Unavailable

92075

DAMPER,FUSE

92075-279

$6.45

110

BOLT-UPSET,6X12

112G0612

$1.45

110A

BOLT-UPSET,6X16

112G0616

$1.10

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
