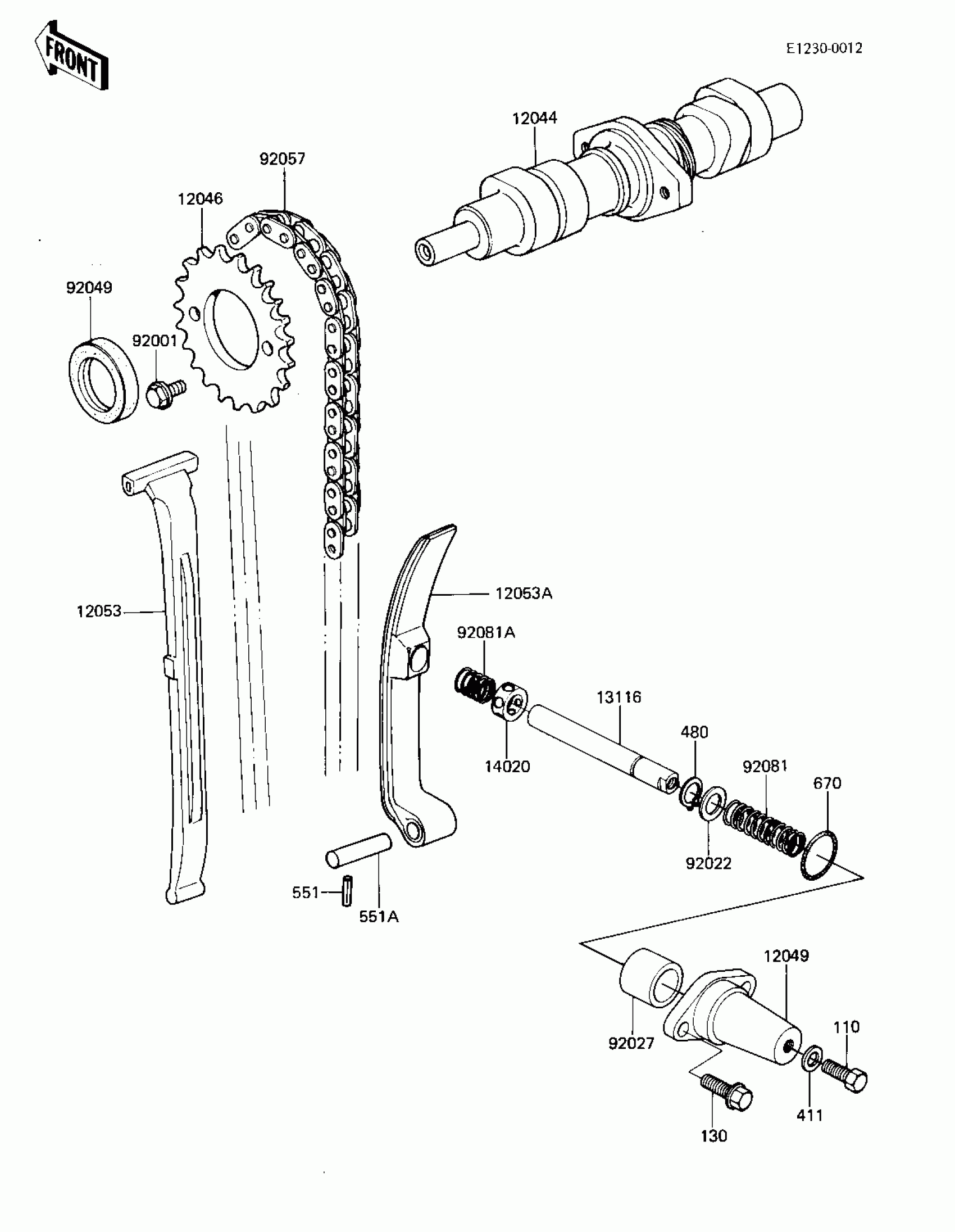

Kawasaki CSR CAMSHAFT/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE

12044-1002

Unavailable

12046

SPROCKET,CAMSHAFT

12046-1008

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1010

Unavailable

12053

GUIDE-CHAIN,CAM

12053-1020

Unavailable

12053A

GUIDE-CHAIN,CAM,RR

12053-1050

Unavailable

13116

ROD-PUSH,TENSIONER

13116-1022

Unavailable

14020

RETAINER,TENSIONER

14020-1002

$17.55

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92022

WASHER,10.2X14.5X1.0

92022-1181

$3.92

92027

COLLAR,TENSIONER

92027-1240

$15.92

92049

SEAL-OIL,S25407

92050-065

Unavailable

92057

CHAIN,CAMSHAFT,BF05MX82L

92057-1015

$94.52

92081

SPRING,TENSIONER

92081-1206

Unavailable

92081A

SPRING,TENSIONER

92081-1207

$5.17

110

BOLT-UPSET 6X14

112B0614

Unavailable

130

BOLT-FLANGED,6X20

130G0620

$1.69

411

WASHER PLAIN 6MM

411B0600

$2.84

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

551

PIN-DOWEL,3X16

551A0316

$2.16

551A

PIN-DOWEL,8X40

551A0840

$5.24

670

O RING,21MM

670B2021

$4.69
