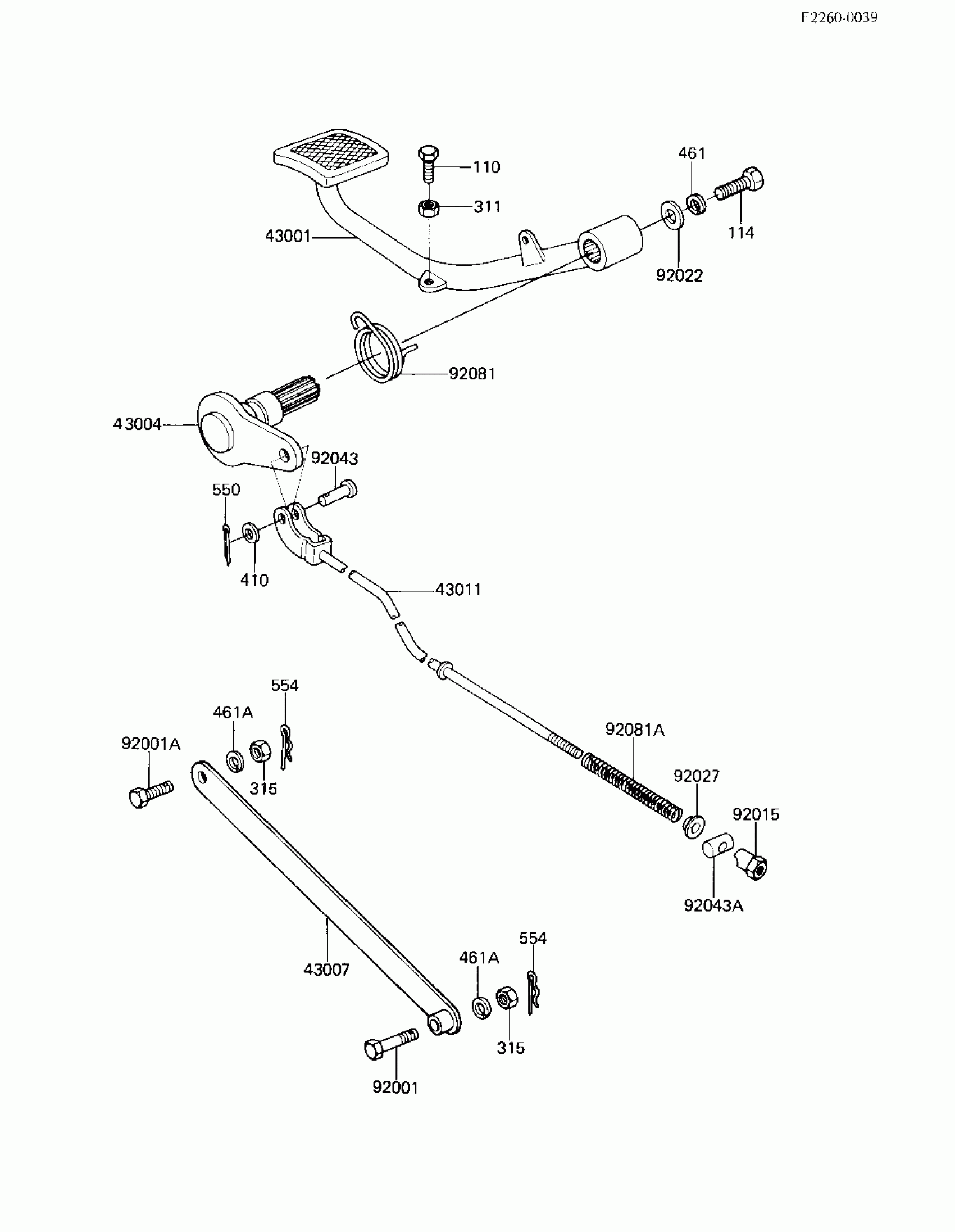

Kawasaki CSR BRAKE PEDAL/TORQUE LINK (KZ305-A2) Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1116

$146.09

43004

SHAFT-BRAKE

43004-1031

$70.65

43007

ROD-TORQUE

43007-1027

$30.39

43011

ROD-BRAKE

43011-1032

$36.03

92001

BOLT,10X45

92001-1423

$7.66

92001A

BOLT,10X25

92003-017

Unavailable

92015

NUT,BRAKE ROD

92015-042

$6.22

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR

92027-122

$8.60

92043

PIN,6X17

92043-064

$4.69

92043A

PIN,BRAKE ROD

92043-065

$5.57

92081

SPRING,BRAKE PEDAL

43005-022

Unavailable

92081A

SPRING,BRAKE ROD

43012-001

$4.65

110

BOLT-UPSET,6X20

112G0620

$2.12

114

BOLT SMALL

114G0812

Unavailable

311

NUT 6MM

311B0600

$0.93

315

NUT-HEX-FINE,10MM

315B1000

$0.58

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

461

WASHER SPRING 8MM

461F0800

$0.40

461A

WASHER SPRING 10MM

461F1000

$0.67

550

PIN COTTER 2.0X15

550D2015

$1.04

554

PIN-SNAP,8MM

554A0800

$1.26
