Description

Price

13127

SHAFT,INPUT,15T

13127-1041

Unavailable

13128

SHAFT,OUTPUT

13128-1007

Unavailable

13129

LOW GEAR,OUTPUT SHAFT

13129-058

Unavailable

13129A

2ND GEAR,DRIVE SHAFT

13129-1022

Unavailable

13129B

GEAR,INPUT,3RD,20T

13129-1284

Unavailable

13129C

GEAR,OUTPUT 4TH,21T

13129-1285

Unavailable

13129D

2ND GEAR,OUTPUT 26T

13131-044

Unavailable

13129E

3RD GEAR,OUTPUT SHAFT

13133-044

Unavailable

13129F

4TH GEAR,DRIVE SHAFT

13134-026

Unavailable

13129G

TOP GEAR,DRIVE SHAFT

13136-057

Unavailable

13129H

TOP GEAR,OUTPUT SHAFT

13137-037

Unavailable

13144

SPROCKET,ENGINE

13144-1073

Unavailable

92015

NUT,LOCK,16M/M

92015-1013

Unavailable

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,SPROCKET LOCK

92022-1348

$8.03

92022B

WASHER,22.3X27X0.5

92022-198

$5.52

92022C

WASHER,THRUST,15MM

92022-279

$10.56

92022D

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

92026

SPACER,DRIVE SHAFT

92026-1061

$8.94

92027

COLLAR,ENGINE SPROCKT

92027-287

Unavailable

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,18MM

92033-029

$9.82

92033B

RING-SNAP

92033-032

$4.96

92055

RING-O,17.5X1.5

92055-022

$6.22

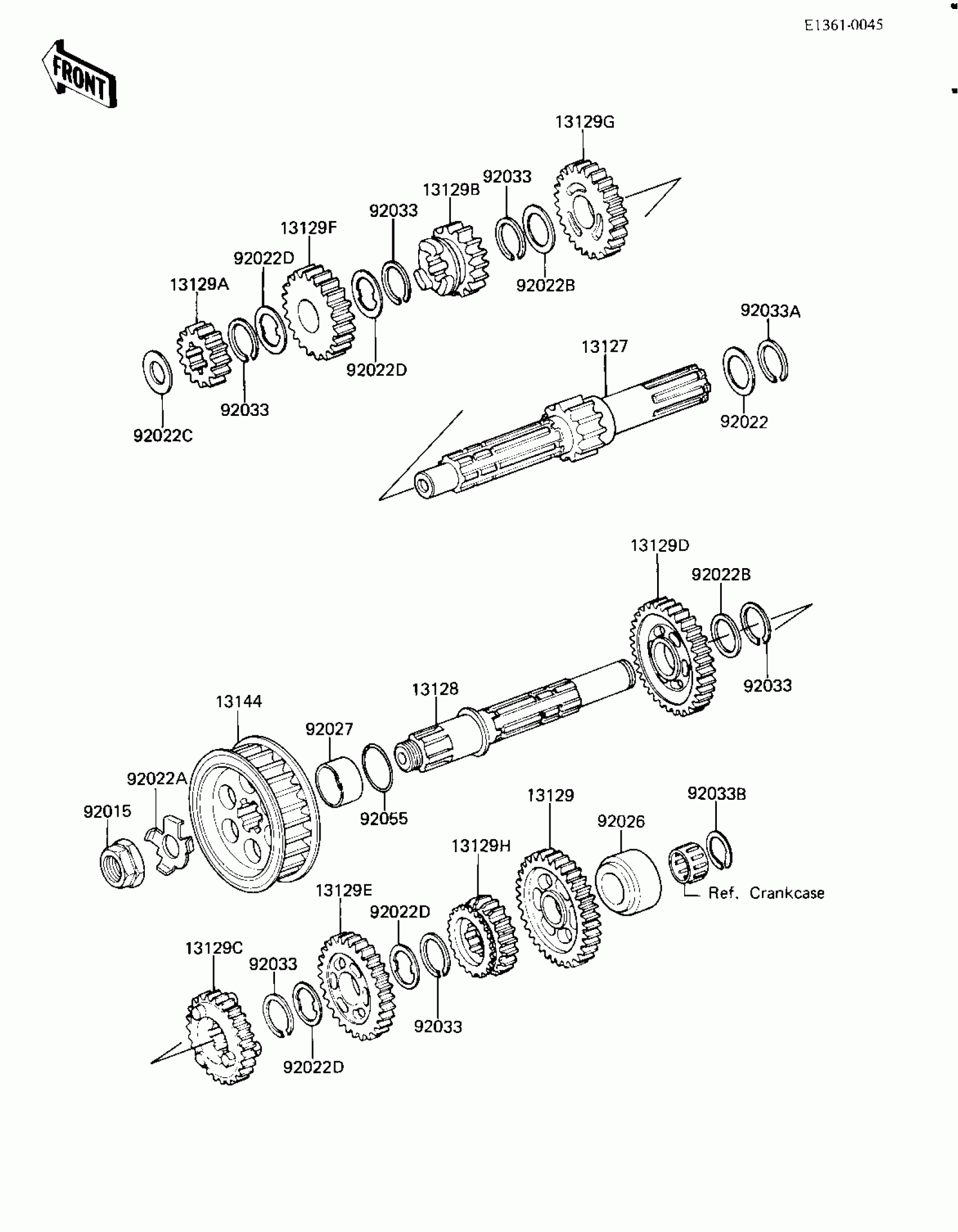

Kawasaki CSR Belt TRANSMISSION Diagram

SHAFT,INPUT,15T

SHAFT,OUTPUT

LOW GEAR,OUTPUT SHAFT

2ND GEAR,DRIVE SHAFT

GEAR,INPUT,3RD,20T

GEAR,OUTPUT 4TH,21T

2ND GEAR,OUTPUT 26T

3RD GEAR,OUTPUT SHAFT

4TH GEAR,DRIVE SHAFT

TOP GEAR,DRIVE SHAFT

TOP GEAR,OUTPUT SHAFT

SPROCKET,ENGINE

NUT,LOCK,16M/M

WASHER,20.5X30X1,STEEL

WASHER,SPROCKET LOCK

WASHER,22.3X27X0.5

WASHER,THRUST,15MM

WASHER,TOOTHED,22.5X27X0.5

SPACER,DRIVE SHAFT

COLLAR,ENGINE SPROCKT

RING-SNAP,20X25.5X1.2

RING-SNAP,18MM

RING-SNAP

RING-O,17.5X1.5
