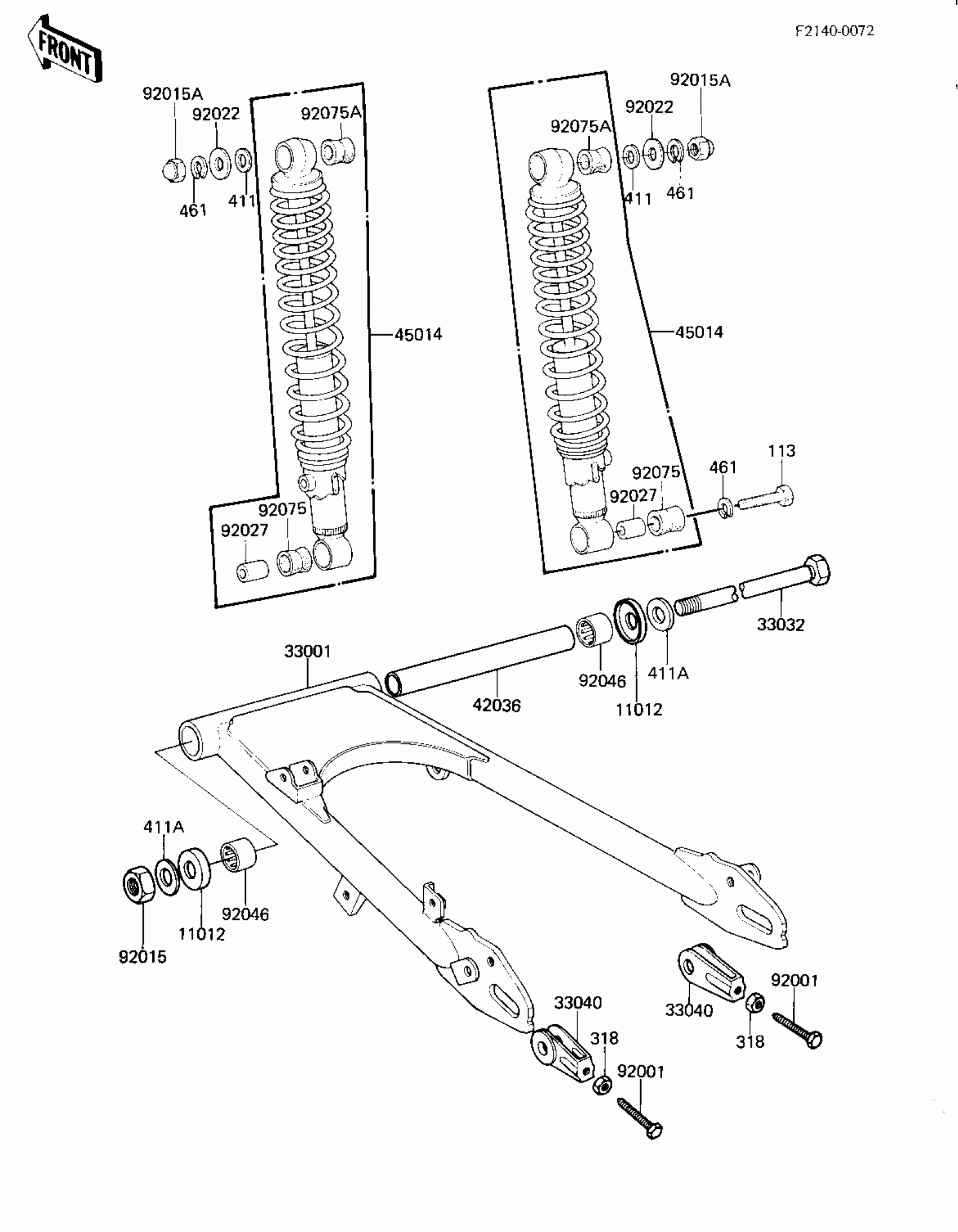

Kawasaki CSR Belt SWING ARM/SHOCK ABSORBERS Diagram

Description

Price

11012

CAP,SWING ARM

33035-010

Unavailable

33001

ARM-COMP-SWING

33001-1119

$188.56

33032

SHAFT-SWING ARM

33032-1022

$69.43

33040

ADJUSTER,CHAIN

33040-1010

Unavailable

42036

SLEEVE,SWING ARM,14.1X22X204.5

42036-1021

$48.53

45014

SHOCK ABSBR RR

45014-1138

$247.68

92001

BOLT,8X50

92001-1399

$9.48

92015

NUT-LOCK,14MM

92019-011

Unavailable

92015A

NUT,CAP,10MM

92020-003

$6.52

92022

WASHER,10X22X3.2

92022-176

$4.78

92027

COLLAR,SHOCKABSORBER

45016-008

$9.91

92046

BEARING-NEEDLE,HK2216

92046-1115

$20.02

92075

DAMPER,SHOCKABSORBER

45017-012

$14.90

92075A

DAMPER,SHOCKABSORBER

45017-015

Unavailable

113

BOLT HEX HEAD 10X35

113N1035

$9.14

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

411

WASHER-PLAIN,10MM

411B1000

$0.93

411A

WASHER PLAIN 14MM

411B1400

$3.93

461

WASHER SPRING 10MM

461F1000

$0.67
