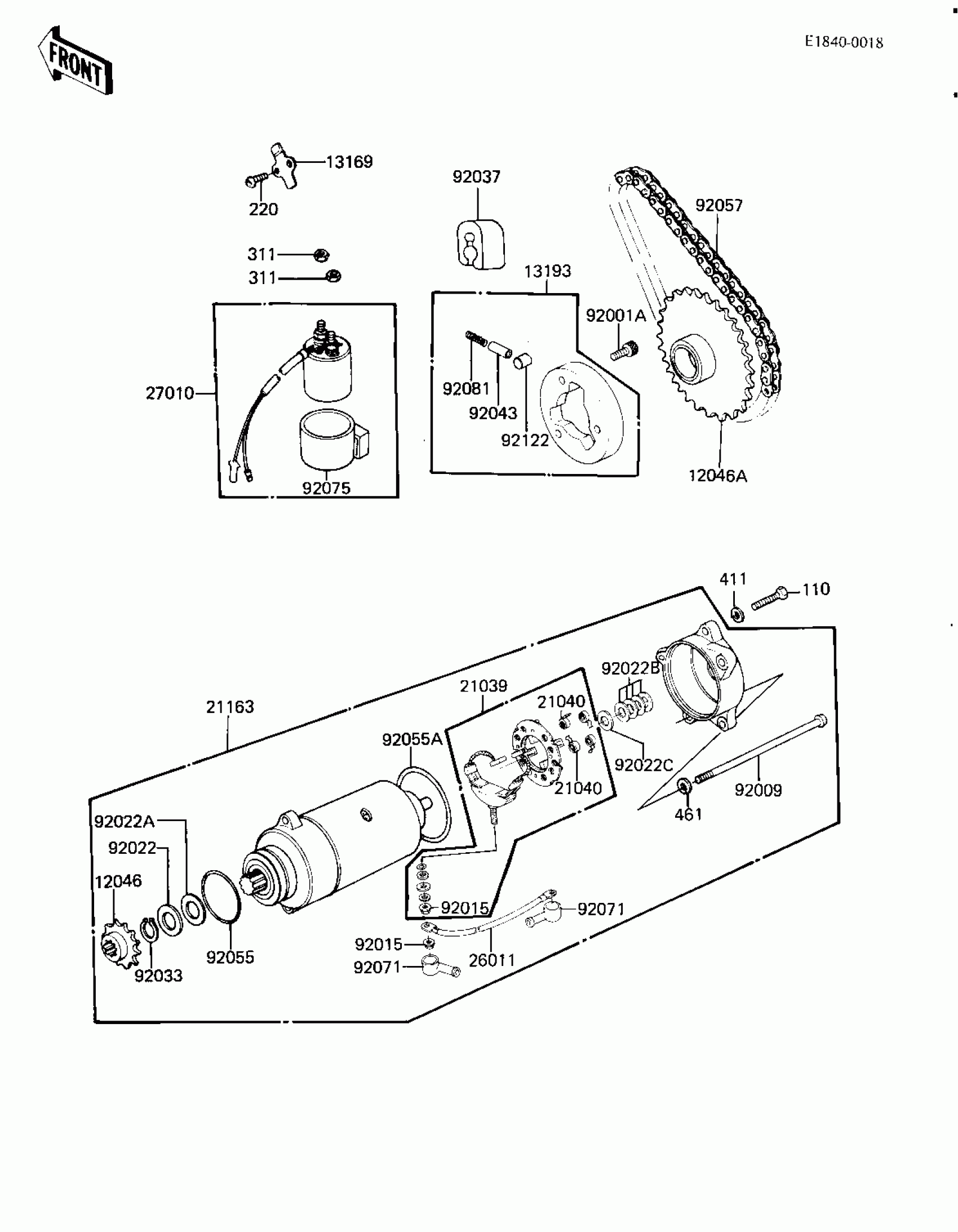

Kawasaki CSR Belt STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

12046

SPROCKET,STARTER MOTO

12046-1004

Unavailable

12046A

SPROCKET,STARTER

12046-1023

Unavailable

13169

PLATE

13169-1010

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1006

$178.91

21039

BRUSH,CARBON

21039-1007

Unavailable

21040

SPRING CARBON BRUSH

21040-004

Unavailable

21163

STARTER-ELECTRIC

21163-1036

Unavailable

26011

WIRE-LEAD,STARTER MOT

26011-1201

$48.53

27010

SWITCH ASSY,MAGNETIC

21164-005

$159.50

92001

BOLT-SOCKET,8X16

120P0816

$4.15

92009

SCREW,PAN HEAD,6X119

92009-1097

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,PLAIN,14MM

21025-008

Unavailable

92022A

WASHER PLAIN 14MM

21025-009

Unavailable

92022B

WASHER,9.1X18X0.2

21025-011

Unavailable

92022C

WASHER,9.1X18X0.8

92022-1132

$6.22

92033

RING-SNAP,13MM

92033-037

$9.80

92037

CLAMP,CABLE

92037-1049

$3.60

92043

PIN

92043-087

$12.76

92055

RING-O,42.8MM

21027-005

Unavailable

92055A

RING-O,64MM

92055-1086

$10.00

92057

CHAIN,DYNAMO

92057-1009

$49.50

92071

CAP,STARTING MOTOR

21017-020

$8.42

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING

92081-110

$4.76

92122

ROLLER,15X14.4

92122-001

$11.60

110

BOLT-UPSET

112G0625

$3.62

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

311

NUT-HEX,6MM

311G0600

$2.19

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
