Description

Price

11034

BRACKET,SEAT

11034-1135

Unavailable

27012

HOOK,SEAT

27012-1015

Unavailable

27016

LOCK-ASSY,SEAT&HELMET

27016-5028

Unavailable

32099

CASE,MANUAL

32099-011

$16.66

53001

SEAT-ASSY

53001-1172

$400.71

55020

GUARD,SEAT

55020-1042

$7.59

92009

SCREW,TAPPING,5X8

92009-1043

$4.77

92027

COLLAR,L=12

92027-1062

$7.34

92071

GROMMET

92071-056

$4.26

92075

DAMPER

92075-099

$5.52

92075A

DAMPER

92075-1007

$7.98

92075B

DAMPER,RUBBER

92075-1123

$5.00

92075C

DAMPER,SEAT

92075-219

Unavailable

92081

SPRING,SEAT

92081-1205

$13.38

110

BOLT-UPSET,6X12

112G0612

$1.45

110A

BOLT-UPSET

112G0625

$3.62

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

461

WASHER SPRING 6MM

461F0600

$0.69

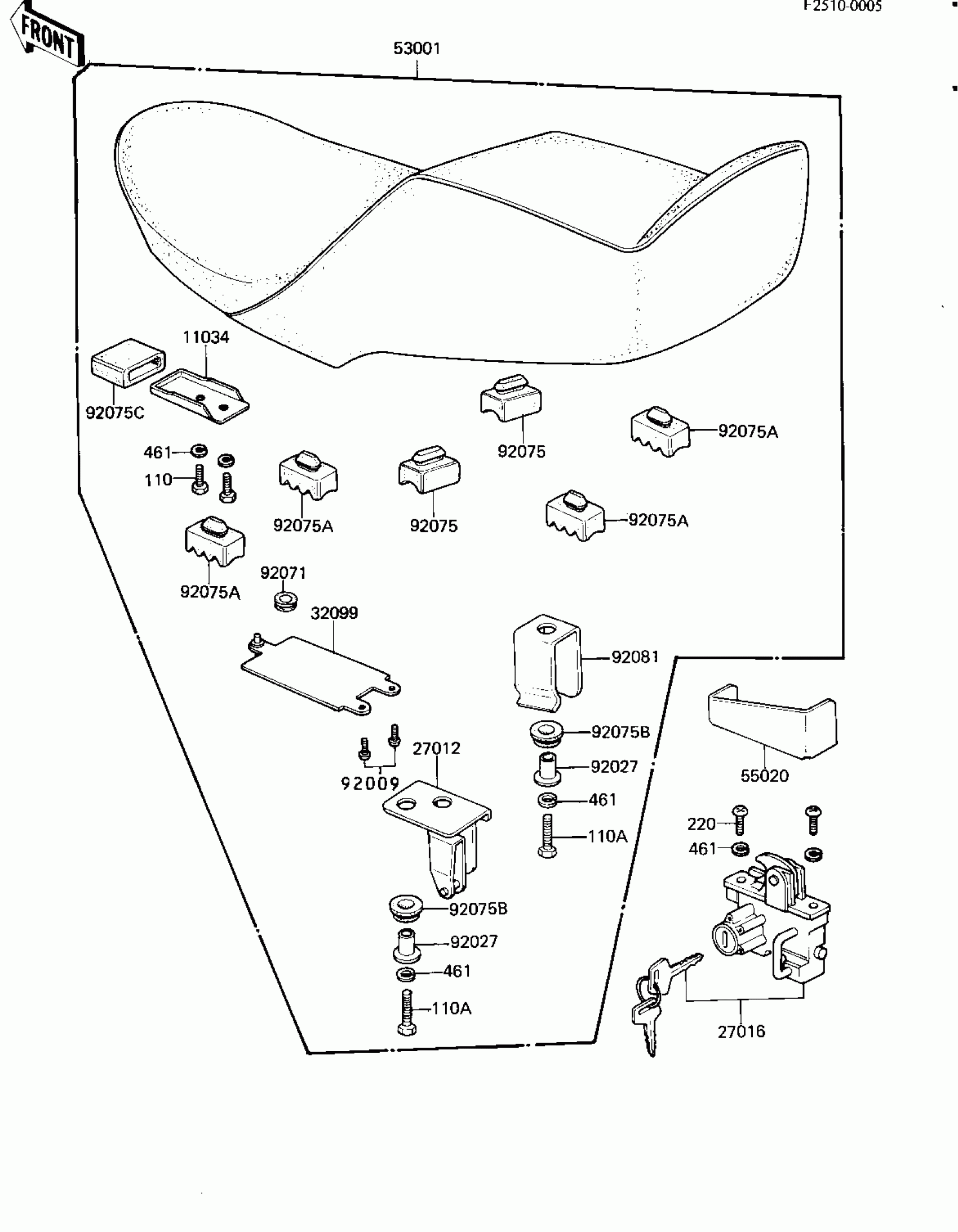

Kawasaki CSR Belt SEAT Diagram

BRACKET,SEAT

HOOK,SEAT

LOCK-ASSY,SEAT&HELMET

CASE,MANUAL

SEAT-ASSY

GUARD,SEAT

SCREW,TAPPING,5X8

COLLAR,L=12

GROMMET

DAMPER

DAMPER

DAMPER,RUBBER

DAMPER,SEAT

SPRING,SEAT

BOLT-UPSET,6X12

BOLT-UPSET

SCREW-PAN-CROS,6X14

WASHER SPRING 6MM
