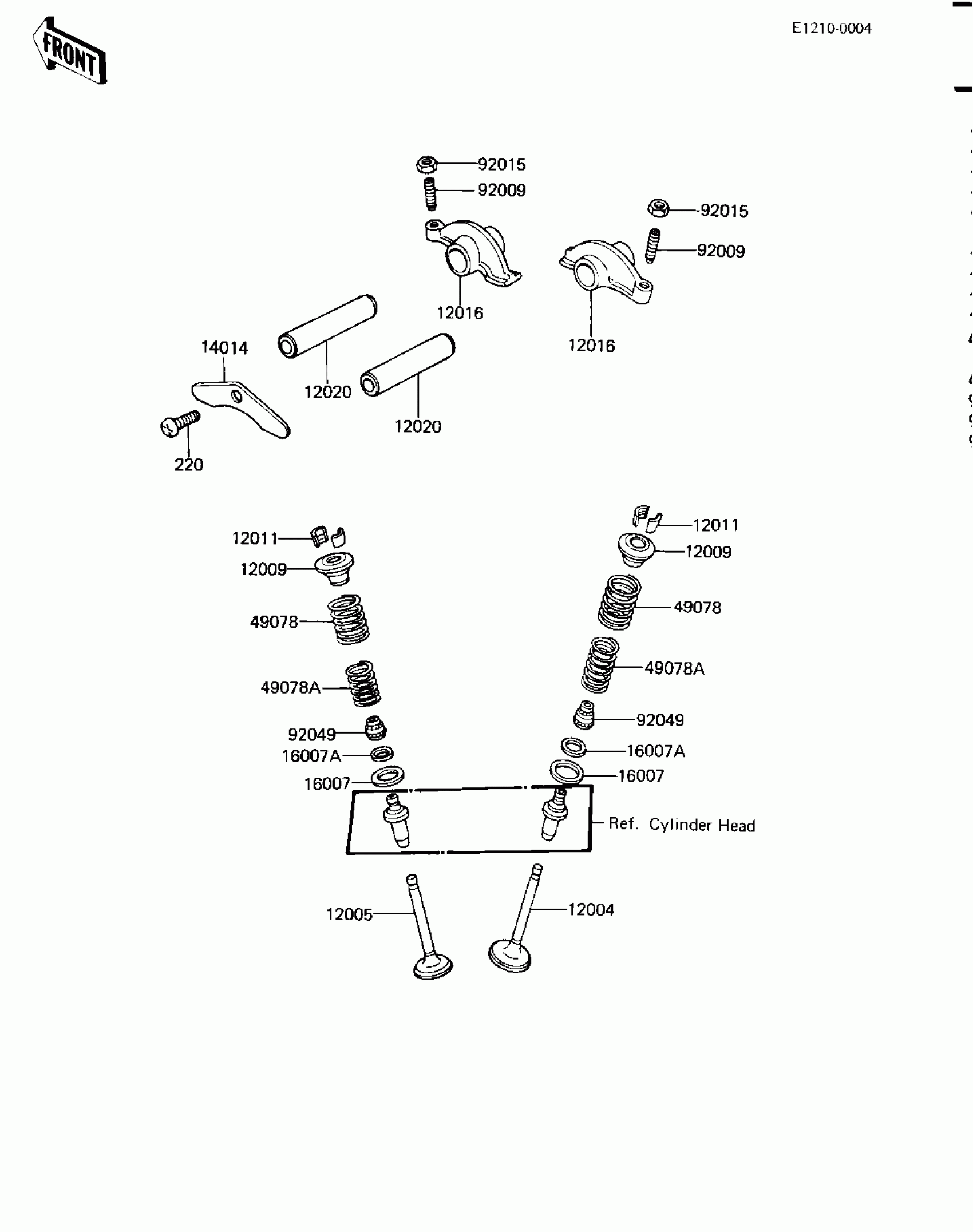

Kawasaki CSR Belt ROCKER ARMS/VALVES Diagram

Description

Price

12004

VALVE,INLET

12004-1006

Unavailable

12005

VALVE,EXHAUST

12005-1005

$70.65

12009

RETAINER,VALVE SPRING

12009-006

$11.50

12011

COLLET,RETAINER

12011-004

$5.46

12016

ARM,ROCKER

12016-012

Unavailable

12020

SHAFT,ROCKER ARM

12020-004

$14.51

14014

PLATE,POSITIONING

14014-034

$8.51

16007

SEAT,VLV OUTER SPRING

12010-005

$8.12

16007A

SEAT,VLV INNER SPRING

12010-006

Unavailable

49078

SPRING,OUTER VALVE

12007-013

$16.53

49078A

SPRING,INNER VALVE

12007-014

$16.53

92009

SCREW,6MM

92013-009

$6.57

92015

NUT,6MM

92016-061

$4.69

92049

SEAL-OIL,RV37129.5

92049-016

$18.35

220

SCREW-PAN-CROS,6X14

220B0614

$1.48
