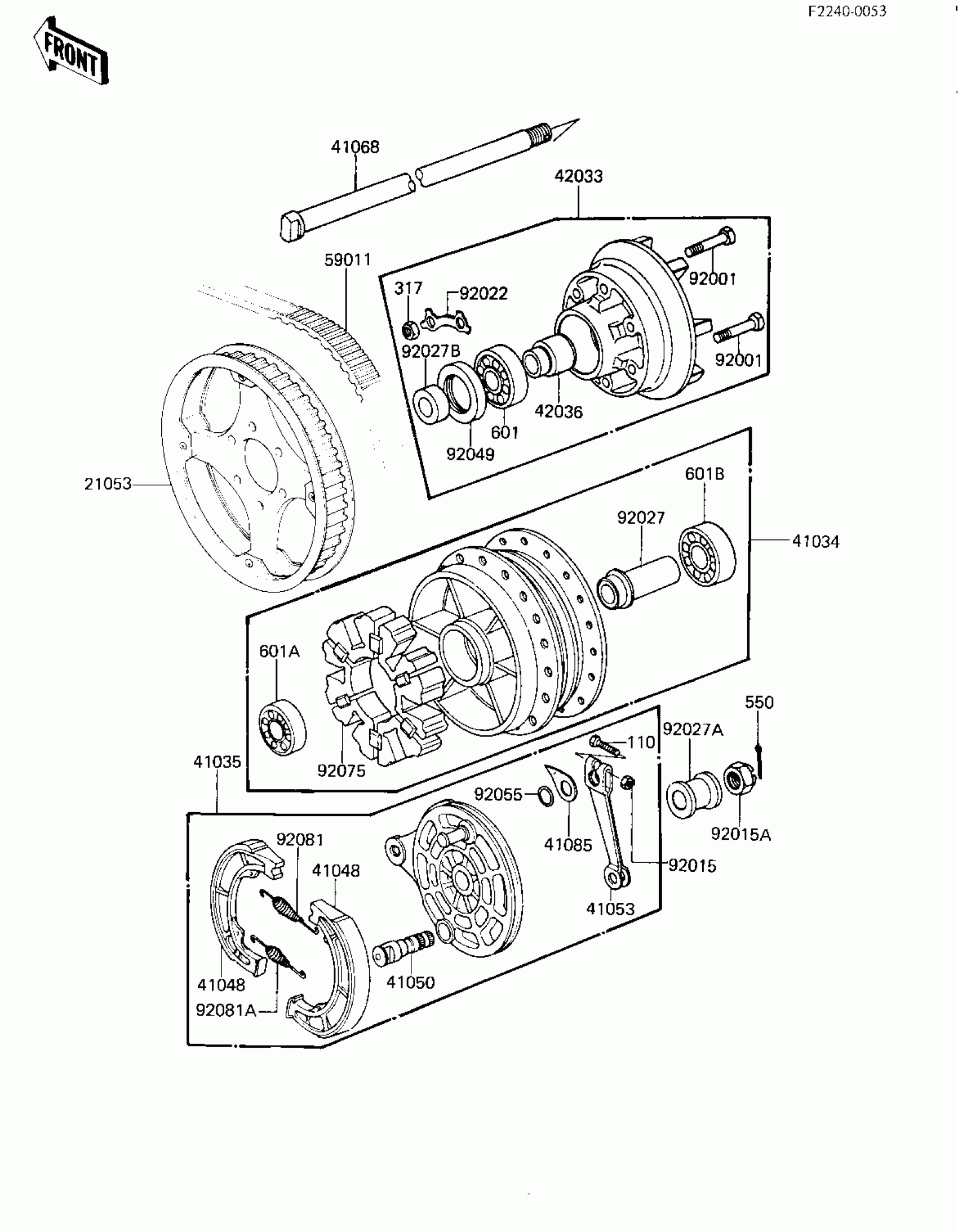

Kawasaki CSR Belt REAR HUB/BRAKE/BELT Diagram

#

Description
Price

21053

SPROCKET,REAR 58T

21053-1011

$206.26

41034

DRUM ASSY,REAR

42005-057

Unavailable

41035

RR BRAKE PANEL ASSY

41035-1090

Unavailable

41048

SHOE,BRAKE

42019-010

$38.07

41050

CAM SHAFT,REAR BRAKE

42026-026

Unavailable

41053

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

41068

AXLE,REAR

41068-1061

$44.48

41085

INDICATOR,BRAKE SHOE

41085-013

$14.51

42033

COUPLING-ASSY,REAR HU

42033-1043

$190.24

42036

SLEEVE,RR HUB COUPLING

42036-030

$30.24

59011

BELT,DRIVE,125T

59011-1011

$543.47

92001

BOLT,8X41

92001-1478

$3.47

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,CASTLE,14MM

42045-020

$9.91

92022

WASHER,SPROCKET LOCK

92088-019

$6.22

92027

SPACER,REAR HUB BEARG

42010-037

Unavailable

92027A

COLLAR,REAR AXLE

42032-076

$15.87

92027B

COLLAR-REAR HUB,15X26

92027-1349

$18.13

92049

SEAL-OIL,26X42X8

92050-060

$18.15

92055

RING-O,BRAKE CAM

92055-004

$4.80

92075

SHOCK DAMPER,REAR HUB

42014-030

$7.68

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92081A

SPRING,BRAKE SHOE

92081-1550

$9.49

110

BOLT-UPSET

112G0630

$1.36

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

550

PIN-COTTER,3.0X25

550D3025

$0.58

601

BEARING-BALL,#6004C3

601B6004

$12.47

601A

BEARING-BALL,#6202C3

601B6202

$8.64

601B

BEARING BALL #6302Z

601B6302Z

$27.38
