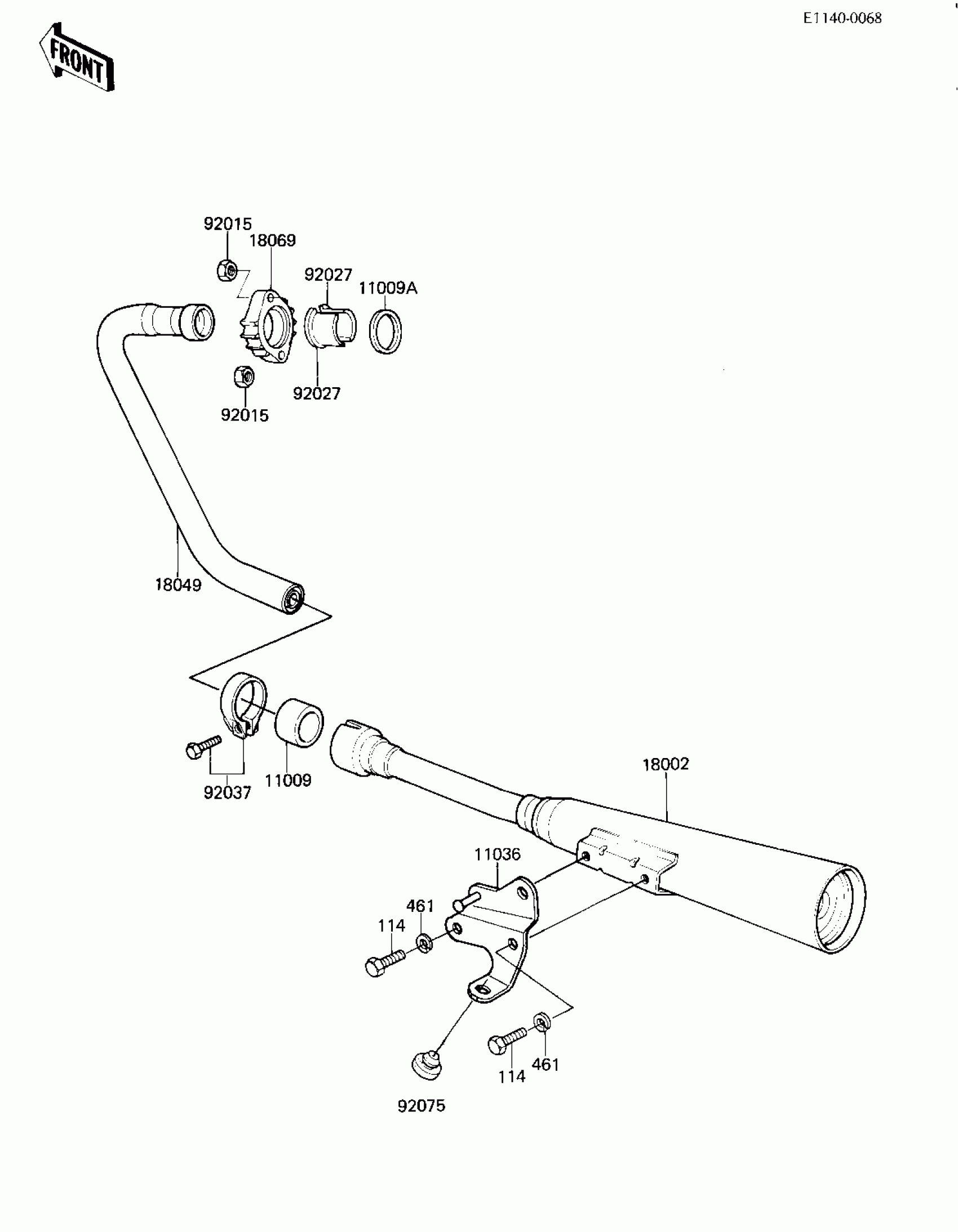

Kawasaki CSR Belt MUFFLER Diagram

Description

Price

11009

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

11036

BRACKET-MUFFLER

11036-1195

Unavailable

18002

BODY-COMP-MUFFLER

18002-1448

$551.49

18049

PIPE-EXHAUST

18049-1387

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1014

$18.82

92015

NUT,8MM

92015-1143

$0.65

92027

COLLAR,EXHAUST PIPE

92027-264

$4.73

92037

CLAMP

92037-1226

$15.89

92075

DAMPER

92075-015

$5.00

114

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

461

WASHER SPRING 8MM

461F0800

$0.40
