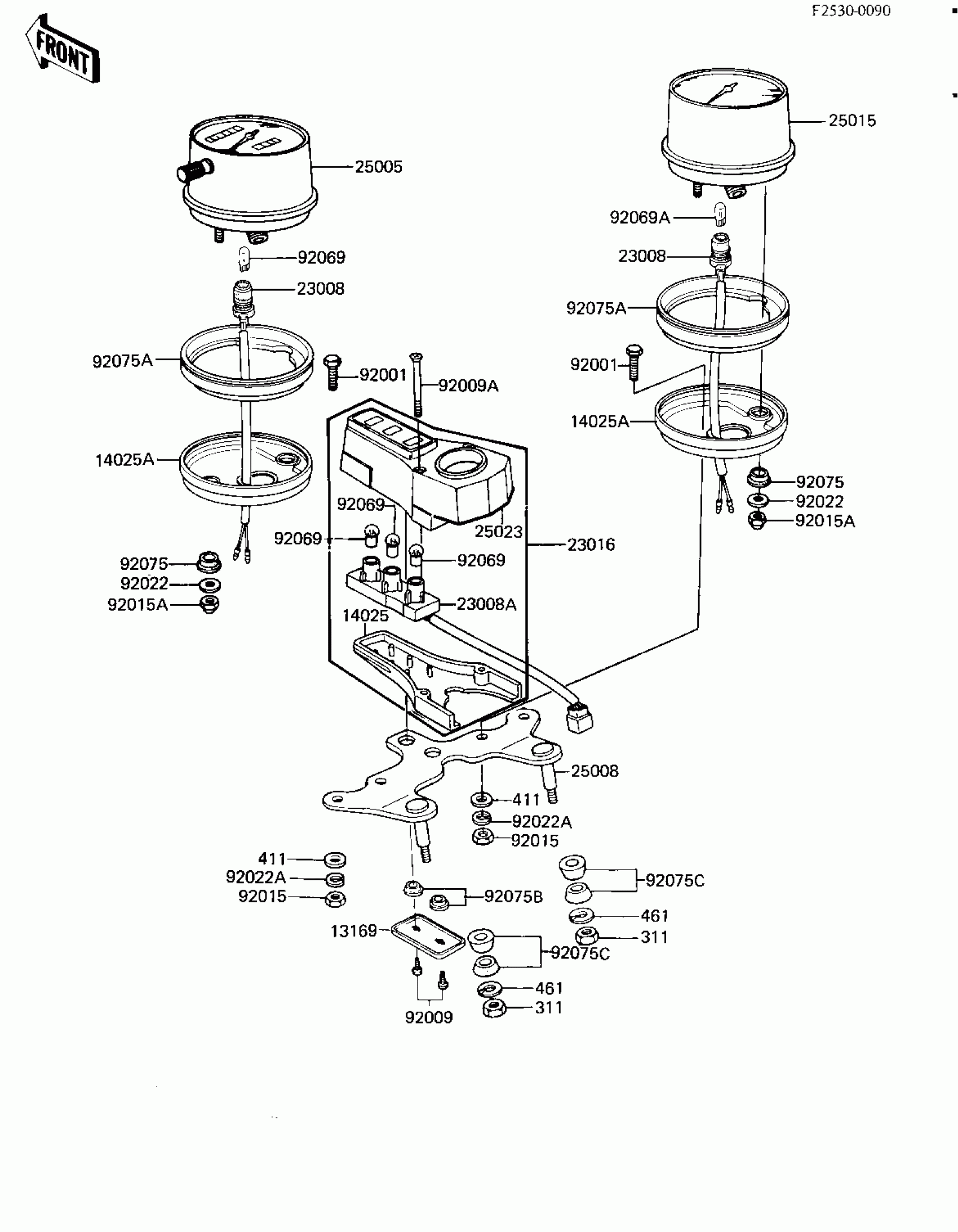

Kawasaki CSR Belt METERS Diagram

#

Description
Price

13169

PLATE,PILOT LAMP

13169-1136

Unavailable

14025

COVER,METER BRACKET

14025-1101

Unavailable

14025A

COVER,METER

25012-025

$29.38

23008

SOCKET-ASSY

23008-1116

$14.55

23008A

SOCKET ASSY,INDICATOR

25011-056

$22.62

23016

LAMP ASSY,PILOT

23016-1017

$70.85

25005

SPEEDOMETER,MPH

25005-1060

$437.74

25008

BRACKET,METER

25008-1013

$59.73

25015

TACHOMETER ASSY

25015-1016

$238.59

25023

COVER,INDICATOR LAMP

25023-1018

$16.15

92001

BOLT,HEX HEAD,6X14

92003-204

$3.86

92009

SCREW,TAPPING,4X10

92009-1040

$3.69

92009A

SCREW-CSK-RD-CROS,4X45

222C0445

$2.73

92015

NUT

92015-078

Unavailable

92015A

NUT-CAP

322C0500

$3.60

92022

WASHER,5.2X16X1.2

25009-004

$3.65

92022A

WASHER-SPRING,6MM,BLACK

461K0600

$0.64

92069

BULB 12V 3W

92069-018

$4.87

92069A

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER,METER

25019-013

$5.72

92075A

SHOCK DAMPER,SPEEDMET

25019-031

Unavailable

92075B

DAMPER,8MM

92075-1138

$3.65

92075C

DAMPER RUBBER,METER

92075-248

Unavailable

311

NUT 6MM

311B0600

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
