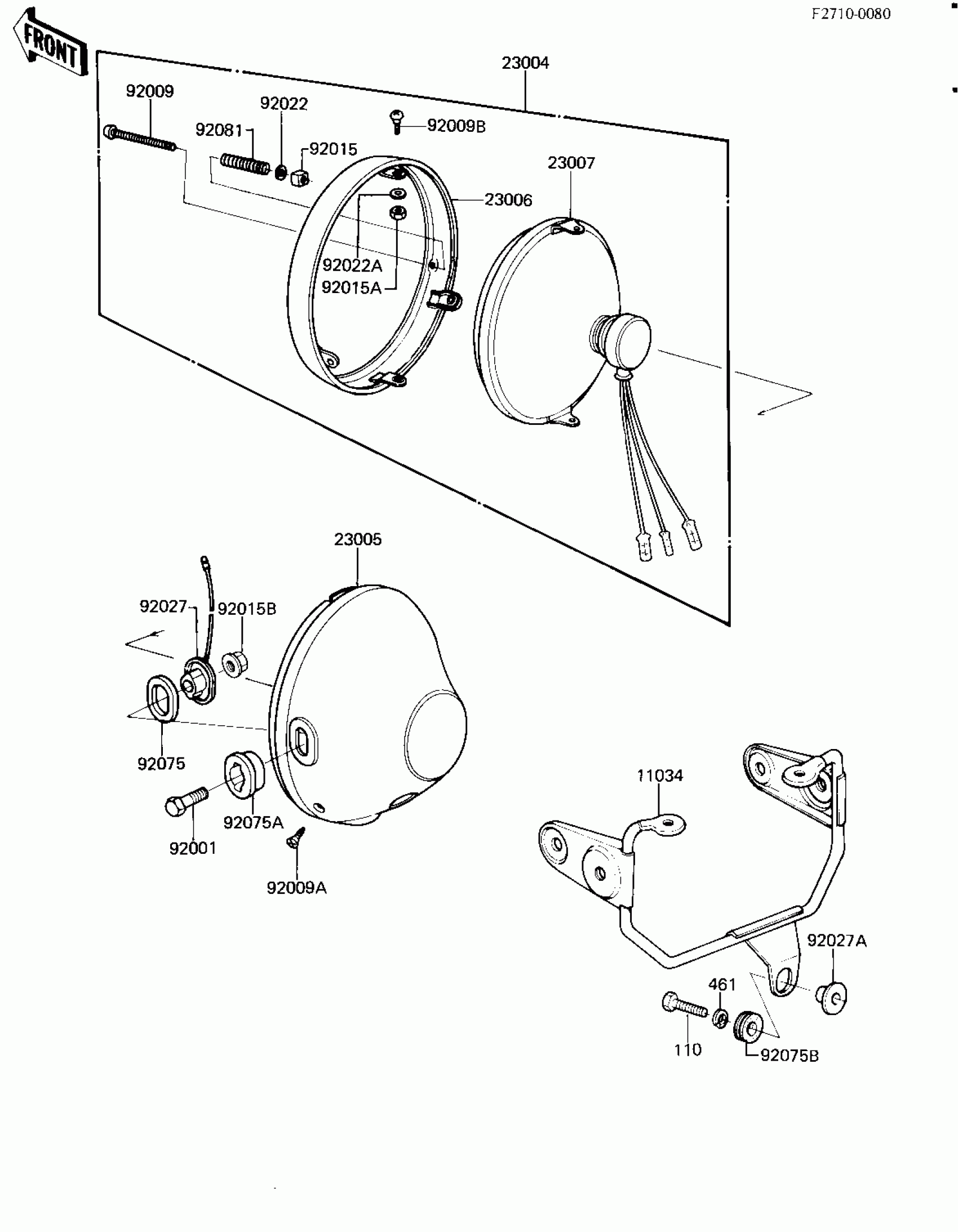

Kawasaki CSR Belt HEADLIGHT Diagram

#

Description
Price

11034

BRACKET,HEAD LAMP

11034-1691

Unavailable

23004

LAMP UNIT,HEAD

23003-025

$146.22

23005

BODY,HEAD LAMP BLACK

23005-1013

$106.86

23006

RIM-HEAD LAMP

23006-034

Unavailable

23007

SEALED BEAM UNIT

23007-043

$154.18

92001

BOLT,HEX HEAD,10X30

92007-041

Unavailable

92009

SCREW,FOCUS ADJUSTING

23019-021

$4.69

92009A

SCREW,SPECIAL,5X14

23019-022

$2.12

92009B

SCREW,PAN HEAD,5X12

23019-023

$5.43

92015

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015A

NUT,5MM

23020-023

Unavailable

92015B

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,4.1X8X0.8

23021-004

$2.91

92022A

WASHER,PLAIN,5MM

23021-012

$5.43

92027

COLLAR

23076-005

$49.11

92027A

COLLAR,L=13.1

92027-251

Unavailable

92075

DAMPER RUBBER A

23066-001

Unavailable

92075A

DAMPER RUBBER

23066-005

Unavailable

92075B

DAMPER RUBBER,RR FENR

92075-209

$4.69

92081

SPRING,FOCUS ADJUSTING

23014-005

$3.62

110

BOLT-UPSET

112G0625

$3.62

461

WASHER SPRING 6MM

461F0600

$0.69
