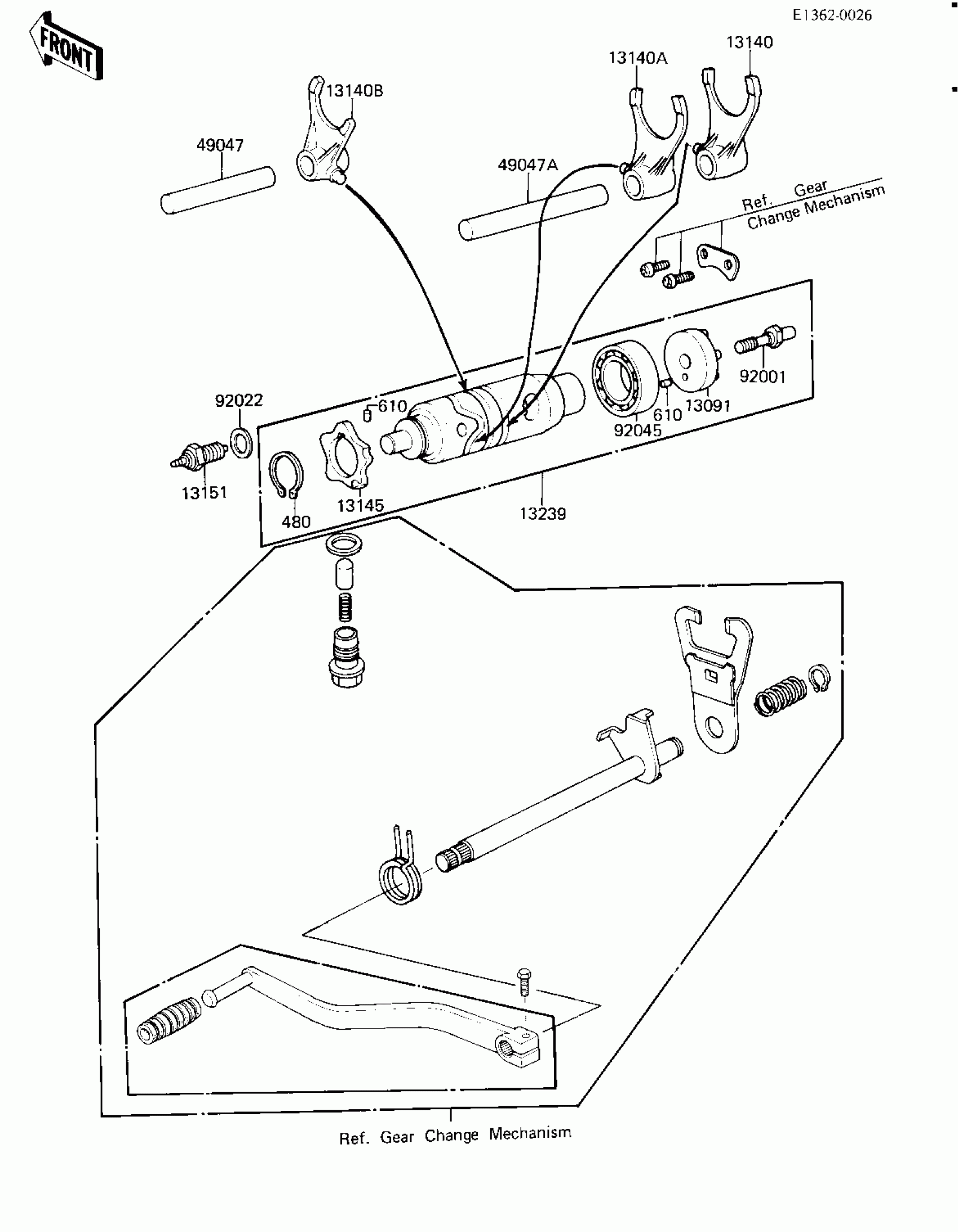

Kawasaki CSR Belt GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

PLATE,GEAR CHANGE

13142-019

Unavailable

13140

SHIFT FORK,LOW

13140-073

Unavailable

13140A

SHIFT FORK,2ND&3RD

13140-074

Unavailable

13140B

SHIFT FORK,4TH&TOP

13140-075

Unavailable

13145

DISK,SHIFT DRUM

13145-1002

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM ASSY,GEAR SHIFT

13239-1036

Unavailable

49047

ROD,SHIFT 71.7M/M

49047-1002

Unavailable

49047A

ROD-SHIFT,L=93.7

49047-1003

Unavailable

92001

BOLT

92001-166

$3.45

92022

GASKET,10.5X16X1

92065-058

$3.96

92045

BEARING-BALL,#6905

92045-036

$27.88

480

CIRCLIP-TYPE-C,24MM

480J2400

$6.32

610

ROLLER,4X6

610A0406

$4.31
