Description

Price

41034

DRUM-ASSY,FR BRK,BUFF

41034-048-80

$259.52

41035

PANEL-ASY,FR BRK

41035-1028

$245.90

41048

SHOE,BRAKE

42019-011

$37.39

41050

CAM SHAFT,FR BRAKE

41050-1015

$35.39

41053

LEVER,FR BRAKE CAM

41053-1017

$56.95

41060

GEAR,SPEEDOMETER 29T

41060-1027

Unavailable

41060A

PINION,SPEEDOMET,11T

41060-1028

$18.91

41064

RECIEVER GEAR

41064-003

Unavailable

41068

AXLE,FRONT

41068-1029

$52.31

41085

INDICATOR

41085-005

$12.96

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,14MM

92015-1407

$9.91

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92027

SPACER FR HUB BEARING

41039-004

$9.58

92027A

COLLAR,FR AXLE

92027-1218

$29.95

92028

BUSHING,SPEEDOMETER

92028-1066

$11.29

92049

OIL SEAL RR BRK DRUM

92050-008

Unavailable

92049A

OIL SEAL F BRK PANEL

92050-010

$20.98

92081

SPRING,BRAKE SHOE

42020-004

$8.51

92093

SEAL,BRAKE CAM

41051-001

$4.26

110

BOLT-UPSET,6X35

112G0635

Unavailable

601

BEARING-BALL,#6202C3

601B6202

$8.64

601A

BEARING BALL #6202Z

601B6202Z

Unavailable

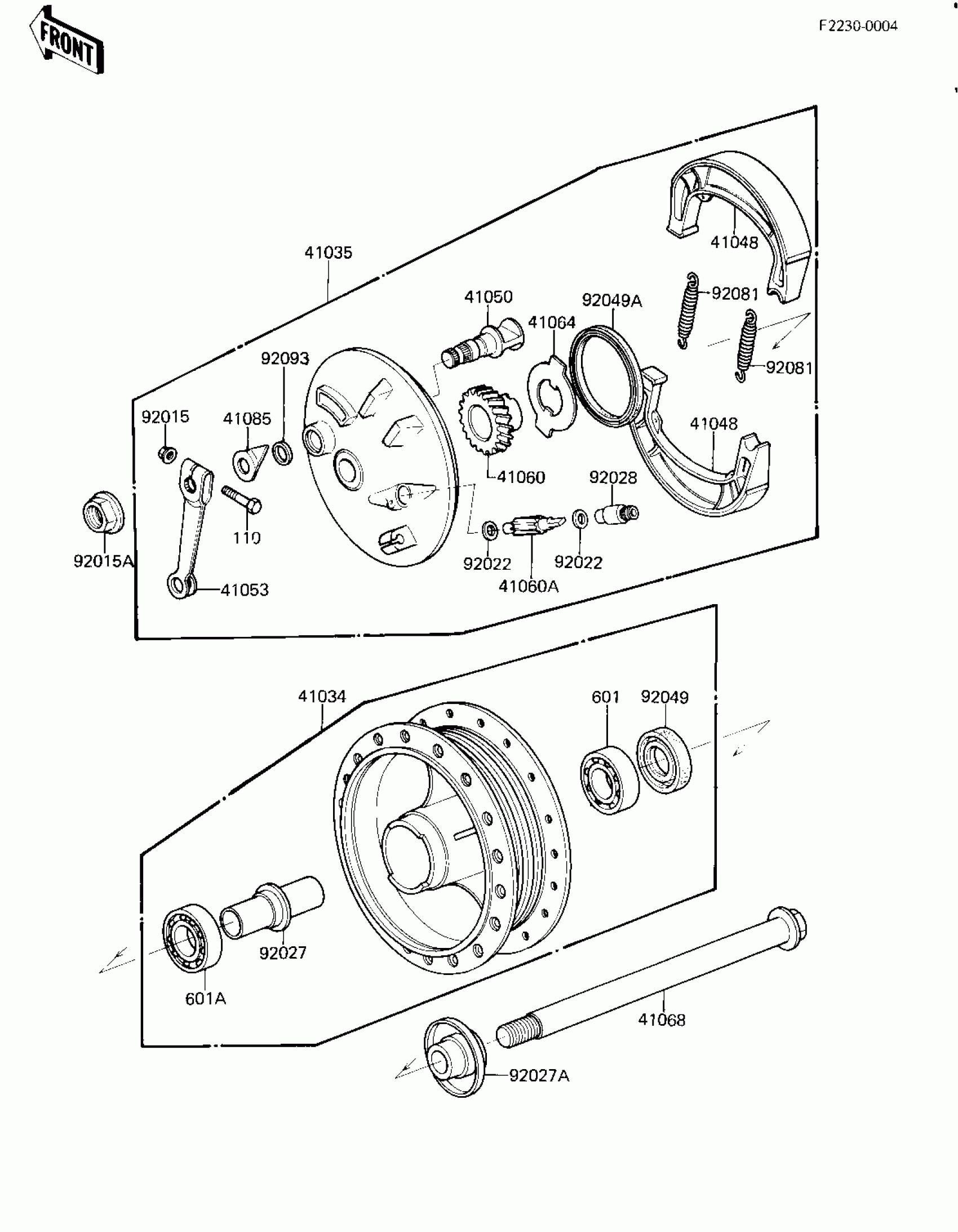

Kawasaki CSR Belt FRONT HUB/BRAKE Diagram

DRUM-ASSY,FR BRK,BUFF

PANEL-ASY,FR BRK

SHOE,BRAKE

CAM SHAFT,FR BRAKE

LEVER,FR BRAKE CAM

GEAR,SPEEDOMETER 29T

PINION,SPEEDOMET,11T

RECIEVER GEAR

AXLE,FRONT

INDICATOR

NUT,6MM

NUT,14MM

WASHER,5.1X9X0.4

SPACER FR HUB BEARING

COLLAR,FR AXLE

BUSHING,SPEEDOMETER

OIL SEAL RR BRK DRUM

OIL SEAL F BRK PANEL

SPRING,BRAKE SHOE

SEAL,BRAKE CAM

BOLT-UPSET,6X35

BEARING-BALL,#6202C3

BEARING BALL #6202Z
