Description

Price

13091

HOLDER,FOOTREST

13091-1003

Unavailable

34003

HOLDER,REAR FOOTREST

34003-1025

$34.78

34003A

HOLDER,STEP

34003-1118

$63.71

34028

STEP-ASSY,FR,LH

34027-1106

Unavailable

34028A

STEP-ASSY,FR,RH

34027-1107

Unavailable

92001

BOLT,HEX HEAD,10X40

92003-213

Unavailable

92015

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER-PLAIN (OPT)

92022-199

Unavailable

92022A

WASHER,25X36X2.3

92022-250

$5.00

92043

PIN,6X28

92043-1464

$8.10

92043A

PIN,8X35.5

92043-115

$9.51

92075

DAMPER,RUBBER

92075-1029

Unavailable

92075A

DAMPER,RUBBER

92075-306

Unavailable

92075B

RUBBER,FOOTREST

92076-027

$37.21

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

461

WASHER SPRING 8MM

461F0800

$0.40

550

PIN-COTTER,2.0X12

550D2012

$1.11

550A

PIN-COTTER,2.5X15

550D2515

$0.47

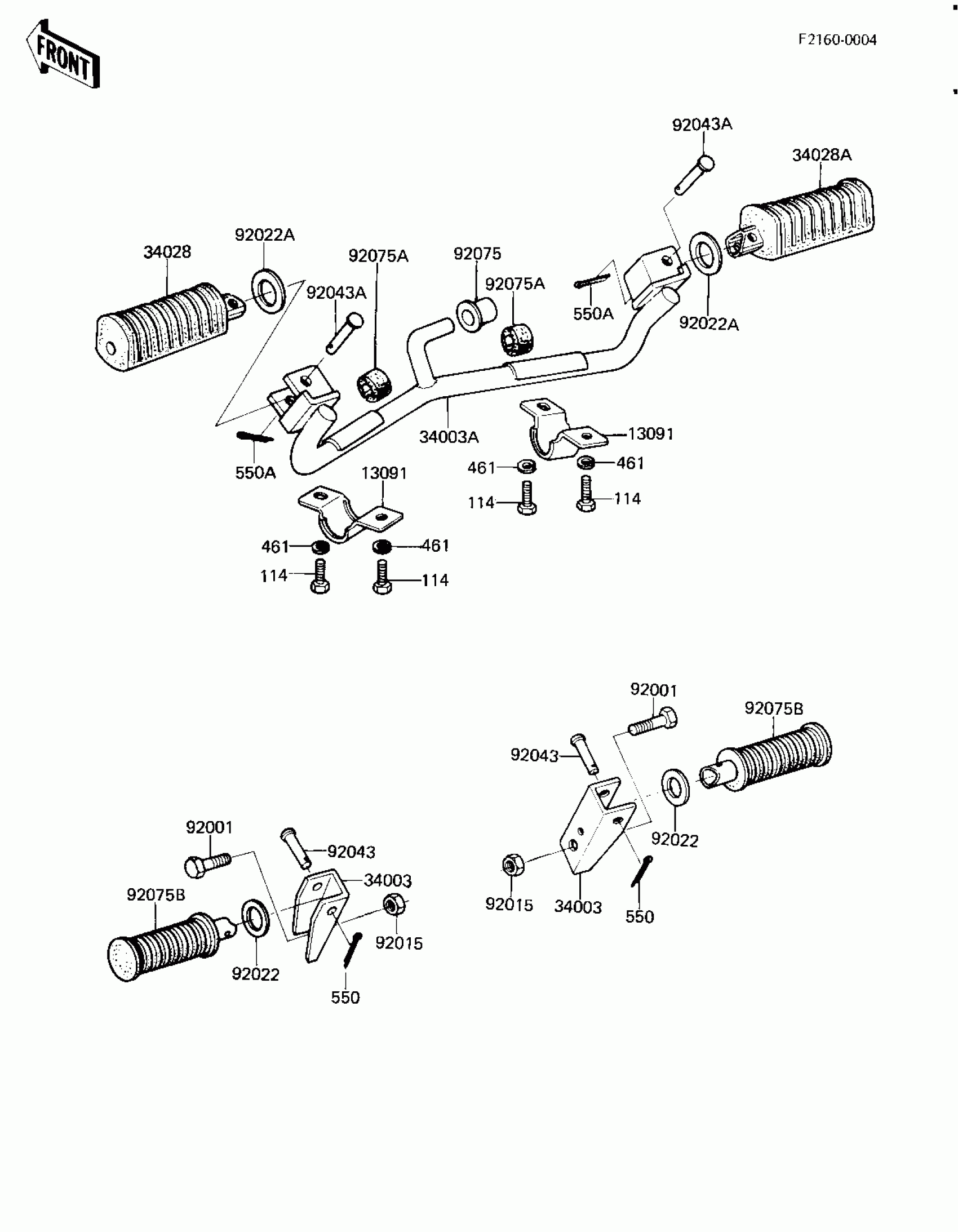

Kawasaki CSR Belt FOOTRESTS Diagram

HOLDER,FOOTREST

HOLDER,REAR FOOTREST

HOLDER,STEP

STEP-ASSY,FR,LH

STEP-ASSY,FR,RH

BOLT,HEX HEAD,10X40

NUT,LOCK,10MM

WASHER-PLAIN (OPT)

WASHER,25X36X2.3

PIN,6X28

PIN,8X35.5

DAMPER,RUBBER

DAMPER,RUBBER

RUBBER,FOOTREST

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

PIN-COTTER,2.0X12

PIN-COTTER,2.5X15
