Description

Price

35001

FENDER-FR

35001-1026

$178.73

35019

FLAP,FENDER

35019-1032

$28.25

35022

FENDER-RR

35022-1051

Unavailable

35023

FENDER-RR

35023-1041

$58.26

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK 6MM

92017-014

$7.51

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR

92027-194

$5.52

92027A

COLLAR,L=13.1

92027-251

Unavailable

92071

GROMMET,13MM

92071-099

$4.65

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92075A

DAMPER

92075-277

$2.84

110

BOLT-UPSET,6X16

112G0616

$1.10

110A

BOLT 6X22

112B0622

$3.48

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40

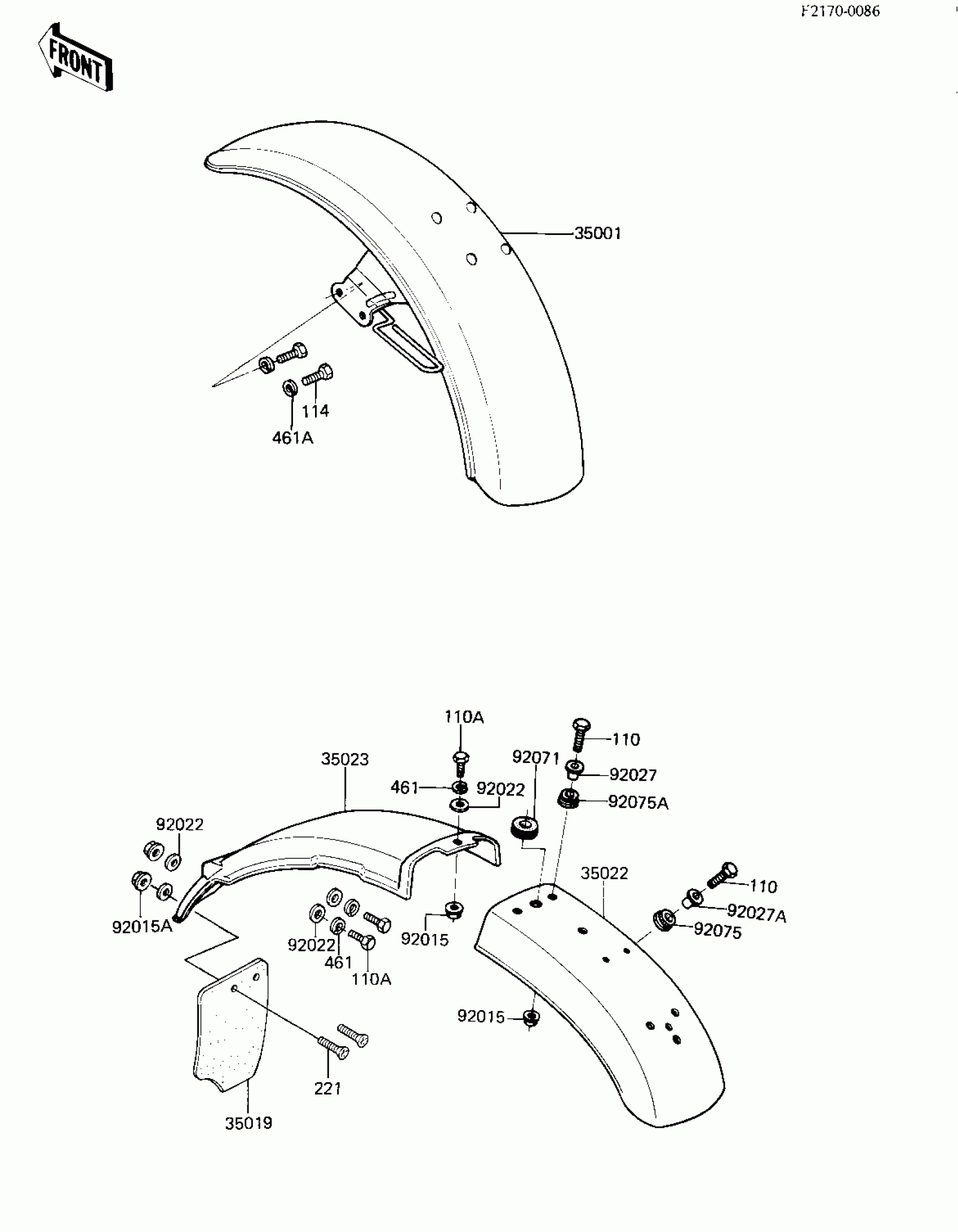

Kawasaki CSR Belt FENDERS Diagram

FENDER-FR

FLAP,FENDER

FENDER-RR

FENDER-RR

NUT,FLANGED,6MM

NUT,LOCK 6MM

WASHER,6.5X20X1.6

COLLAR

COLLAR,L=13.1

GROMMET,13MM

DAMPER RUBBER,RR FENR

DAMPER

BOLT-UPSET,6X16

BOLT 6X22

BOLT-SMALL-UPSET,8X16

SCREW-CSK-CROS,6X16

WASHER SPRING 6MM

WASHER SPRING 8MM
