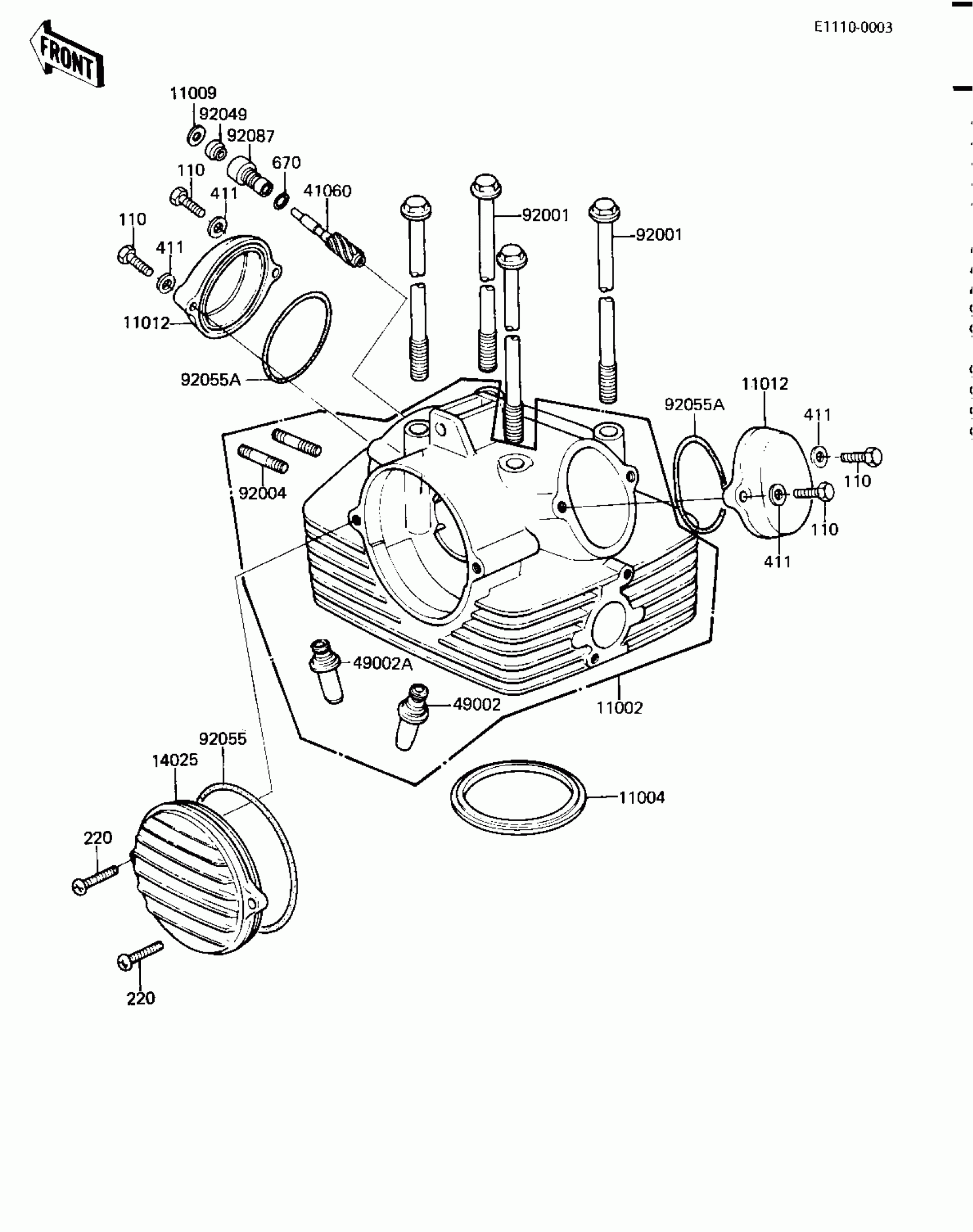

Kawasaki CSR Belt CYLINDER HEAD/COVERS Diagram

Description

Price

11002

HEAD-ASSY-CYLINDER

11002-5025

Unavailable

11004

GASKET,CYLINDER HEAD

11004-1002

Unavailable

11009

GASKET,TACHO GEAR

92065-104

Unavailable

11012

CAP,ROCKER ARM

11027-004-2H

Unavailable

14025

COVER,CAM

14025-1276

Unavailable

41060

GEAR,TACHOMETER

13223-012

Unavailable

49002

GUIDE,INLET VALVE

12013-003

Unavailable

49002A

GUIDE,EXHAUST VALVE

49002-1010

Unavailable

92001

BOLT,8X233

92003-220

$17.92

92004

STUD,8X30

92004-1069

$7.51

92049

SEAL-OIL

92050-075

$11.39

92055

"O" RING,99M/M

92055-107

$10.37

92055A

RING-O,53.5X2.6

92055-112

$6.63

92087

GUIDE,TACHOMETER GEAR

92087-011

$14.24

110

BOLT-UPSET

112G0625

$3.62

220

SCREW PAN HEAD 6X25

220B0625

$2.60

411

WASHER PLAIN 6MM

411B0600

$2.84

670

O RING,10MM

670D1510

$4.69
