Partiron

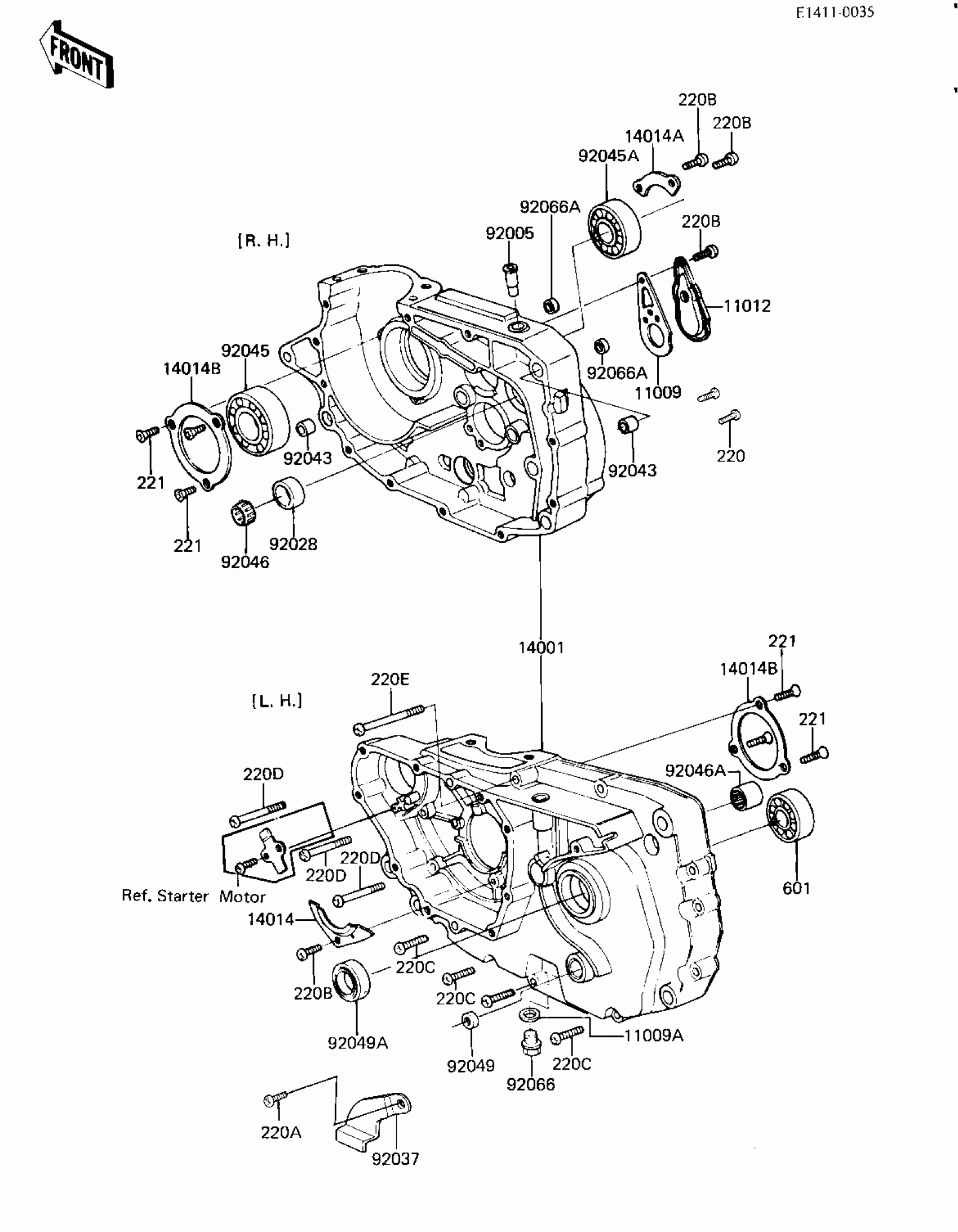

Kawasaki CSR Belt CRANKCASE Diagram

#

Description
Price

11009

GASKET

16079-002

Unavailable

11009A

GASKET,12X22X2

92065-097

$0.74

11012

CAP

16078-002

$7.59

14001

SET CRANKCASE

14001-5101

Unavailable

14014

PLATE,POSITIONING

14014-035

$5.24

14014A

PLATE-POSITION

14014-037

$4.60

14014B

PLATE-POSITION,CRANK BEARING

14014-1004

$11.61

92005

FITTING,BREATHER

14067-006

$21.09

92028

BUSHING,23X30X13

92028-132

$38.06

92037

CLAMP,HARNESS

92037-1273

$5.27

92043

PIN,DOWEL,14X14

92042-032

Unavailable

92045

BEARING-BALL,#6306

92045-037

$42.66

92045A

BEARING,BALL#6006

92045-038

Unavailable

92046

BEARING-NEEDLE

92046-1184

$21.25

92046A

BRG,NEEDLE,HMK1515B

92046-060

$18.53

92049

SEAL-OIL

92050-082

$8.58

92049A

SEAL-OIL,TC32457

92049-1159

$8.60

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066A

PLUG

92066-1282

$6.51

220

SCREW-PAN-CROS,6X8

220B0608

$0.59

220A

SCREW PAN HEAD 6X10

220B0610

$3.14

220B

SCREW-PAN-CROS,6X14

220B0614

$1.48

220C

SCREW PAN HEAD 6X30

220B0630

$3.41

220D

SCREW PAN HEAD 6X55

220B0655

$4.12

220E

SCREW-PAN-CROS,6X75

220B0675

$4.66

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

601

BEARING-BALL,#6205C3

601B6205

$19.57
