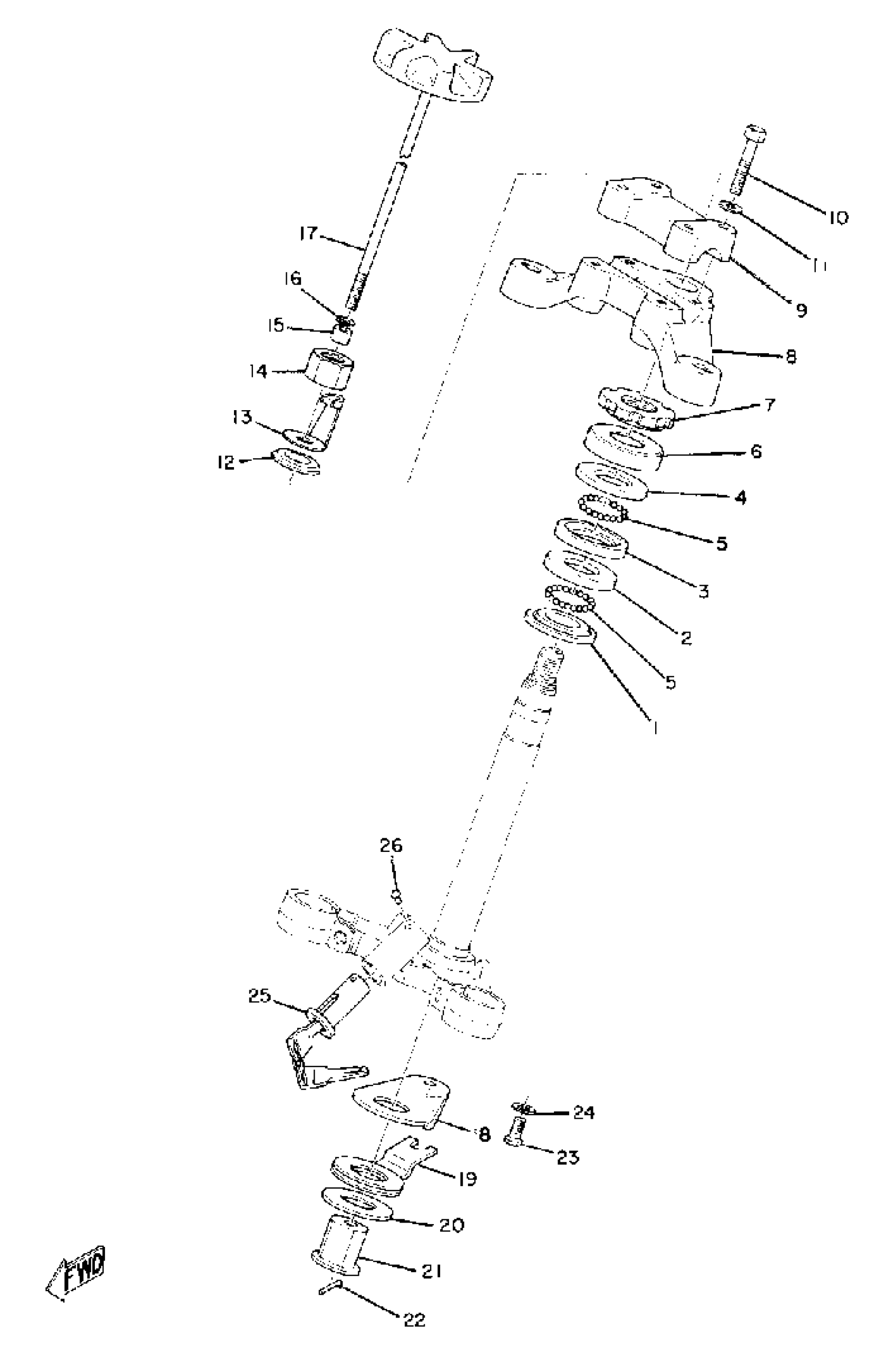

Yamaha CS5 (CS5) 1972 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

RACE, BALL 2

B6E-23412-00-00

$13.49

3

RACE,BALL 2

4FP-F3412-10-00

Unavailable

4

RACE, BALL 1

4FP-F3411-20-00

$9.99

5

BALL

93501-04011-00

$8.49

6

COVER, BALL RACE

136-23415-00-00

$8.99

7

NUT

90179-25004-00

$24.99

8

CROWN, HANDLE

(337-23435-00-98)

Unavailable

9

HOLDER HANDLE UPR

164-23441-01-38

Unavailable

10

BOLT

97013-08035-00

$5.60

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

WASHER, SPEC''L SHAP

90209-17057-00

Unavailable

13

NO LONGER AVAILABLE

246-23428-00-00

Unavailable

14

NUT (95301-16600)

95303-16600-00

Unavailable

15

WASHER, PLATE 1412342700

90202-06008-00

$4.72

16

WASHER, PLATE

90201-06061-00

Unavailable

17

SHAFT, DAMPER

(307-23419-00-00)

Unavailable

18

PLATE, DAMPER 1

(174-23421-00-00)

Unavailable

19

PLATE, DAMPER 2

(183-23422-00-00)

Unavailable

20

DAMPER, FRICTION

(174-23425-00-00)

Unavailable

21

NO LONGER AVAILABLE (174-23453-00)

90179-06032-00

Unavailable

22

CLIP (156-83525-00)

90468-10050-00

Unavailable

23

BOLT(3JP)

97017-06010-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

STEERING LOCK ASSEMBLY

(122-23480-01-00)

Unavailable

26

RIVET

(122-23483-00-00)

Unavailable
