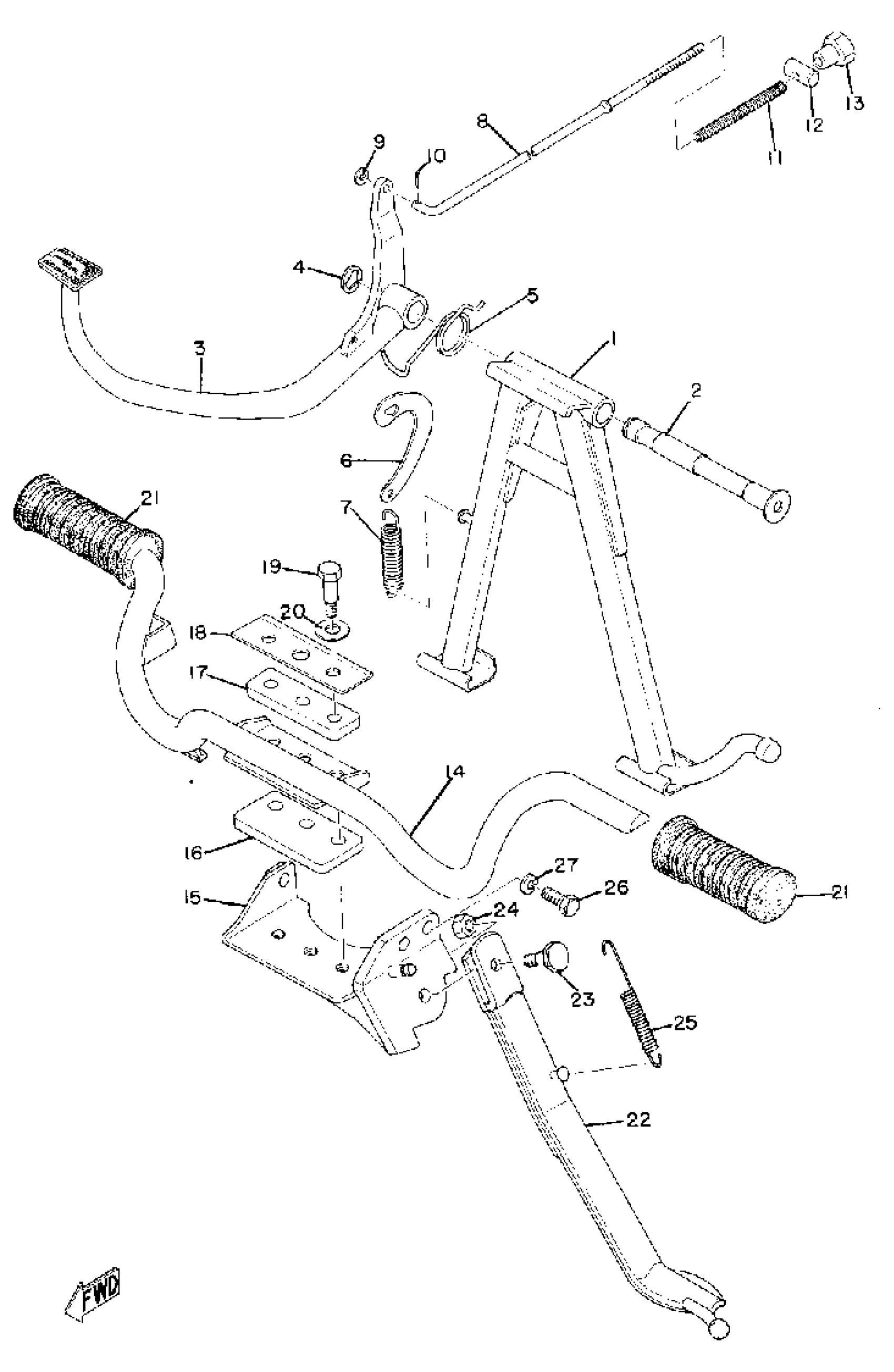

Yamaha CS5 (CS5) 1972 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

337-27211-00-00

Unavailable

2

SHAFT, MAIN STAND

(122-27112-00-00)

Unavailable

3

PEDAL, BRAKE

1E8-27211-00-00

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

SPRING 1832721600

90508-32056-00

$7.49

6

LINK, MAIN STAND

(174-27115-00-00)

Unavailable

7

SPRING TENSION 174271160000

90506-32056-00

Unavailable

8

ROD, BRAKE

337-27231-00-00

Unavailable

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

PIN, COTTER

91490-20025-00

$1.99

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

PIN 1562723700

90249-12008-00

$8.49

13

NUT (25K)

90179-06411-00

$8.49

14

FOOTREST 1

(337-27411-00-00)

Unavailable

15

BRACKET, FOOTREST 1

(337-27412-00-00)

Unavailable

16

DAMPER, FOOTREST 2

(132-27424-00-00)

Unavailable

17

DAMPER, FOOTREST

(132-27414-00-00)

Unavailable

18

WASHER, FOOTREST

(132-27417-00-00)

Unavailable

19

BOLT 132274160000

90109-08193-00

Unavailable

20

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

21

COVER, FOOT REST

156-27413-00-00

Unavailable

22

STAND, SIDE

(337-27311-00-00)

Unavailable

23

BOLT 122273170100

90109-08032-00

Unavailable

24

. NUT

95380-08700-00

Unavailable

25

SPRING TENSION 146273160000

90506-29052-00

Unavailable

26

BOLT, HEXAGON

97013-08020-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
