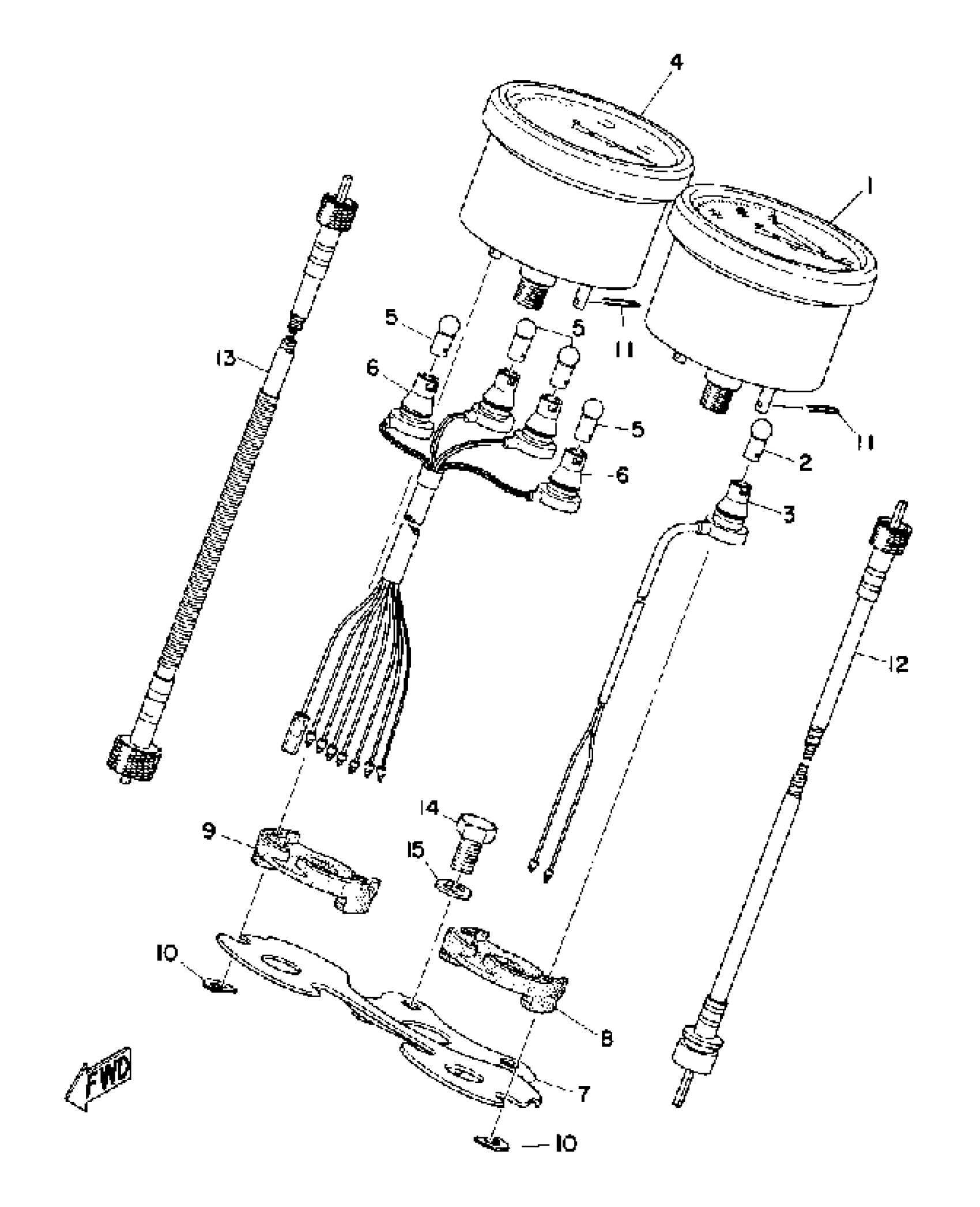

Yamaha CS5 (CS5) 1972 SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(307-83510-40-00)

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

(235-83536-21-00)

Unavailable

4

TACHOMETER ASSEMBLY

(337-83540-00-00)

Unavailable

5

BULB (12V-3.4W)

123-83516-21-00

$4.26

6

SOCKET CORD ASSEMBLY

(337-83520-00-00)

Unavailable

7

BRACKET, METER

(337-83519-00-33)

Unavailable

8

DAMPER

214-83523-00-00

Unavailable

9

DAMPER

237-83523-00-00

$9.99

10

WASHER 214835240000

90209-05029-00

Unavailable

11

CLIP (156-83525-00)

90468-10050-00

$3.05

12

SPEEDOMETER CABLE ASSY

2A6-83550-10-00

Unavailable

13

TACHOMETER CABLE

307-83560-00-00

Unavailable

14

BOLT, HEXAGON

97013-08016-00

$1.01

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
