1972 Yamaha CS5 (CS5) Rear Wheel Diagram

← All diagrams

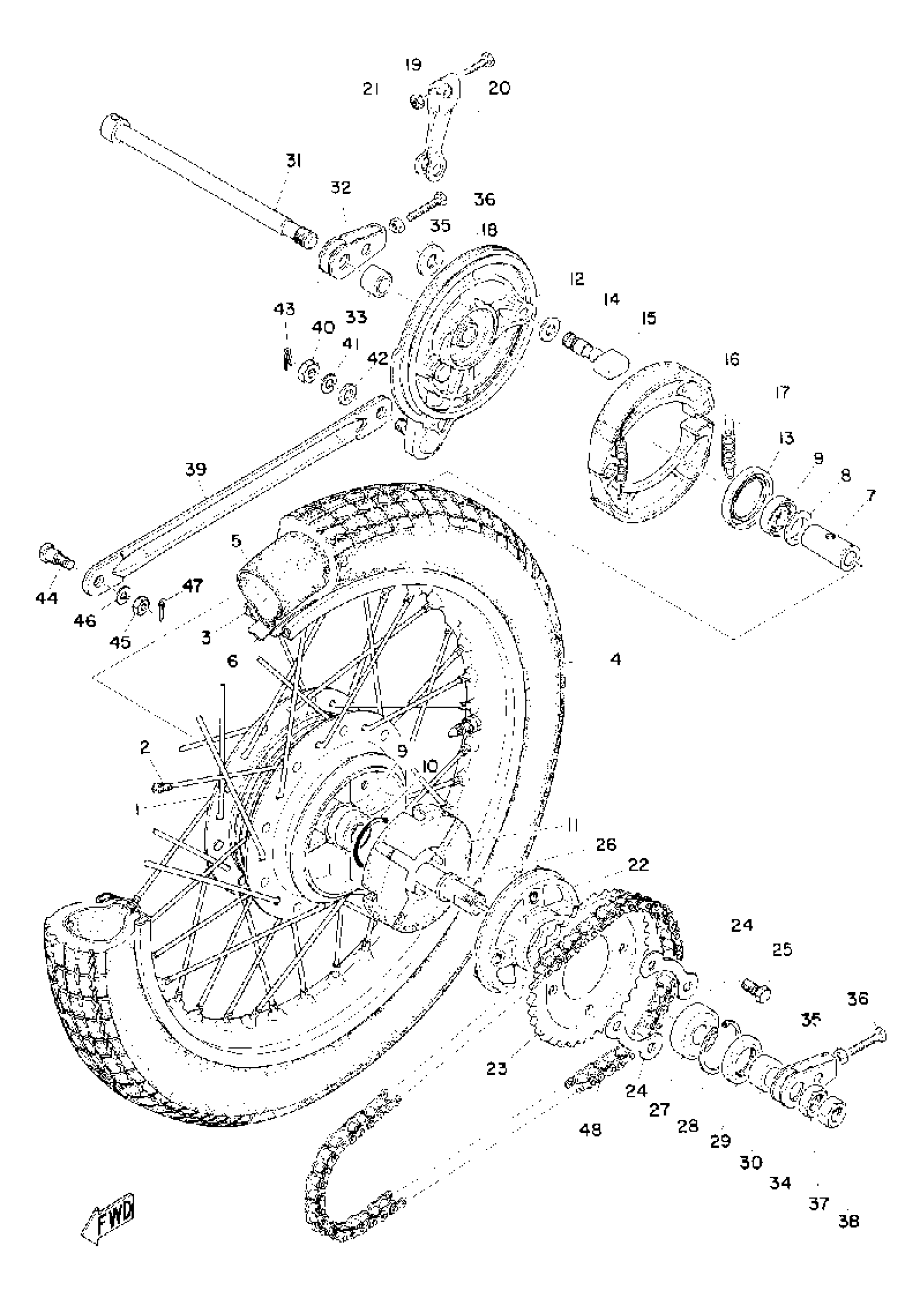

Find the part on the Rear Wheel diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(174-25311-00-00)

1
Out of stock

1

. JOINT, CHAIN

94680-22001-00

1
Out of stock

2

SPOKE SET, REAR

(141-25304-00-00)

1
Out of stock

2

SPOKE SET, INNER 2

(141-25396-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(141-25397-90-00)

1
Out of stock

3

RIM 1.60X18

(94416-18013-00)

1
Out of stock

4

300X18 YOKO Y93C

(94130-18310-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

10

O-RING (132)

93210-41042-00

1

$5.72

In stock

11

. DAMPER

174-25364-00-00

1
Out of stock

12

BRAKE SHOE PLATE ASSY

(397-25320-10-00)

1
Out of stock

13

OIL SEAL, S-TYPE

93101-42018-00

1
Out of stock

14

SHIM, CAMSHAFT

(136-25153-00-00)

1
Out of stock

15

UNAVAILABLE IN PRICE BOOK

136-25351-01-20

1
Out of stock

16

BRAKE SHOE KIT

3GW-W253A-00-00

—
Out of stock

17

—

$8.09

In stock

18

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

19

LEVER, CAMSHAFT

(337-25355-00-00)

1
Out of stock

20

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

CLUTCH, HUB

(174-25366-01-00)

1
Out of stock

23

SPROCKET, DRIVN 37T

(174-25437-20-33)

1
Out of stock

23

SPROCKET,DRIVN 39T

174-25439-20-00

1
Out of stock

23

SPROCKET, DRIVN 40T

(174-25440-20-33)

1
Out of stock

24

WASHER

148-25412-00-00

1
Out of stock

25

BOLT, WASHER BASED

90105-10005-00

1
Out of stock

26

AXLE, SPROCKET

(174-25387-00-00)

1
Out of stock

27

BEARING (22K)

93306-20446-00

—
Out of stock

28

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

29

OIL SEAL, DD-TYPE

(93106-30008-00)

1
Out of stock

30

COLLAR

(90387-20160-00)

1
Out of stock

31

AXLE, WHEEL

(397-25381-00-00)

1
Out of stock

32

PULLER, CHAIN 2

(174-25389-00-00)

1
Out of stock

33

COLLAR

(90387-26197-00)

1
Out of stock

34

PULLER, CHAIN 1

174-25388-00-00

1
Out of stock

35

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

36

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

37

NUT, HEXAGON

90170-20167-00

—
Out of stock

38

NUT

(95303-14600-00)

1
Out of stock

39

BAR, TENSION

(256-25371-00-00)

1
Out of stock

40

NUT (682)

95380-10700-00

1

$5.78

In stock

41

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

42

—

$3.00

In stock

43

CLIP 136253750000

90468-12006-00

—

$5.10

In stock

44

BOLT

90109-08375-00

1
Out of stock

45

NUT(6L2)

95333-08600-00

—

$3.20

In stock

46

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

47

PIN, COTTER

91490-20025-00

—

$1.31

In stock

48

428T 112L

(94514-28112-00)

1
Out of stock
