1972 Yamaha CS5 (CS5) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

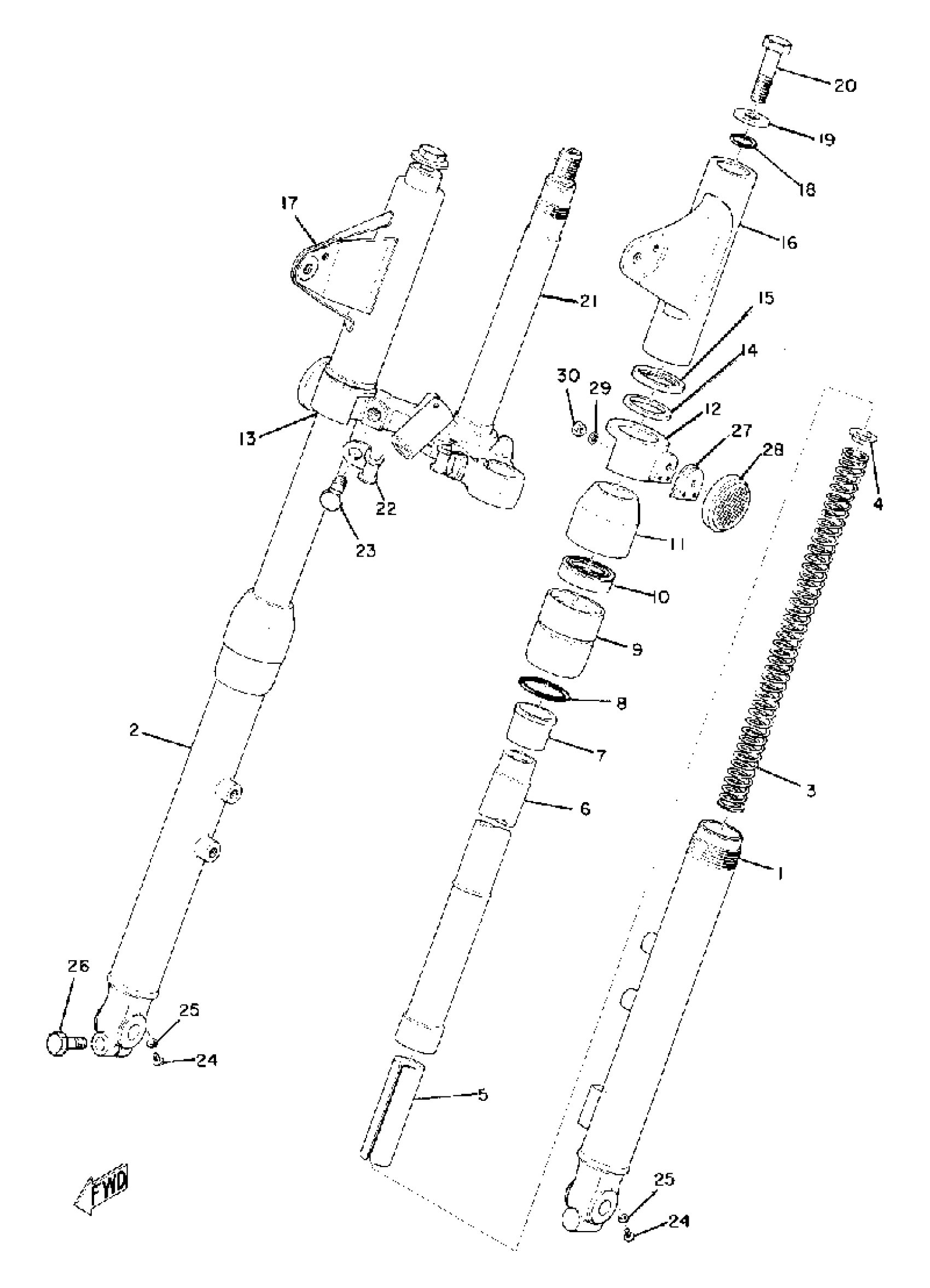

1972 Yamaha CS5 (CS5) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(337-23101-90-00)

1
Out of stock

1

TUBE, OUTER 1

(337-23126-60-93)

1
Out of stock

2

TUBE, OUTER 2

(337-23136-60-93)

1
Out of stock

3

SPRING, FRONT FORK

(337-23141-60-00)

1
Out of stock

4

SEAT, SPRING UPPER

(337-23142-60-00)

1
Out of stock

5

SPACER

(248-23118-00-00)

1
Out of stock

6

TUBE, INNER 1

(337-23124-60-00)

1
Out of stock

7

. METAL, SLIDE 1

(137-23125-01-00)

1
Out of stock

8

. O-RING

137-23147-00-00

1
Out of stock

9

OUTER NUT

(193-23150-40-00)

1
Out of stock

10

OIL SEAL

137-23145-01-00

1

$38.06

In stock

11

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

12

COVER, OUTER 1

(337-23122-60-00)

1
Out of stock

13

COVER, OUTER 2

(337-23132-60-00)

1
Out of stock

14

. GASKET

(437-23163-00-00)

1
Out of stock

15

GUIDE, COVER LOWER

(337-23116-60-00)

1
Out of stock

16

COVER, UPPER 1

(337-23121-60-34)

1
Out of stock

17

COVER, UPPER 2

(337-23131-60-34)

1
Out of stock

18

GASKET

(337-23114-60-00)

1
Out of stock

19

WASHER, CAP

207-23112-00-00

—

$21.37

In stock

20

BOLT, CAP

(337-23111-60-00)

1
Out of stock

21

UNDER BRACKET

(337-23340-60-33)

1
Out of stock

22

HOLDER, CABLE 1

(183-23318-00-00)

1
Out of stock

23

BOLT 1

122-23346-02-00

—

$6.25

In stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

25

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

26

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

27

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock

28

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

30

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
