1972 Yamaha CS5 (CS5) Cylinder - Crankcase Diagram

← All diagrams

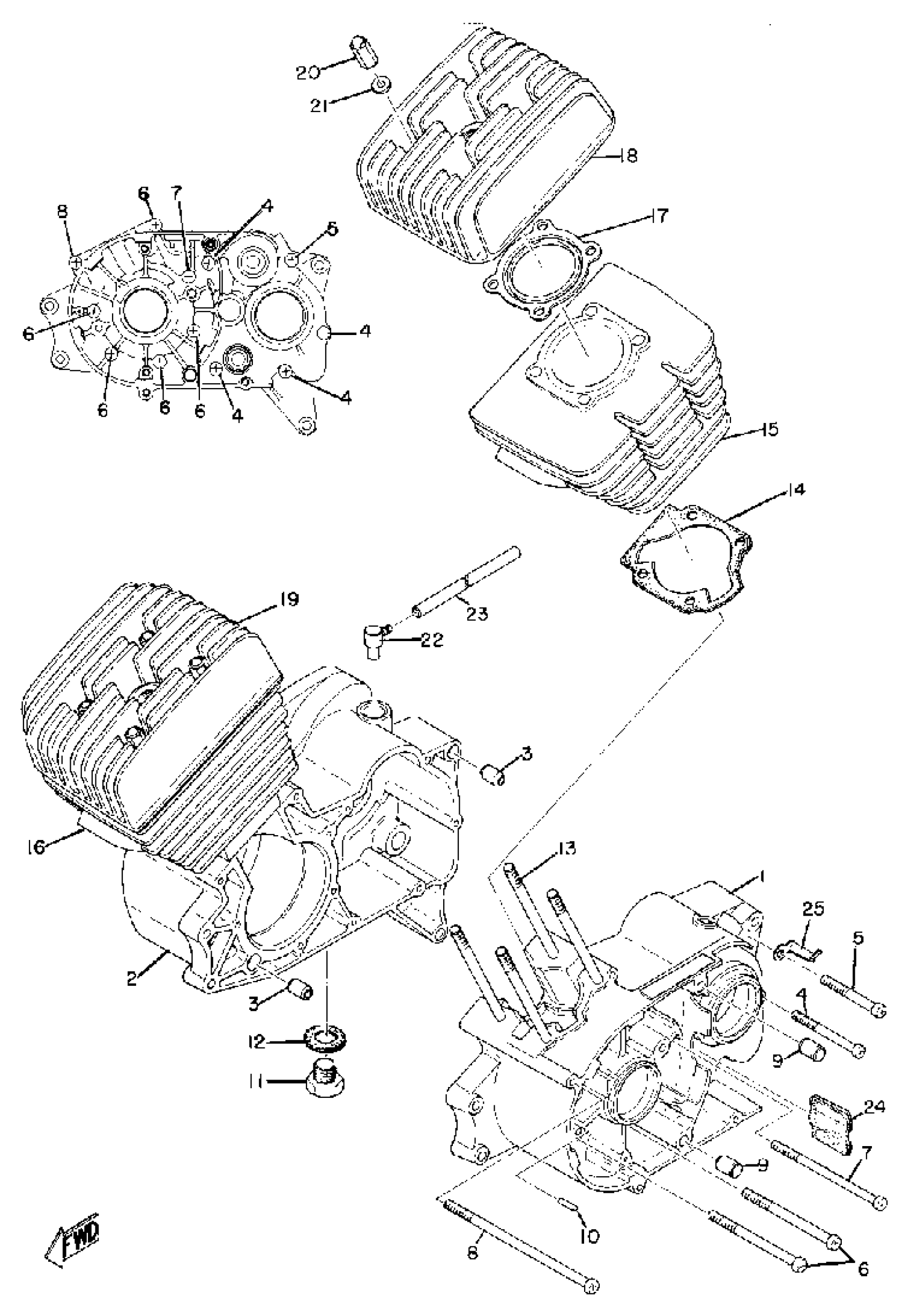

Find the part on the Cylinder - Crankcase diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Cylinder - Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(237-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(237-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

5

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

6

SCREW, PAN

98507-06085-00

1

$5.17

In stock

7

SCREW, PAN

98507-06100-00

1

$6.80

In stock

8

SCREW, PAN HEAD

98517-06140-00

1
Out of stock

9

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

10

PIN, DOWEL

93603-14026-00

1
Out of stock

11

1

$6.71

In stock

12

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

13

BOLT, STUD (174-11361-00)

90116-07033-00

1
Out of stock

14

GASKET, CYLINDER

174-11351-01-00

1
Out of stock

15

CYLINDER 1

(337-11311-00-00)

1
Out of stock

16

CYLINDER 2

(337-11321-00-00)

1
Out of stock

17

GASKET, CYLINDER HEAD 1

273-11181-00-00

1
Out of stock

18

HEAD, CYLINDER 1

(337-11111-00-00)

1
Out of stock

19

HEAD, CYLINDER 2

(337-11121-00-00)

1
Out of stock

20

NUT, CROWN (166-11171-60)

90176-07003-00

1
Out of stock

21

WASHER, PLATE

90201-07077-00

1
Out of stock

22

BREATHER

583-15371-00-00

—
Out of stock

23

HOSE(7EG)

90446-07241-00

—

$7.42

In stock

24

GROMMET

(241-15357-01-00)

1
Out of stock

25

CLAMP

(90465-08046-00)

1
Out of stock
