1972 Yamaha CS5 (CS5) Crank - Piston Diagram

← All diagrams

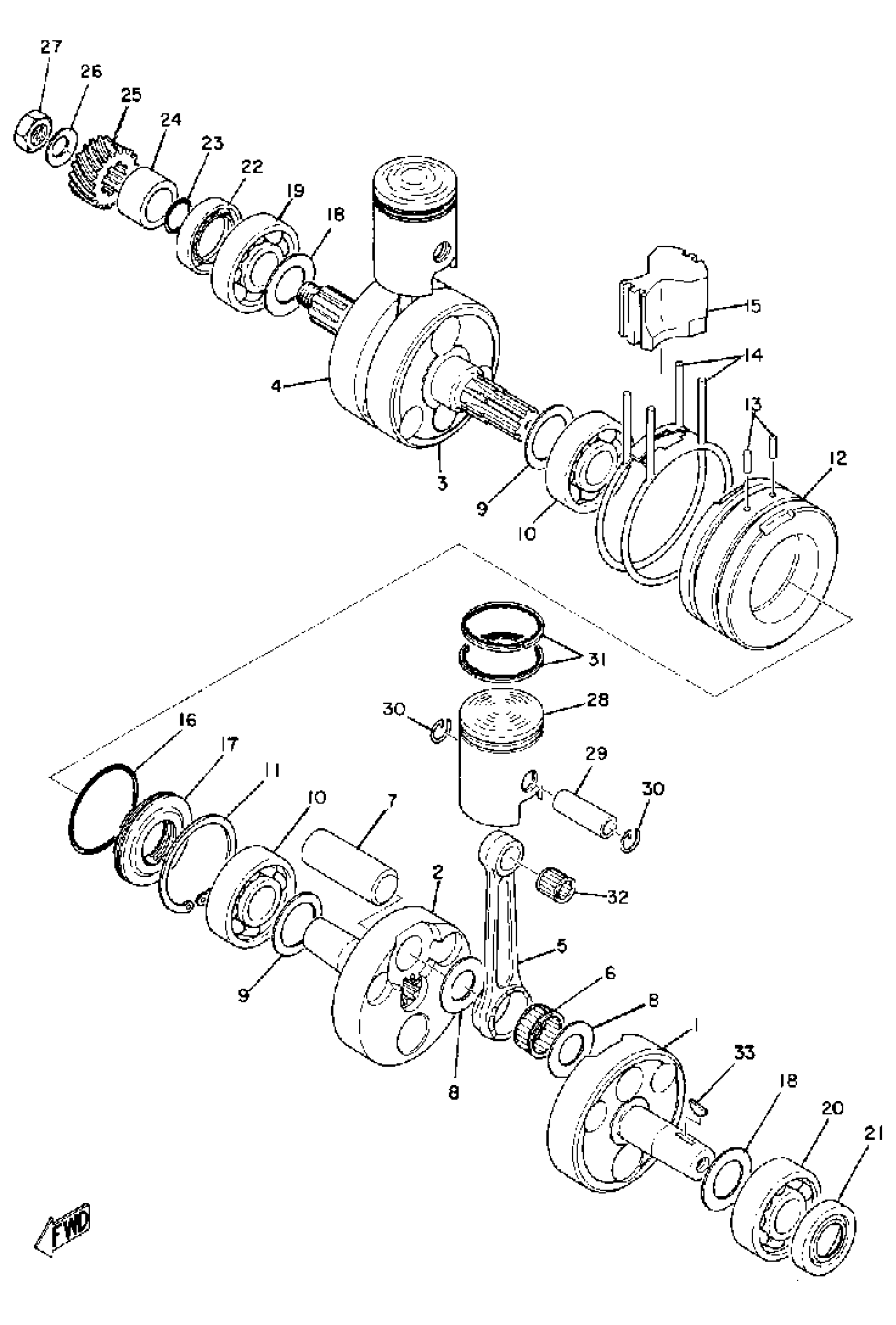

Find the part on the Crank - Piston diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(174-11400-02-00)

1
Out of stock

1

CRANK 1

(174-11412-02-00)

1
Out of stock

2

CRANK 2

(174-11422-02-00)

1
Out of stock

3

CRANK 2 (L)

(174-11432-01-00)

1
Out of stock

4

CRANK 4

(174-11442-01-00)

1
Out of stock

5

ROD, CONNECTING

50W-11651-00-00

1

$141.78

In stock

6

BRG,CYL-CAL ROLLER 13G TM

93310-42012-00

1
Out of stock

7

PIN, CRANK

2Y1-11681-00-00

—
Out of stock

8

WASHER, CRANK PIN (1H9)

90209-20159-00

1

$4.15

In stock

9

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

9

SHIM, CRANK 1

132-11561-00-05

1
Out of stock

10

1

$35.25

In stock

11

. CIRCLIP

93450-52010-00

1
Out of stock

12

COVER, CRANK

(174-11511-01-00)

1
Out of stock

13

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

14

SEAL, CRANK COVER

(174-11512-02-00)

1
Out of stock

15

METAL, FILLER

(174-11541-01-00)

1
Out of stock

16

O-RING

93210-46044-00

—

$5.86

In stock

17

SEAL, LABYRINTH 1

(174-11515-00-00)

1
Out of stock

18

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

18

SHIM, CRANK 1

132-11561-00-05

1
Out of stock

19

BEARING (8R9)

93306-30536-00

—

$29.83

In stock

20

1

$35.25

In stock

21

OIL SEAL(4BA)

93102-20447-00

—
Out of stock

22

OIL SEAL, SW-TYPE

93103-32031-00

1
Out of stock

23

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

24

COLLAR

(90387-20499-00)

1
Out of stock

25

GEAR, PRI DRIVE

(174-16111-00-00)

1
Out of stock

26

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

27

NUT, HEXAGON 1371637700

90170-12060-00

—

$8.29

In stock

28

PISTON STD

273-11631-60-97

1
Out of stock

28

PISTON 1 O/S 0.25

273-11635-60-00

1
Out of stock

28

PISTON 2 O/S 0.50

273-11636-60-00

1
Out of stock

29

PIN, PISTON

131-11633-00-00

—

$18.28

In stock

30

CIRCLIP 131116340000

93450-15023-00

—

$5.20

In stock

31

PISTON RINGSET STD

273-11601-01-00

1
Out of stock

31

PISTON RINGSET 1ST

273-11601-11-00

1
Out of stock

31

PISTON RINGSET 2ND

273-11601-21-00

1
Out of stock

32

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

—

$25.49

In stock

33

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
