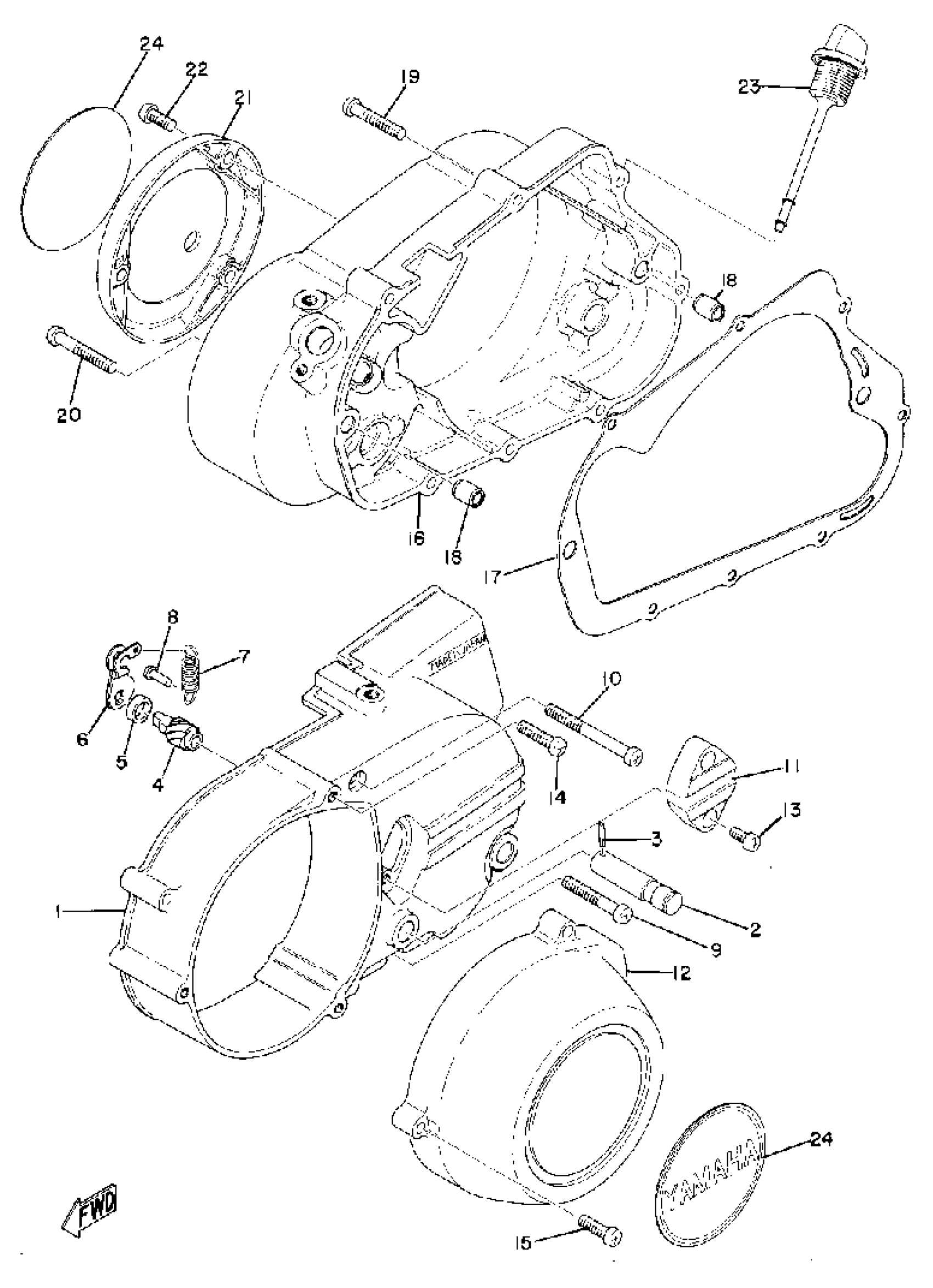

Yamaha CS5 (CS5) 1972 CRANKCASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY LASS''Y, LEFT

337-15410-00-00

Unavailable

2

AXLE, PAWL HOLDER

(307-18188-00-00)

Unavailable

2

SCREW, PAN

98507-06040-00

$3.22

3

PIN, SPRING

(91609-30022-00)

Unavailable

4

SCREW, PUSH

241-16341-01-00

$31.99

5

SEAL 0IL (2V7)

93104-10085-00

$9.49

6

LEVER, PUSH

241-16342-00-00

$6.99

7

SPRING TENSION 132163450000

90506-10019-00

$7.49

8

HOOK, SPRING

132-16346-00-00

$9.99

9

SCREW, PAN

98507-06040-00

$3.22

10

SCREW, PAN

98507-06060-00

$7.99

11

COVER, CAP

(337-15417-00-00)

Unavailable

12

COVER, GENERATOR

(337-15415-00-00)

Unavailable

13

SCREW, PAN

98517-05012-00

$4.73

14

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

15

SCREW, PAN

98517-06020-00

Unavailable

16

COVER, CRANKCASE R

(337-15421-00-00)

Unavailable

17

GASKET,CRANKCASE 2

237-15324-09-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

SCREW, PAN

98507-06035-00

Unavailable

21

COVER, OIL PUMP

(337-15416-00-00)

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

PLUG, OIL

(307-15363-00-00)

Unavailable

24

COVER, GENERATOR R

(307-15425-00-00)

Unavailable
