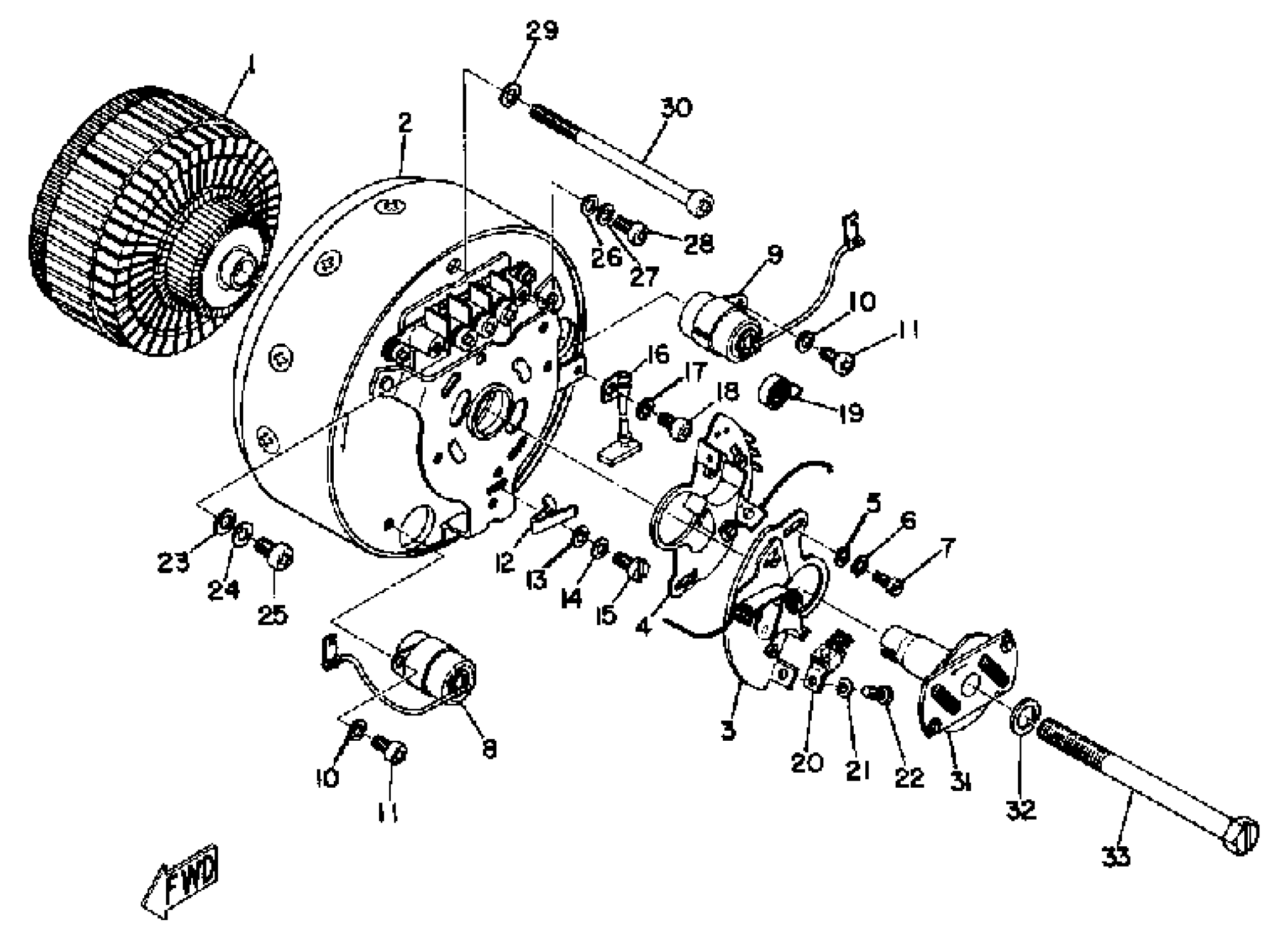

Yamaha CS3C (CS3C) 1970 STARTER GENERATOR (MITSUBISHI) Diagram

#

Description
Price

1

ARMATURE

(173-81155-20-00)

Unavailable

1

STARTER GEN ASSEMBLY

(193-81100-20-00)

Unavailable

2

STATOR ASSEMBLY

(193-81110-20-00)

Unavailable

3

.. CONTACT BRKR ASSEMBLY

168-81221-21-00

Unavailable

4

.. CONTACT BRKR ASSEMBLY

168-81222-21-00

Unavailable

5

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

CONTACT BRKR ASY

164-81221-20-00

Unavailable

9

CONDENSER 2

(165-81126-20-00)

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

PLATE, TIMING

(173-81132-20-00)

Unavailable

13

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

16

.. BRUSH

165-81111-20-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

18

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

19

SPRING, BRUSH

(131-81213-20-00)

Unavailable

20

LUBRICATOR

(168-81231-20-00)

Unavailable

21

WASHER, SPRING

92990-03100-00

Unavailable

22

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

26

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

27

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

28

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

SCREW, STATOR

(193-81135-20-00)

Unavailable

31

GOVERNOR ASSEMBLY

(173-81153-20-00)

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

SCREW, HEXAGON

(90143-07021-00)

Unavailable
