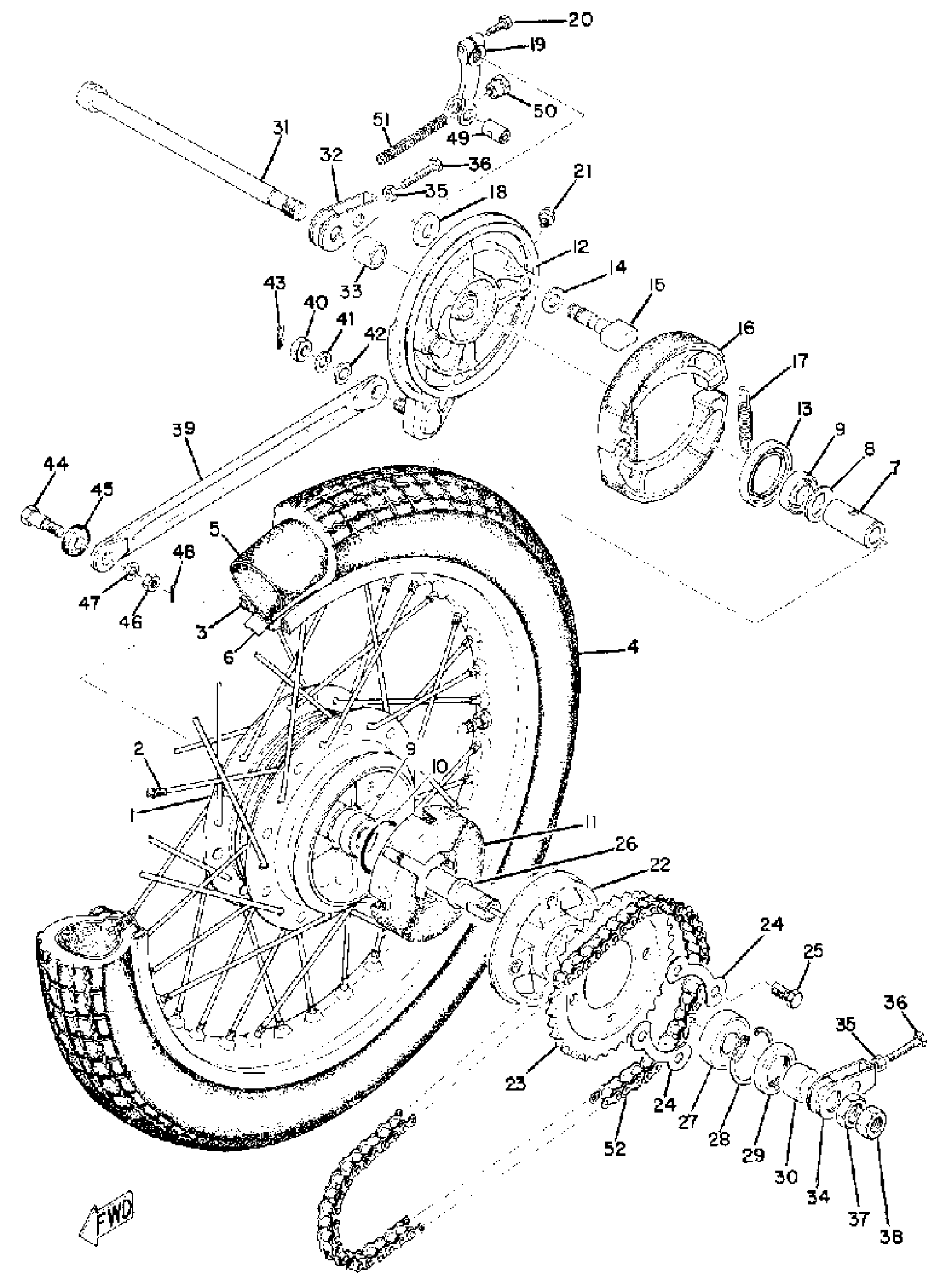

Yamaha CS3C (CS3C) 1970 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(174-25311-00-00)

Unavailable

1

. JOINT, CHAIN

94680-22001-00

Unavailable

2

SPOKE SET, REAR

(141-25304-00-00)

Unavailable

3

RIM 1.60X18

(94416-18013-00)

Unavailable

4

300X18 DUNLOP K-70

(94130-18038-00)

Unavailable

4

300X18 YOKO Y93C

(94130-18310-00)

Unavailable

5

TUBE (5H5)

94227-18195-00

$35.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER 136253170000

90560-15136-00

Unavailable

8

FLANGE, SPACER

146-25116-00-00

$8.99

9

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

10

O-RING (132)

93210-41042-00

$7.49

11

. DAMPER

174-25364-00-00

Unavailable

12

BRAKE SHOE PLATE ASSY

(397-25320-10-00)

Unavailable

13

OIL SEAL, S-TYPE

93101-42018-00

Unavailable

14

SHIM, CAMSHAFT

(136-25153-00-00)

Unavailable

15

CAMSHAFT

(136-25351-01-00)

Unavailable

16

BRAKE SHOE KIT

3GW-W253A-00-00

Unavailable

17

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

18

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

19

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

20

BOLT(3DM)

97024-06020-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

CLUTCH, HUB

(174-25366-01-00)

Unavailable

23

SPROCKET, DRIVN 37T

(174-25437-20-33)

Unavailable

23

SPROCKET,DRIVN 39T

174-25439-20-00

Unavailable

23

SPROCKET, DRIVN 40T

(174-25440-20-33)

Unavailable

24

WASHER

148-25412-00-00

Unavailable

25

BOLT, WASHER BASED

90105-10005-00

Unavailable

26

AXLE, SPROCKET

(174-25387-00-00)

Unavailable

27

BEARING (22K)

93306-20446-00

Unavailable

28

CIRCLIP(48Y)

99009-47500-00

Unavailable

29

OIL SEAL, DD-TYPE

(93106-30008-00)

Unavailable

30

COLLAR

(90387-20160-00)

Unavailable

31

AXLE, WHEEL

(397-25381-00-00)

Unavailable

32

PULLER, CHAIN 2

(174-25389-00-00)

Unavailable

33

COLLAR

(90387-26197-00)

Unavailable

34

PULLER, CHAIN 1

174-25388-00-00

Unavailable

35

NUT(650)

95380-06700-00

Unavailable

36

BOLT HEXAGON 167253790000

90101-06016-00

Unavailable

37

NUT, HEXAGON

90170-20167-00

Unavailable

38

NUT

(95303-14600-00)

Unavailable

39

BAR, TENSION

(174-25371-00-00)

Unavailable

40

NUT (682)

95380-10700-00

Unavailable

41

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

42

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

43

CLIP 136253750000

90468-12006-00

Unavailable

44

BOLT

(90109-08068-00)

Unavailable

45

SPRING, TENSION BAR

(174-25374-00-00)

Unavailable

46

NUT(6L2)

95333-08600-00

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

PIN, COTTER

91490-20025-00

Unavailable

49

PIN 1562723700

90249-12008-00

Unavailable

50

NUT (25K)

90179-06411-00

Unavailable

51

SPRING, (180-27236-00)

90501-10245-00

Unavailable

52

428T 112L

(94514-28112-00)

Unavailable
