1970 Yamaha CS3C (CS3C) Front Wheel Diagram

← All diagrams

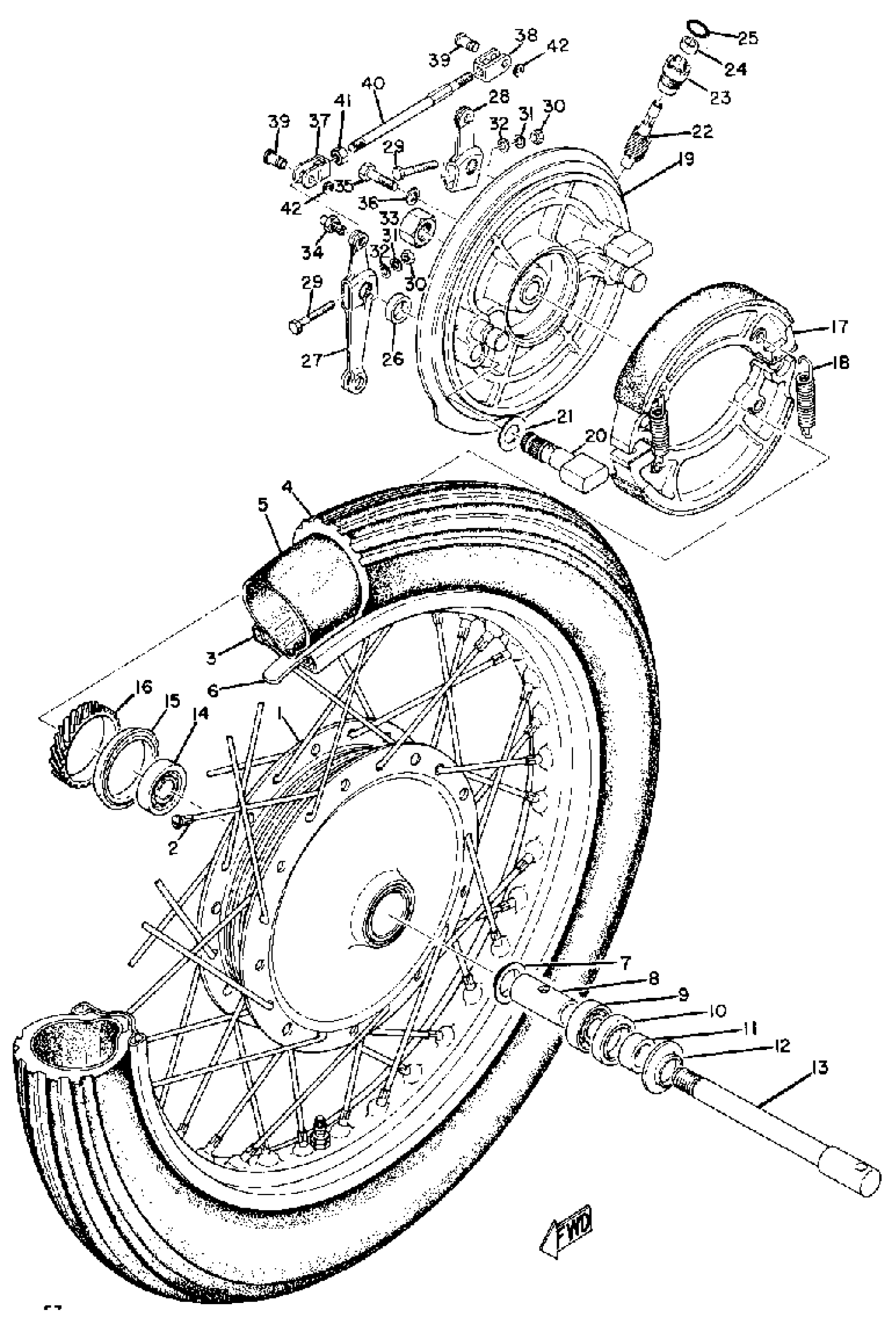

Find the part on the Front Wheel diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CS3C (CS3C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(174-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(174-25104-00-00)

1
Out of stock

3

RIM 1.60X18

(94416-18013-00)

1
Out of stock

4

275X18 YOKO Y506

(94127-18309-00)

1
Out of stock

4

275X18 YOKO Y93C

(94127-18312-00)

1
Out of stock

5

TUBE

(94227-18010-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

8

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

9

BEARING

93306-30212-00

1

$33.35

In stock

10

OIL SEAL, SD-TYPE

(93102-22027-00)

1
Out of stock

11

COLLAR

(90387-15421-00)

1
Out of stock

12

COVER, HUB DUST

(174-25118-00-00)

1
Out of stock

13

AXLE, WHEEL

(141-25181-00-00)

1
Out of stock

14

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

15

OIL SEAL, OS-TYPE

(93107-50003-00)

1
Out of stock

16

GEAR, DRIVE

(174-25135-00-00)

1
Out of stock

17

BRAKESHOE SET-2PCS

168-W2535-00-00

1
Out of stock

18

—

$8.09

In stock

19

PLATE, BRAKE SHOE

(174-25121-00-00)

1
Out of stock

20

CAMSHAFT

(168-25151-00-00)

1
Out of stock

21

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

22

GEAR, METER

(152-25138-00-00)

1
Out of stock

23

BUSHING

109-25136-00-00

—

$8.78

In stock

24

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

25

O-RING (26H)

93210-14579-00

—

$5.69

In stock

26

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

27

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

28

LEVER, CAMSHAFT 2

(168-25156-00-00)

1
Out of stock

29

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

30

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

NUT

(95303-14600-00)

1
Out of stock

34

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

35

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

END, ROD 1

152-25163-00-00

1
Out of stock

38

END, ROD 2

152-25164-00-00

1
Out of stock

39

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

40

ROD, CONNECTING

(152-25161-00-00)

1
Out of stock

41

NUT(650)

95380-06700-00

—

$6.17

In stock

42

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock
