1970 Yamaha CS3C (CS3C) Front Fork & Front Fender Diagram

← All diagrams

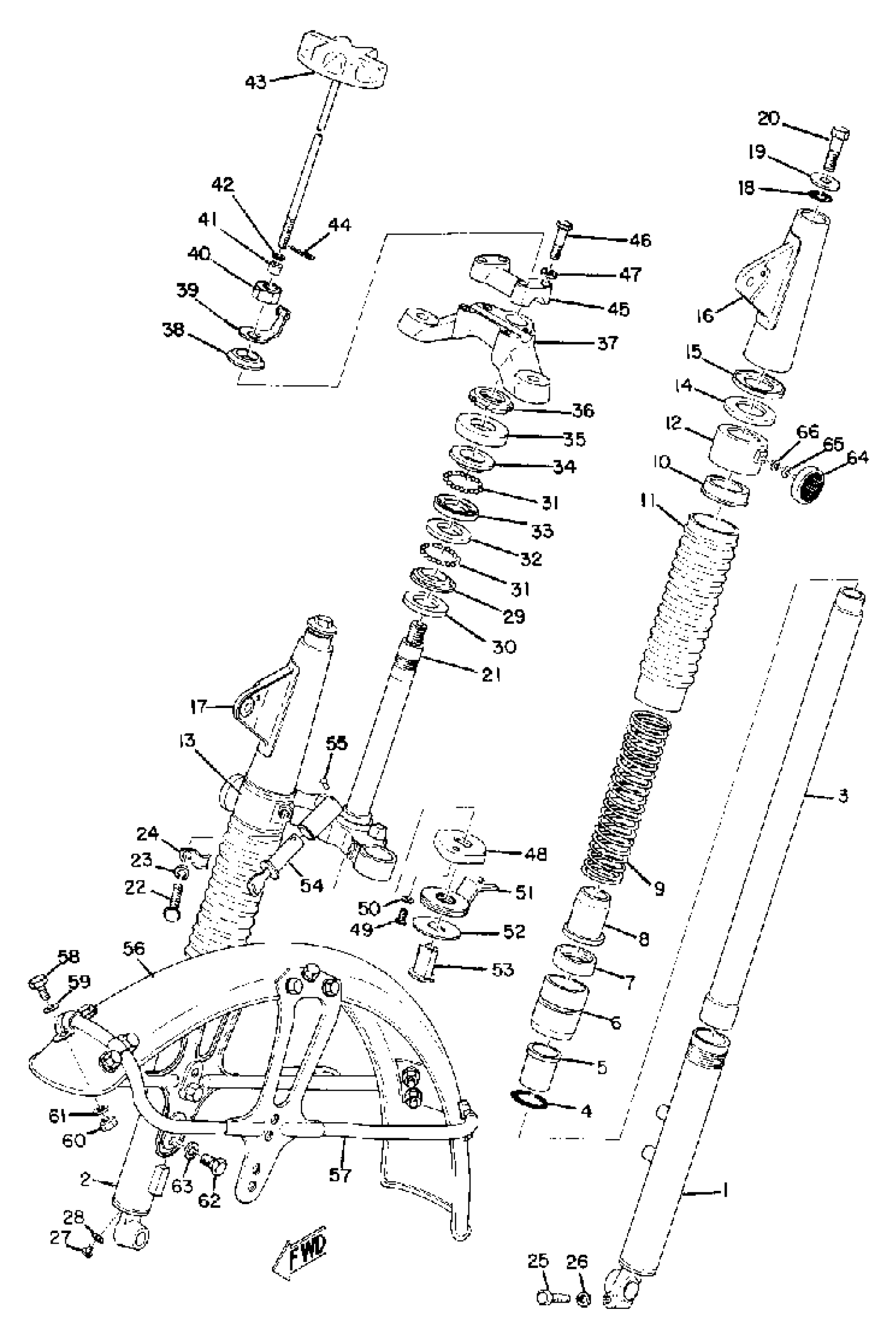

Find the part on the Front Fork & Front Fender diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CS3C (CS3C) Front Fork & Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(174-23126-00-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(238-23100-60-64)

1
Out of stock

1

FRONT FORK ASSEMBLY

(293-23100-60-34)

1
Out of stock

2

TUBE, OUTER 2

(174-23136-00-00)

1
Out of stock

3

TUBE, INNER 1

(237-23124-00-00)

1
Out of stock

4

. O-RING

137-23147-00-00

1
Out of stock

5

. METAL, SLIDE 1

(137-23125-01-00)

1
Out of stock

6

OUTER NUT

(193-23150-40-00)

1
Out of stock

7

OIL SEAL

137-23145-01-00

1

$38.06

In stock

8

. SEAT, SPRING LOWER

(137-23143-00-00)

1
Out of stock

9

SPRING, FRONT FORK

(174-23141-00-00)

1
Out of stock

10

SEAT, SPRING UPPER

(193-23142-40-00)

1
Out of stock

11

BOOT, FRONT FORK

(193-23191-40-00)

1
Out of stock

12

COVER, OUTER 1

(238-23122-60-00)

1
Out of stock

12

COVER, OUTER 1

(293-23122-60-00)

1
Out of stock

13

COVER, OUTER 2

(238-23132-60-00)

1
Out of stock

13

COVER, OUTER 2

(293-23132-60-00)

1
Out of stock

14

GASKET

(193-23163-00-00)

1
Out of stock

15

GUIDE, COVER LOWER

(174-23116-00-00)

1
Out of stock

16

COVER, UPPER 1

(293-23121-60-34)

1
Out of stock

16

COVER, UPPER 1

(293-23121-60-64)

1
Out of stock

17

COVER, UPPER 2

(237-23131-00-64)

1
Out of stock

17

COVER, UPPER 2

(293-23131-60-34)

1
Out of stock

18

. GASKET

(137-23114-00-00)

1
Out of stock

19

. WASHER, CAP

(137-23112-00-00)

1
Out of stock

20

. BOLT, CAP

(137-23111-00-00)

1
Out of stock

21

UNDER BRACKET

(237-23340-00-33)

1
Out of stock

22

BOLT 1

122-23346-02-00

—

$6.25

In stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

24

HOLDER, CABLE 1

(183-23318-00-00)

1
Out of stock

25

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

28

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

29

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

30

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

31

BALL

93501-04011-00

—
Out of stock

32

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

33

RACE, BALL 1

4FP-F3411-20-00

—

$8.70

In stock

34

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

35

COVER, BALL RACE

136-23415-00-00

—

$7.71

In stock

36

NUT

90179-25004-00

—

$20.78

In stock

37

CROWN, HANDLE

(174-23435-00-00)

1
Out of stock

38

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

39

SPRING

(246-23428-00-00)

1
Out of stock

40

NUT (95301-16600)

95303-16600-00

1
Out of stock

41

WASHER, PLATE 1412342700

90202-06008-00

—

$3.91

In stock

42

WASHER, PLATE

90201-06061-00

1
Out of stock

43

SHAFT, DAMPER

(183-23419-00-00)

1
Out of stock

44

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

45

HOLDER, HANDLE UPR

(174-23441-00-00)

1
Out of stock

46

BOLT

97013-08035-00

—

$4.80

In stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

48

PLATE, DAMPER 1

(174-23421-00-00)

1
Out of stock

49

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

50

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

51

PLATE, DAMPER 2

(174-23422-00-00)

1
Out of stock

52

DAMPER, FRICTION

(174-23425-00-00)

1
Out of stock

53

NUT, SPEC''L SHAPE

(90179-06032-00)

1
Out of stock

54

STEERING LOCK ASSEMBLY

(156-23480-00-00)

1
Out of stock

55

RIVET

(122-23483-00-00)

1
Out of stock

56

FENDER, FRONT

(193-21510-00-93)

1
Out of stock

56

FENDER, FRONT

(242-21510-00-93)

1
Out of stock

57

STAY, FENDER 1

(242-21513-00-00)

1
Out of stock

58

BOLT (661)

97013-06012-00

—

$4.71

In stock

59

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

60

NUT(650)

95380-06700-00

—

$6.17

In stock

61

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

62

BOLT(62E)

97013-08012-00

—

$2.48

In stock

63

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

64

REFLECTOR, FRONT 1

(233-85111-00-00)

1
Out of stock

64

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

65

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

66

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock
