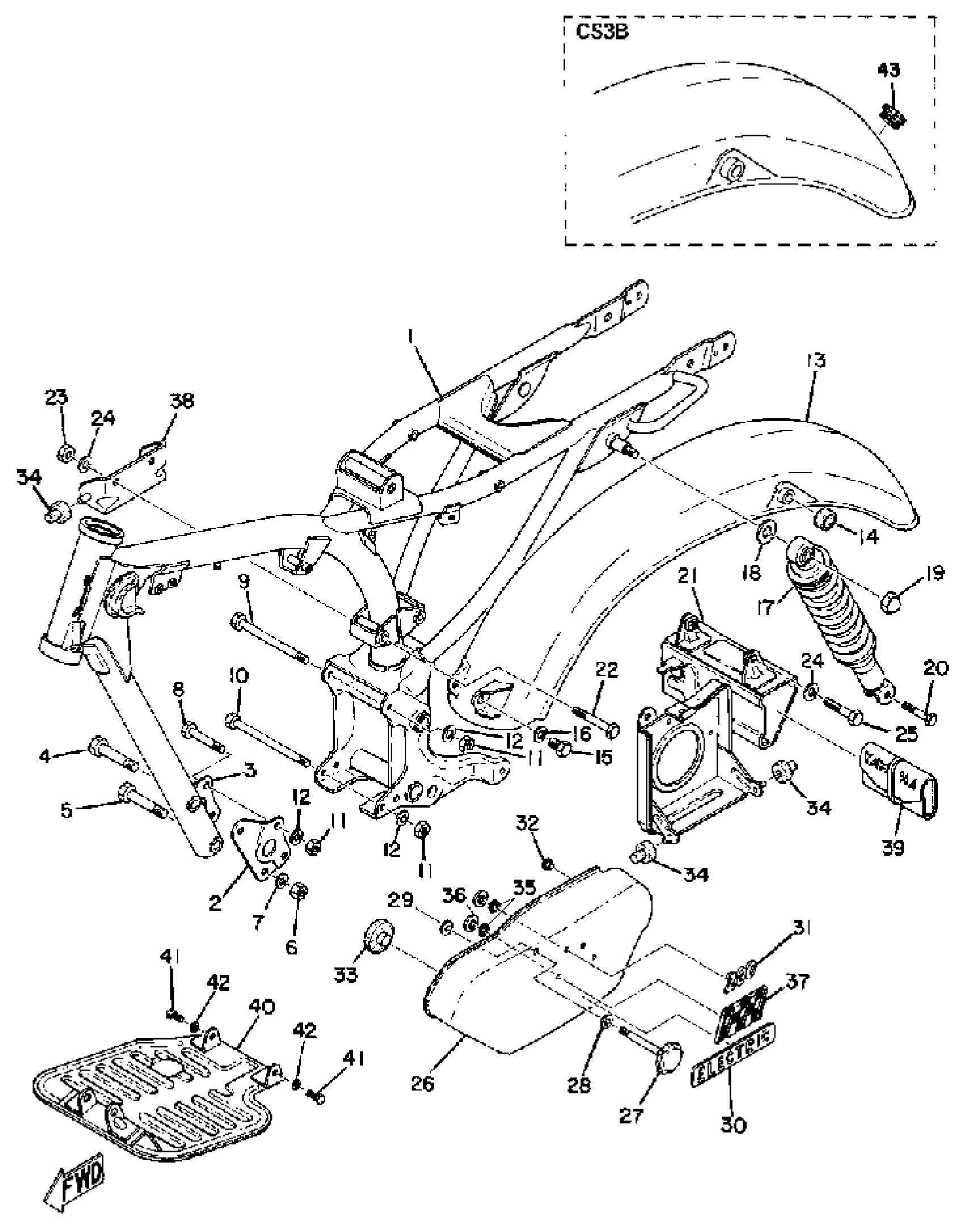

Yamaha CS3C (CS3C) 1970 FRAME, REAR CUSHIION & REAR FENDER Diagram

#

Description
Price

1

FRAME

(237-21110-00-33)

Unavailable

2

STAY, ENGINE 2

(174-21315-00-00)

Unavailable

3

STAY, ENGINE 3

(174-21316-00-00)

Unavailable

4

BOLT

(90101-10070-00)

Unavailable

5

BOLT

(90101-10070-00)

Unavailable

6

NUT(3BM)

95314-10600-00

$2.39

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

BOLT, FLANGE

95817-08060-00

$3.76

9

BOLT

90109-08386-00

Unavailable

9

BOLT, FLANGE

95817-08115-00

$8.49

10

BOLT,HEXAGON

97321-08135-00

Unavailable

11

NUT(6L2)

95333-08600-00

$2.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

FENDER, REAR

(174-21610-00-93)

Unavailable

13

FENDER, REAR

(178-21610-00-93)

Unavailable

14

COLLAR

(90387-18146-00)

Unavailable

15

BOLT, HEXAGON

97013-08016-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

SHK/ABS ASSEMBLY, REAR

(178-22210-20-00)

Unavailable

18

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

19

NUT(3BM)

95314-10600-00

$2.39

20

BOLT, DOME HEAD

(90106-08027-00)

Unavailable

21

BOX

(193-21170-00-33)

Unavailable

22

BOLT

97021-08065-00

Unavailable

23

NUT(6L2)

95333-08600-00

$2.49

24

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

25

BOLT, HEXAGON

97013-08050-00

Unavailable

26

COVER, SIDE 1

(193-21711-60-04)

Unavailable

26

COVER, SIDE 1

(193-21711-60-05)

Unavailable

27

KNOB, SIDE COVER 1

(168-21714-00-00)

Unavailable

28

WASHER, PLATE

(90202-08020-00)

Unavailable

29

NUT, SPEC''L SHAPE

90179-08035-00

Unavailable

30

EMBLEM 7

(118-21787-00-00)

Unavailable

31

EMBLEM 6

(273-21786-00-00)

Unavailable

32

DAMPER, LOCATING 1

(137-21778-00-00)

Unavailable

33

DAMPER

(174-21717-00-00)

Unavailable

34

BUSH, SPEC''L RUBBER

(90385-05017-00)

Unavailable

35

WASHER PLATE 174283160000

90202-04003-00

Unavailable

36

NUT SPRING 116283170100

90183-04005-00

Unavailable

37

EMBLEM 7

(193-21787-60-00)

Unavailable

38

HINGE

(174-21797-00-00)

Unavailable

39

TOOL KIT

(396-28100-10-00)

Unavailable

40

PROTECTOR, ENGINE

(178-21471-02-33)

Unavailable

41

BOLT, HEXAGON

97013-08016-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

43

GROMMET

214-84154-60-00

Unavailable
