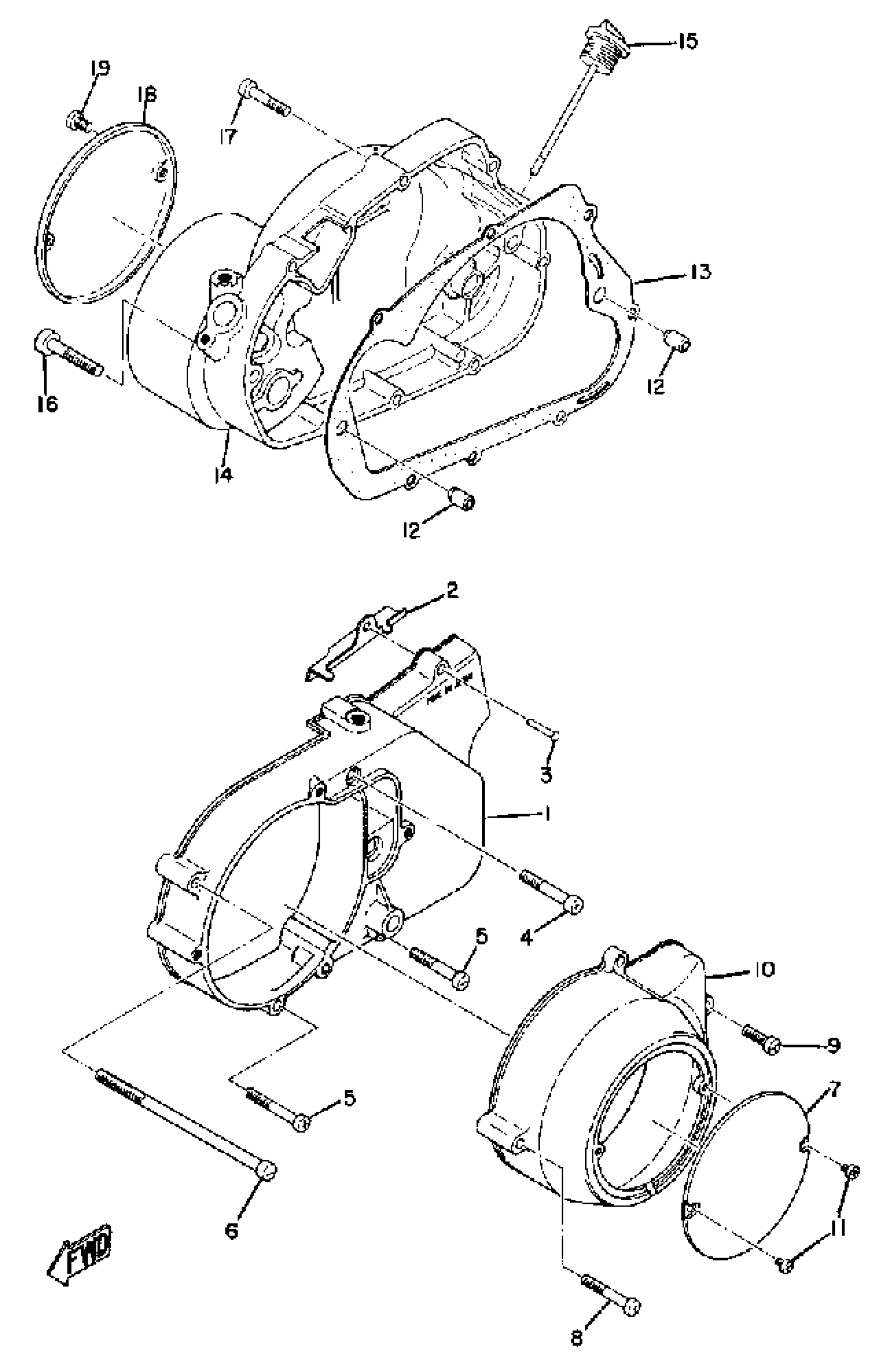

Yamaha CS3C (CS3C) 1970 CRANKCASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY L

237-15410-00-00

Unavailable

2

COVER, CHAIN CASE

(174-15418-01-00)

Unavailable

3

RIVET

(90266-06005-00)

Unavailable

4

SCREW PAN HEAD

98580-06550-00

$8.49

5

SCREW PAN HEAD

98580-06040-00

$8.49

6

SCREW, PAN HEAD

98517-06140-00

Unavailable

7

COVER, GENERATOR (1)

164-15415-00-00

$27.99

8

SCREW PAN HEAD

98580-06040-00

$8.49

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

COVER, GENERATOR R

(237-15425-00-00)

Unavailable

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

GASKET,CRANKCASE 2

237-15324-09-00

Unavailable

14

COVER, CRANKCASE R

(237-15421-00-00)

Unavailable

15

PLUG, OIL

(174-15363-00-00)

Unavailable

16

SCREW PAN HEAD

98580-06040-00

$8.49

17

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

18

COVER, OIL PUMP

(174-15416-00-00)

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable
