CRANK & PISTON

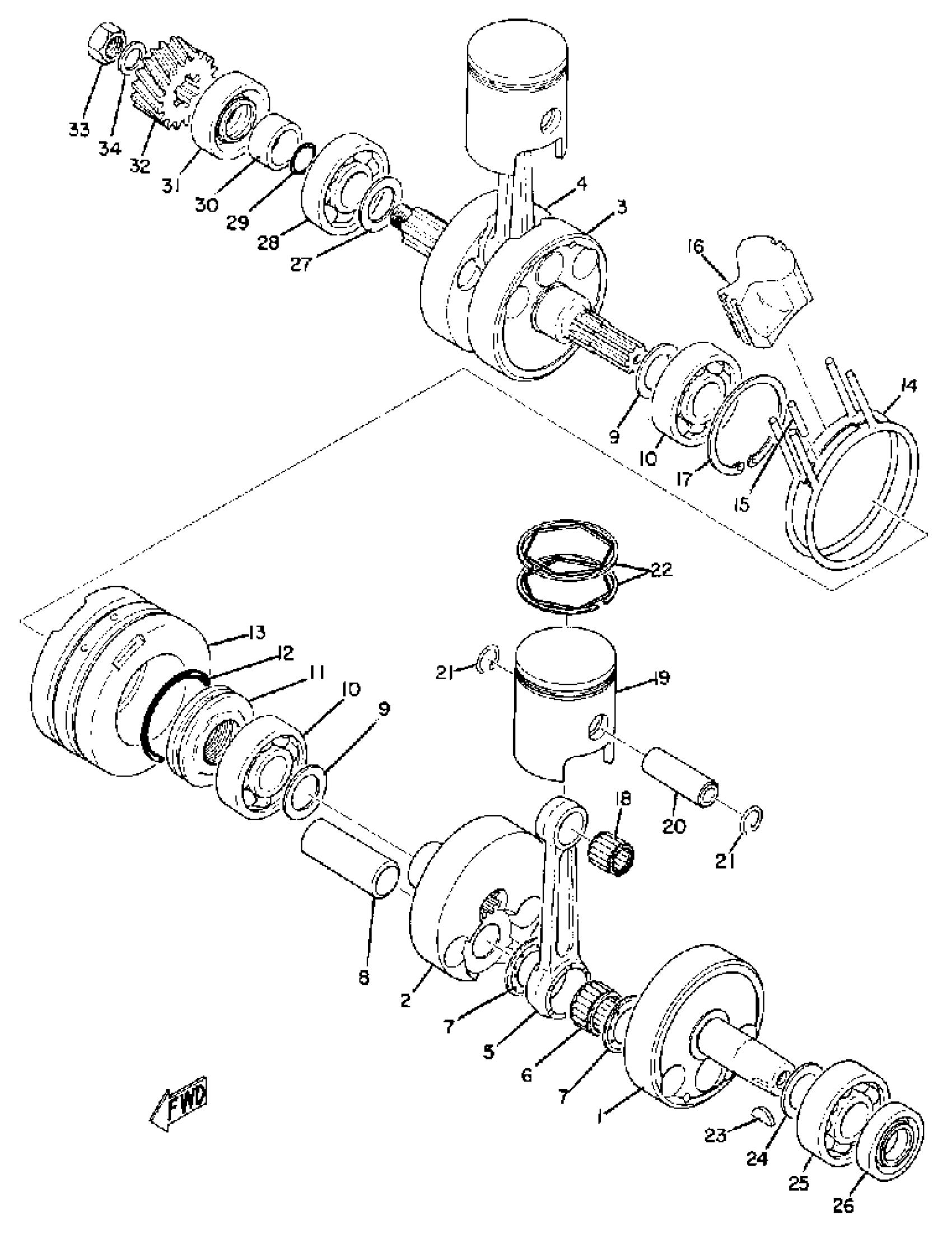

Yamaha CS3C (CS3C) 1970 CRANK & PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(174-11400-02-00)
Unavailable
1
CRANK 1
(174-11412-02-00)
Unavailable
2
CRANK 2
(174-11422-02-00)
Unavailable
3
CRANK 2 (L)
(174-11432-01-00)
Unavailable
4
CRANK 4
(174-11442-01-00)
Unavailable
8
PIN, CRANK
2Y1-11681-00-00
Unavailable
9
. SHIM, CRANK 1
132-11561-00-03
Unavailable
11
SEAL, LABYRINTH 1
(174-11515-00-00)
Unavailable
12
O-RING
93210-46044-00
Unavailable
13
COVER, CRANK
(174-11511-01-00)
Unavailable
14
SEAL, CRANK COVER
(174-11512-02-00)
Unavailable
15
PIN, DOWEL(4SS)
93604-18251-00
Unavailable
16
METAL, FILLER
(174-11541-01-00)
Unavailable
17
. CIRCLIP
93450-52010-00
Unavailable
18
BRG,CYL-CAL ROLLER 7G TM
93310-21403-00
Unavailable
19
PISTON STD
273-11631-60-97
Unavailable
19
PISTON 1 O/S 0.25
273-11635-60-00
Unavailable
19
PISTON 2 O/S 0.50
273-11636-60-00
Unavailable
20
PIN, PISTON
131-11633-00-00
Unavailable
21
CIRCLIP 131116340000
93450-15023-00
Unavailable
22
PISTON RINGSET STD
273-11601-01-00
Unavailable
22
PISTON RINGSET 1ST
273-11601-11-00
Unavailable
22
PISTON RINGSET 2ND
273-11601-21-00
Unavailable
23
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
24
SHIM, CRANK 1
136-11561-00-05
Unavailable
25
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
26
OIL SEAL(4BA)
93102-20447-00
Unavailable
27
SHIM, CRANK 2
(156-11562-00-05)
Unavailable
27
SHIM, CRANK 2
(156-11562-00-07)
Unavailable
28
BEARING (8R9)
93306-30536-00
Unavailable
29
O-RING(3KX)
93210-180A6-00
Unavailable
30
COLLAR
(90387-20499-00)
Unavailable
31
OIL SEAL, SW-TYPE
93103-32031-00
Unavailable
32
GEAR, PRI DRIVE
(174-16111-00-00)
Unavailable
33
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
34
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
