Description

Price

1

SECONDARY SLIDING SHEAVE

85L-17670-01-00

$195.99

2

SHOE, RAMP

85L-17688-01-00

Unavailable

3

SHAFT, SECONDARY

85L-17681-00-00

Unavailable

4

SEAT, SECONDARY SPRING

85L-17684-00-00

Unavailable

5

CIRCLIP (8R4)

93440-25100-00

Unavailable

6

SPRING, TORSION

90508-45763-00

Unavailable

7

COLLAR(85L)

90387-260W3-00

$11.49

8

WASHER, PLATE (35T)

90201-122H1-00

$9.49

9

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

10

KEY, STRAIGHT (8R4)

90282-05047-00

$9.49

11

BEARING(83R)

93306-20582-00

$58.99

12

HOUSING, BEARING

85L-47631-00-00

Unavailable

13

PLATE 3

85L-17691-00-00

Unavailable

14

BOLT, HEXAGON

97017-08025-00

$10.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

CIRCLIP(26H)

99009-52500-00

Unavailable

17

SECONDARY FIXED SHEAVE COMP.

8R4-17660-00-00

Unavailable

18

COLLAR

90387-250V1-00

Unavailable

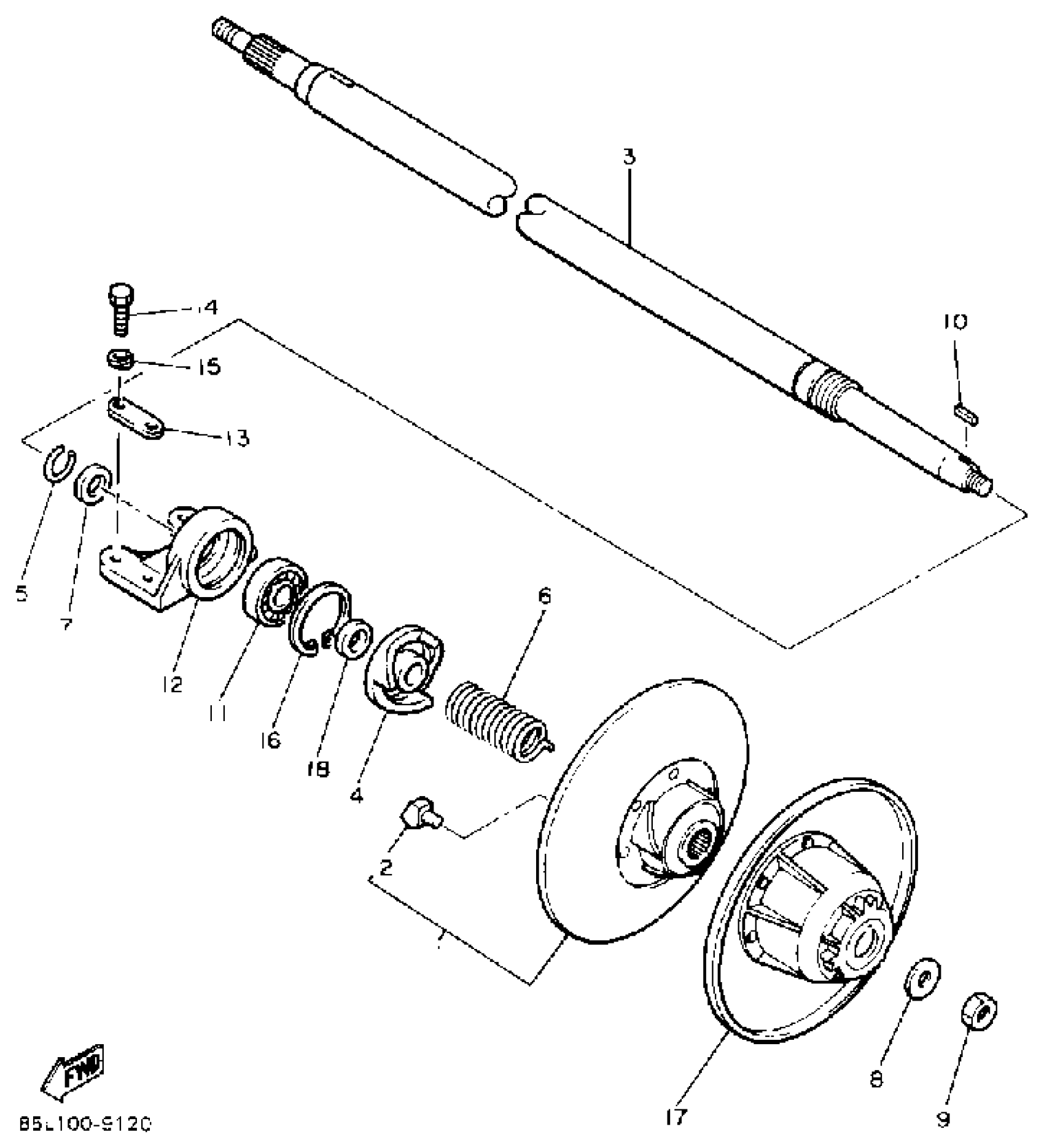

Yamaha CS340P (OVATION) 1990 SECONDARY SHEAVE Diagram

SECONDARY SLIDING SHEAVE

SHOE, RAMP

SHAFT, SECONDARY

SEAT, SECONDARY SPRING

CIRCLIP (8R4)

SPRING, TORSION

COLLAR(85L)

WASHER, PLATE (35T)

NUT, SELF LOCKING (23X)

KEY, STRAIGHT (8R4)

BEARING(83R)

HOUSING, BEARING

PLATE 3

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

CIRCLIP(26H)

SECONDARY FIXED SHEAVE COMP.

COLLAR
